Air Conditioning Panel: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
    1. Connect the connector.
    2. Engage the 4 claws to install the air conditioning control assembly.

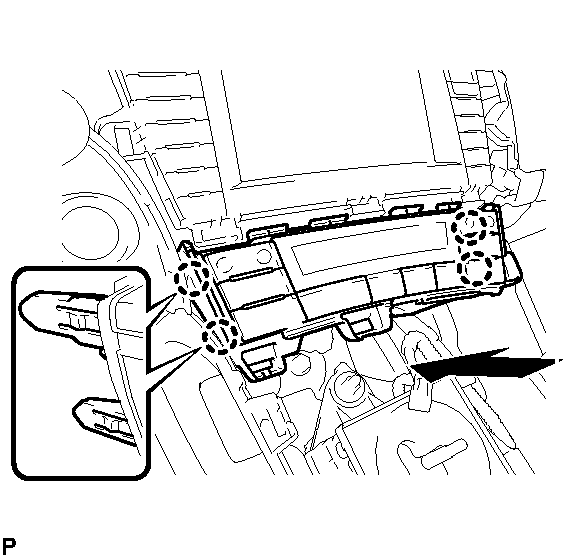

      Fig 1: Identifying Air Conditioning Control Assembly & Claws
      GTY232098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH  . Refer to INSTALLATION - Step 28
  3. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 30
  4. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY  . Refer to INSTALLATION - Step 31
