REMOVE AIR OUTLET CONTROL SERVO MOTOR SUB-ASSEMBLY

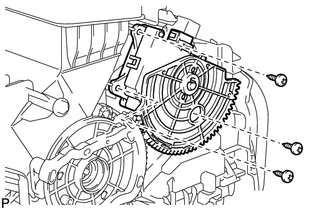

1. Remove the 3 screws and air outlet control servo motor sub-assembly.

  Fig 1: Identifying Air Outlet Control Servo Motor Sub-Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR MIX CONTROL SERVO MOTOR SUB-ASSEMBLY
1. Remove the 3 screws and air mix control servo motor sub-assembly.

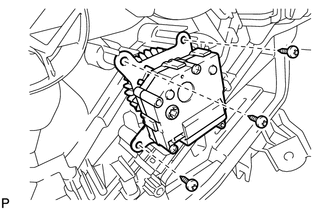

  Fig 2: Identifying Air Mix Control Servo Motor Sub-Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE QUICK HEATER ASSEMBLY See step 2
REMOVE HEATER RADIATOR UNIT SUB-ASSEMBLY
1. Remove the screw and clamp.

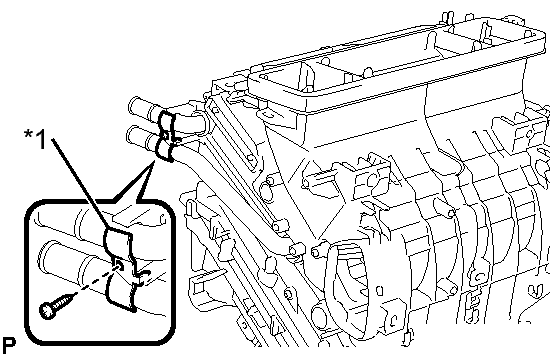

  Fig 3: Identifying Screw & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Clamp

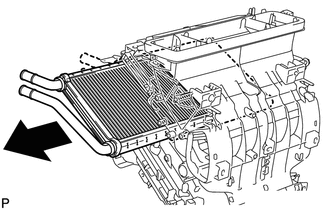

2. Remove the heater radiator unit sub-assembly as shown in the illustration.

  Fig 4: Identifying Heater Radiator Unit Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Prepare a drain pan or cloth in case the cooling water leaks.
REMOVE CONSOLE MOUNTING BRACKET LH
1. Remove the screw and console mounting bracket LH.

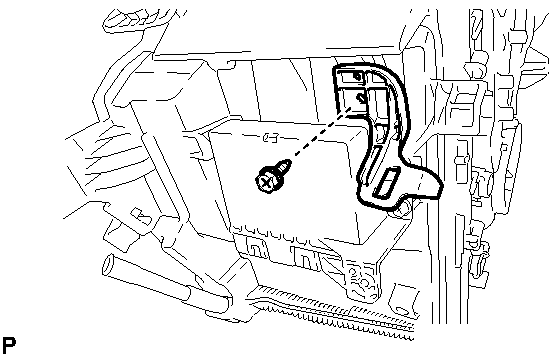

  Fig 5: Identifying Console Mounting Bracket LH & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
1. Remove the screw.

  Fig 6: Identifying Air Conditioning Amplifier Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

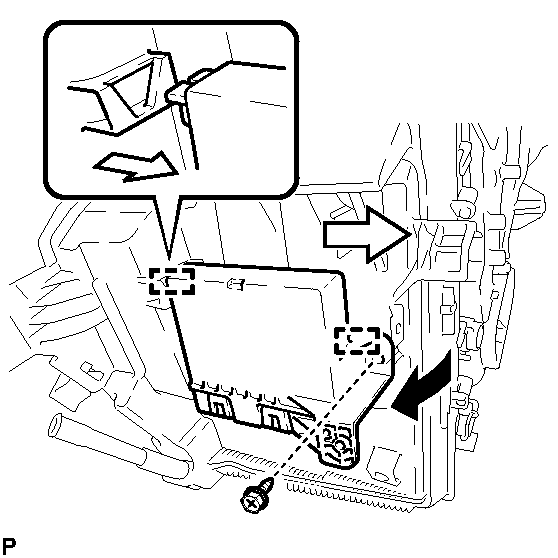

2. Disengage the 2 guides and remove the air conditioning amplifier assembly as shown in the illustration.
REMOVE CONSOLE MOUNTING BRACKET RH

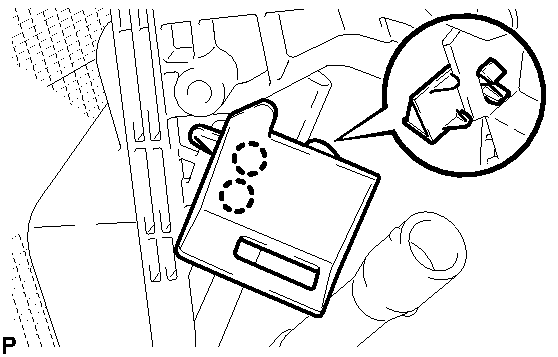

1. Disengage the 2 claws and remove the console mounting bracket RH.

  Fig 7: Identifying Console Mounting Bracket RH & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DRAIN COOLER HOSE
1. Remove the drain cooler hose as shown in the illustration.

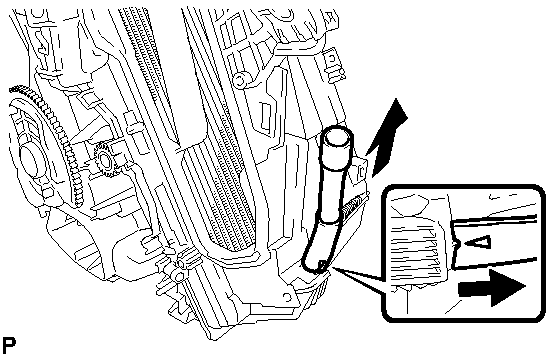

  Fig 8: Identifying Cooler Drain Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COOLER EXPANSION VALVE
1. Using a 4 mm hexagon wrench, remove the 2 hexagon bolts and cooler expansion valve.

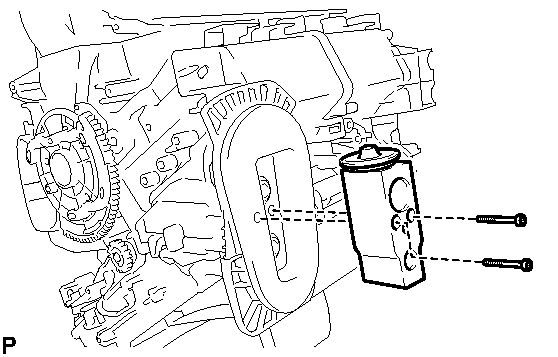

  Fig 9: Identifying Cooler Expansion Valve & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY
1. Remove the packing.

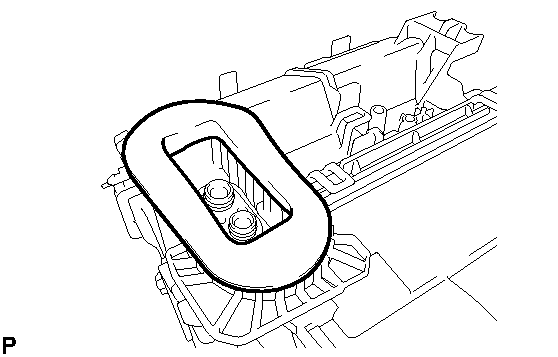

  Fig 10: Identifying No. 1 Cooler Evaporator Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Remove the packing carefully because it will be reused.
2. Remove the 4 screws.

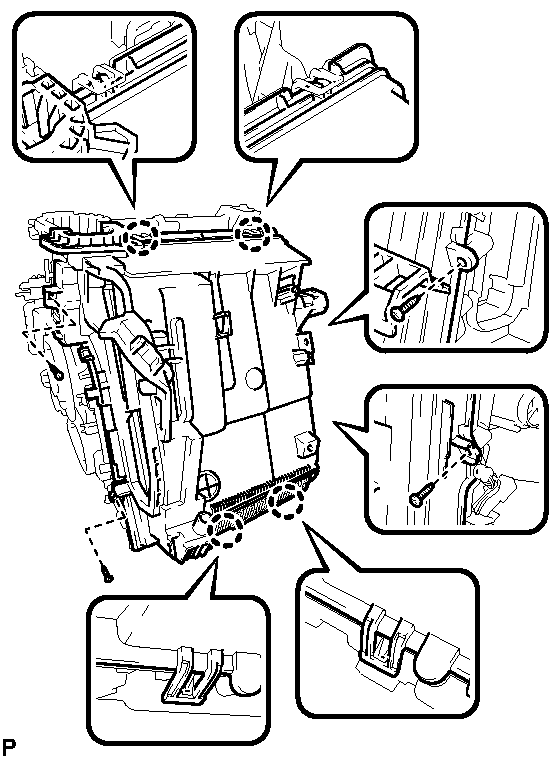

  Fig 11: Identifying Lower Heater Case Screws & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the 4 claws and remove the lower heater case.
4. Disengage the clamp and remove the No. 1 cooler evaporator sub-assembly with the No. 1 cooler thermistor.

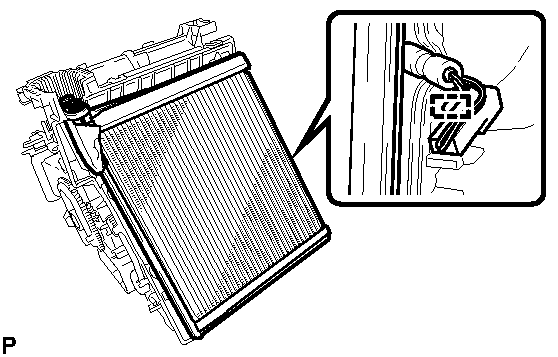

  Fig 12: Identifying No. 1 Cooler Thermistor, Cooler Evaporator Sub-Assembly & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

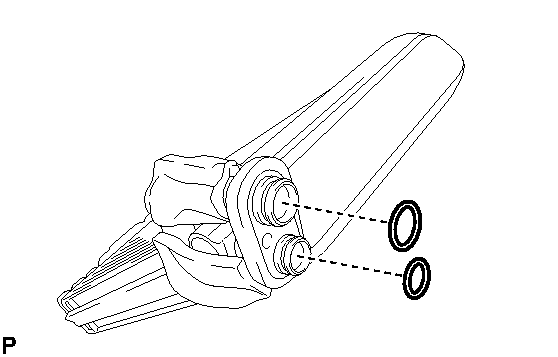

5. Remove the 2 O-rings from the No. 1 cooler evaporator sub-assembly.

  Fig 13: Identifying O-rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 COOLER THERMISTOR See step 4
