Section 39 (Air Conditioning System (Service Information) (Plug-In)): Condenser: Reassembly: Reassembly

WARNING: This page is about a different variant/trim than selected.

INSTALL COOLER DRYER

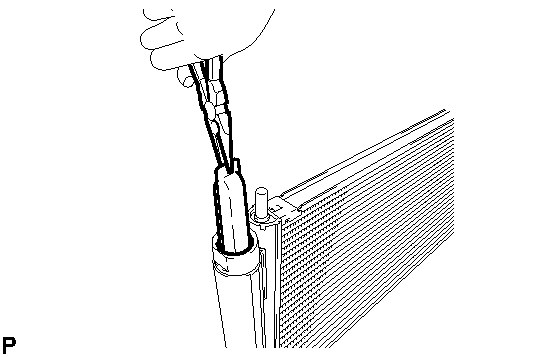

Using pliers, install a new cooler dryer to the modulator.

Fig 1: Removing/Installing Cooler Dryer Using Pliers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

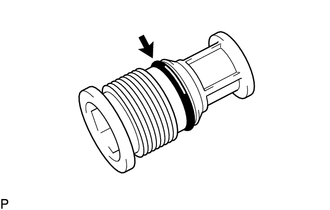

Sufficiently apply compressor oil to a new O-ring and the fitting surfaces of the cap.

Fig 2: Compressor Oil Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Compressor oil

ND-OIL 11 or equivalent

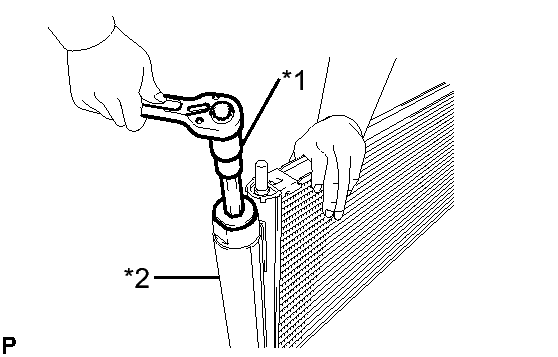

Using a 14 mm straight hexagon wrench, install the cap to the cooler condenser core.

Fig 3: Removing/Installing Cap From Modulator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	14 mm Straight Hexagon Wrench
*2	Modulator

Torque: 2.9 N*m (30 kgf*cm, 26 in.*lbf)

NOTE:

Keep the O-ring and O-ring fitting surfaces clean from dirt or any foreign objects.
Do not use any compressor oil other than ND-OIL 11 or equivalent. If any compressor oil other than ND-OIL 11 or equivalent is used, compressor motor insulation performance may decrease, resulting in a leakage of electric power.

INSTALL NO. 1 COOLER CONDENSER CUSHION

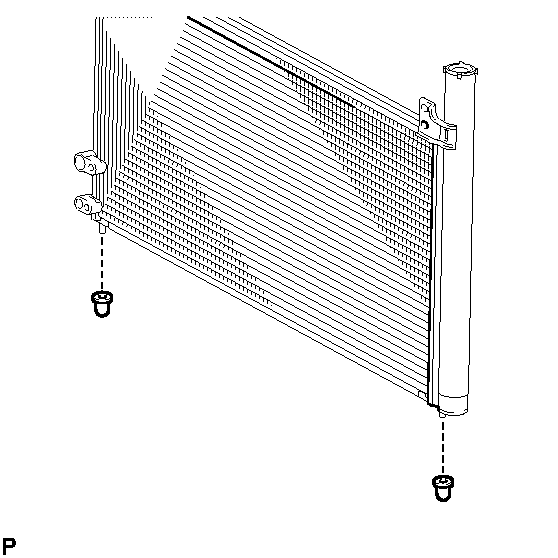

1. Install the 2 No. 1 cooler condenser cushions.

  Fig 4: Identifying No. 1 Cooler Condenser Cushions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
