Battery Smart Unit: Installation: Installation

INSTALL BATTERY SMART UNIT
WARNING:
Be sure to wear insulated gloves and protective goggles.
1. Install the battery smart unit with the 2 bolts.

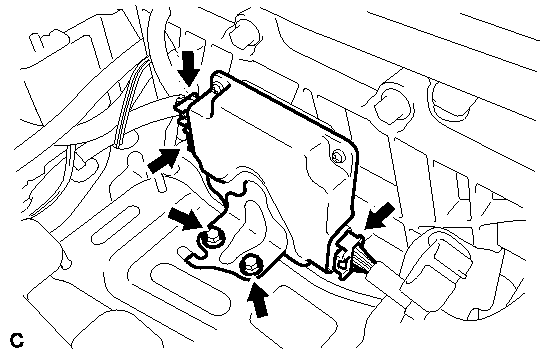

  Fig 1: Identifying Battery Smart Unit Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
2. Connect the 3 connectors.
  NOTE:
  The connectors should be connected securely.
INSTALL HYBRID BATTERY JUNCTION BLOCK
HINT:

Refer to INSTALLATION .
