Smart Key System (For Entry Function) (Diagnostic Codes & Symptom Tests) (Except Plug-In)
>>
SMART KEY SYSTEM (for Entry Function)
>>
DTC B27A8: Open in Outside Luggage Compartment Electrical Key Antenna Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC B27A8: Open in Outside Luggage Compartment Electrical Key Antenna Circuit: Wiring Diagram

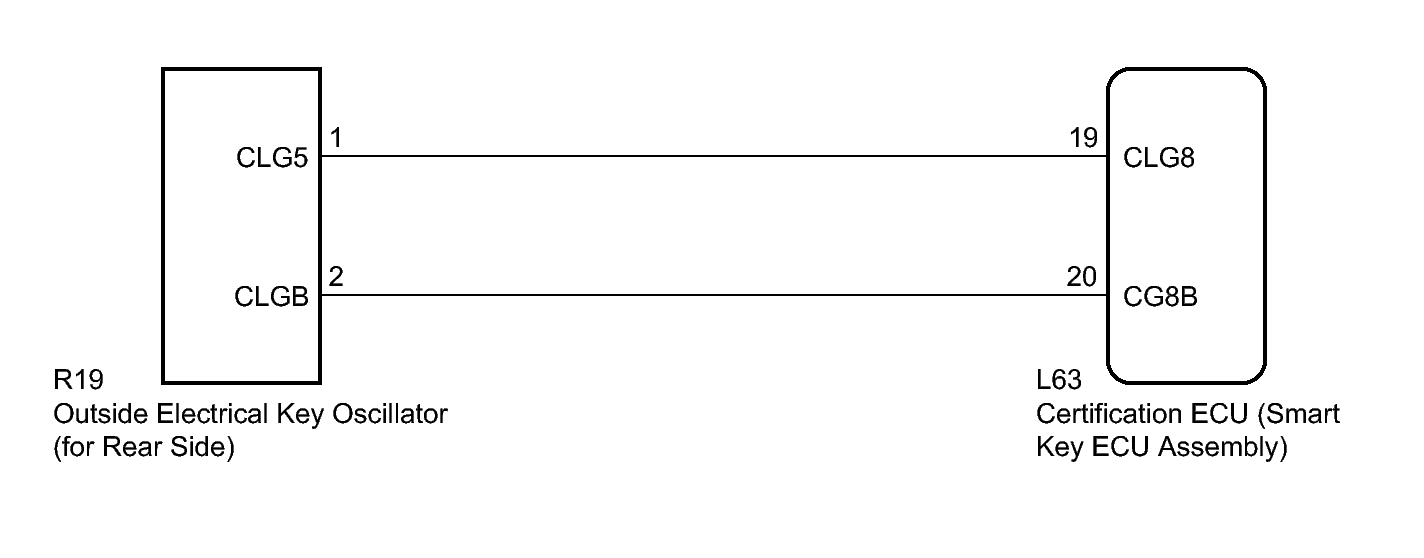

Fig 1: Identifying Outside Luggage Compartment Electrical Key Antenna Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
