Windshield Glass: Components: Illustration

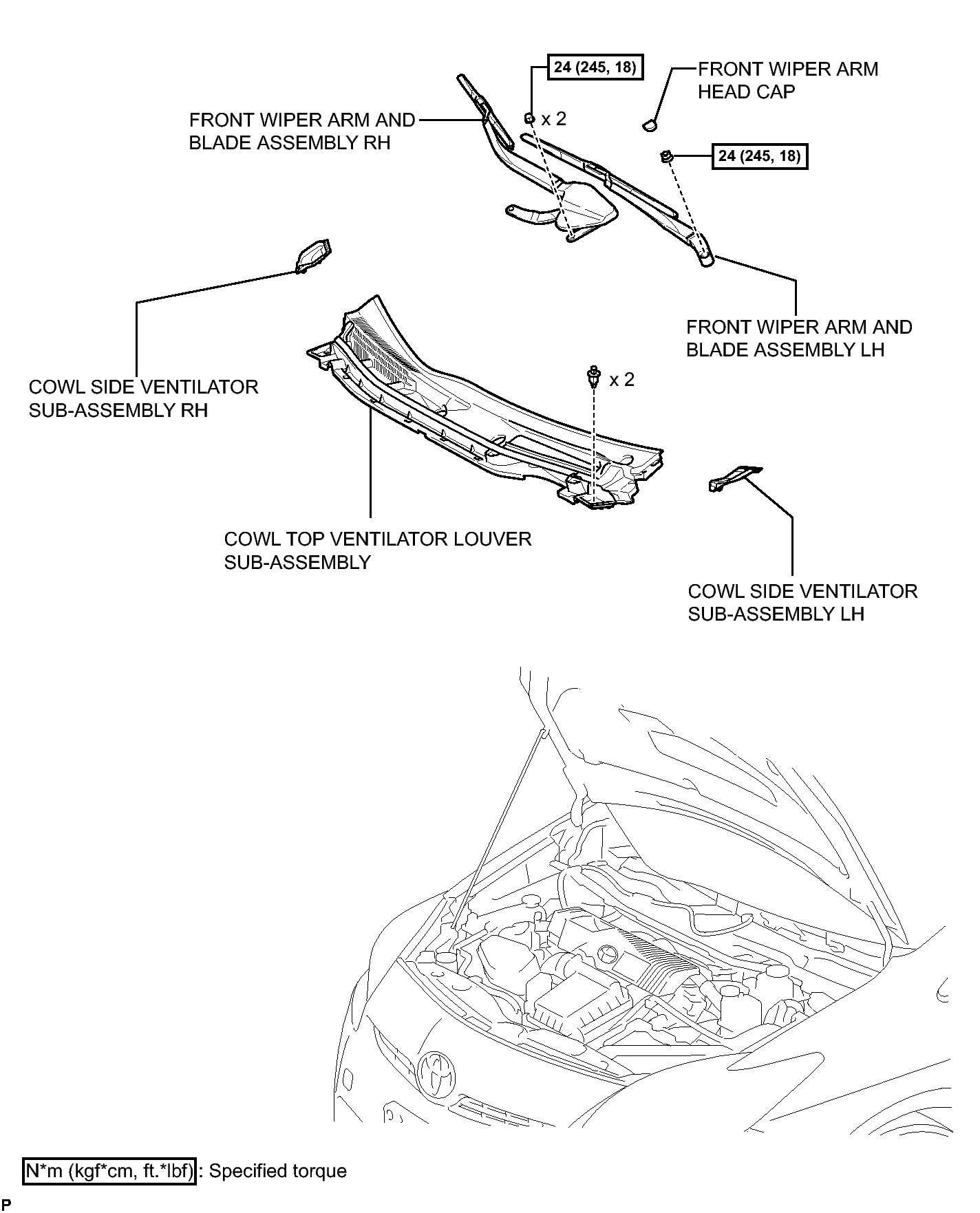

Fig 1: Identifying Windshield Glass Replacement Components With Torque Specifications (1 Of 5)
GTY228599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

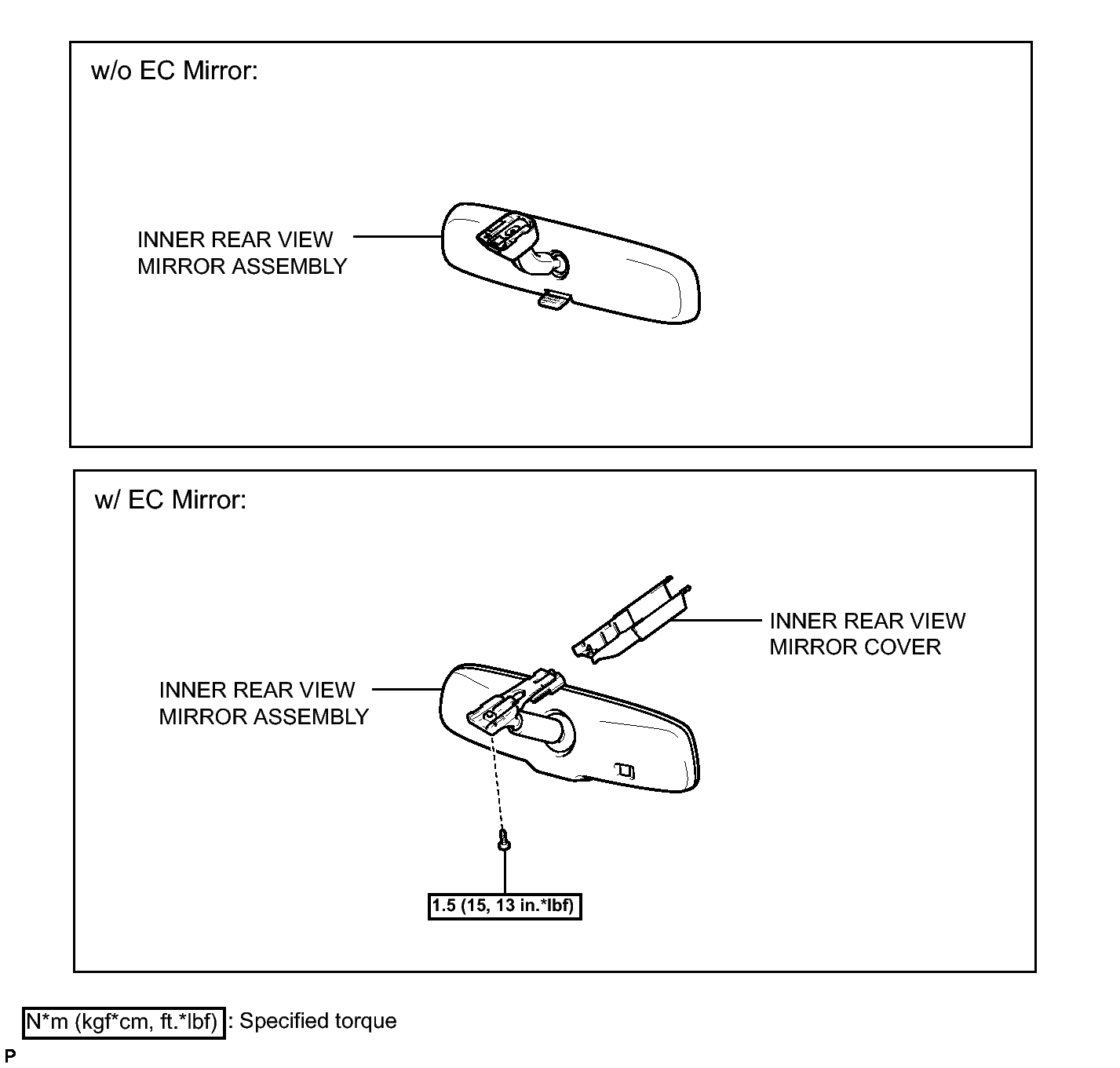

Fig 1: Identifying Windshield Glass Replacement Components With Torque Specifications (2 Of 5)
GTY331782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

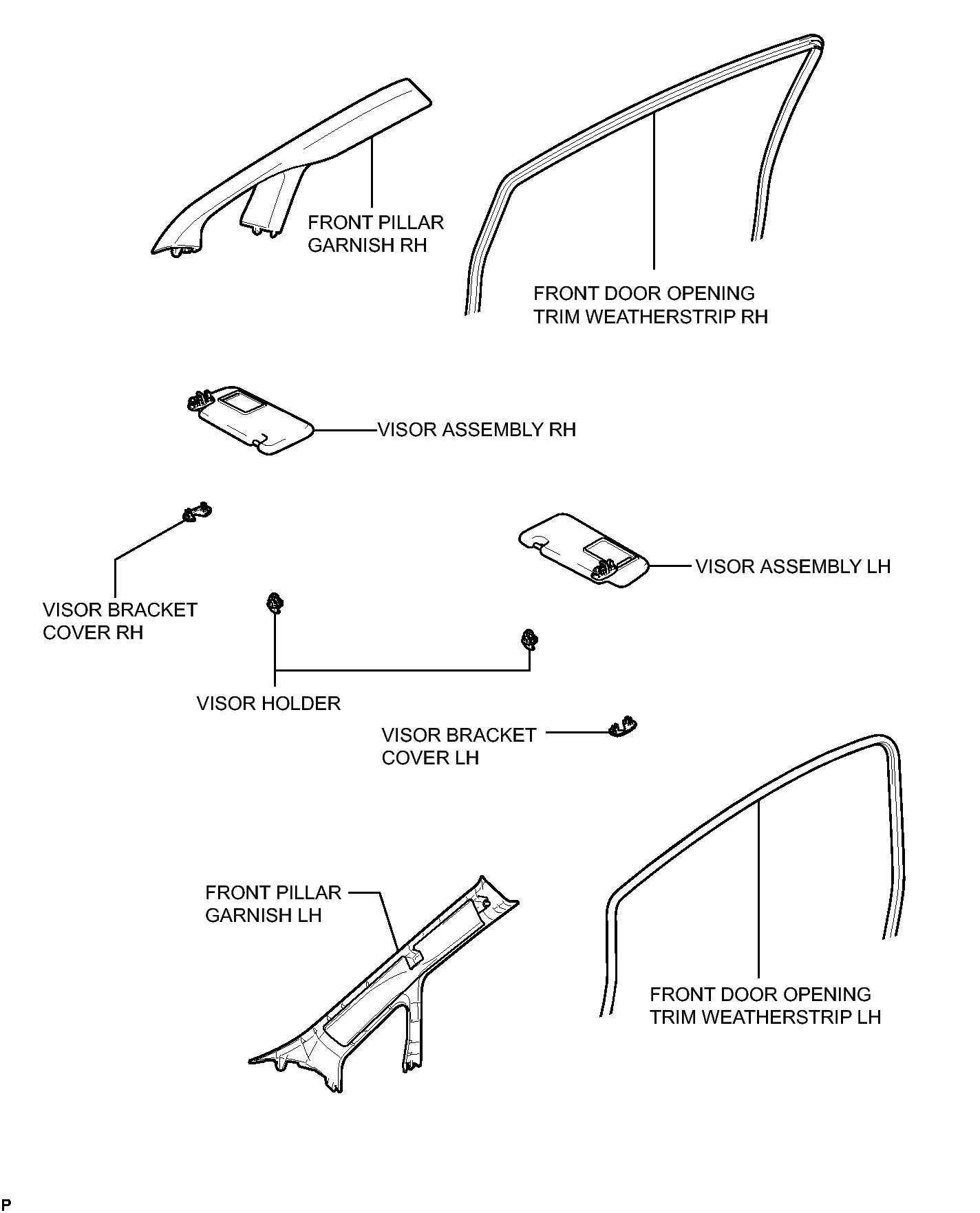

Fig 1: Identifying Windshield Glass Replacement Components (3 Of 5)
GTY219018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

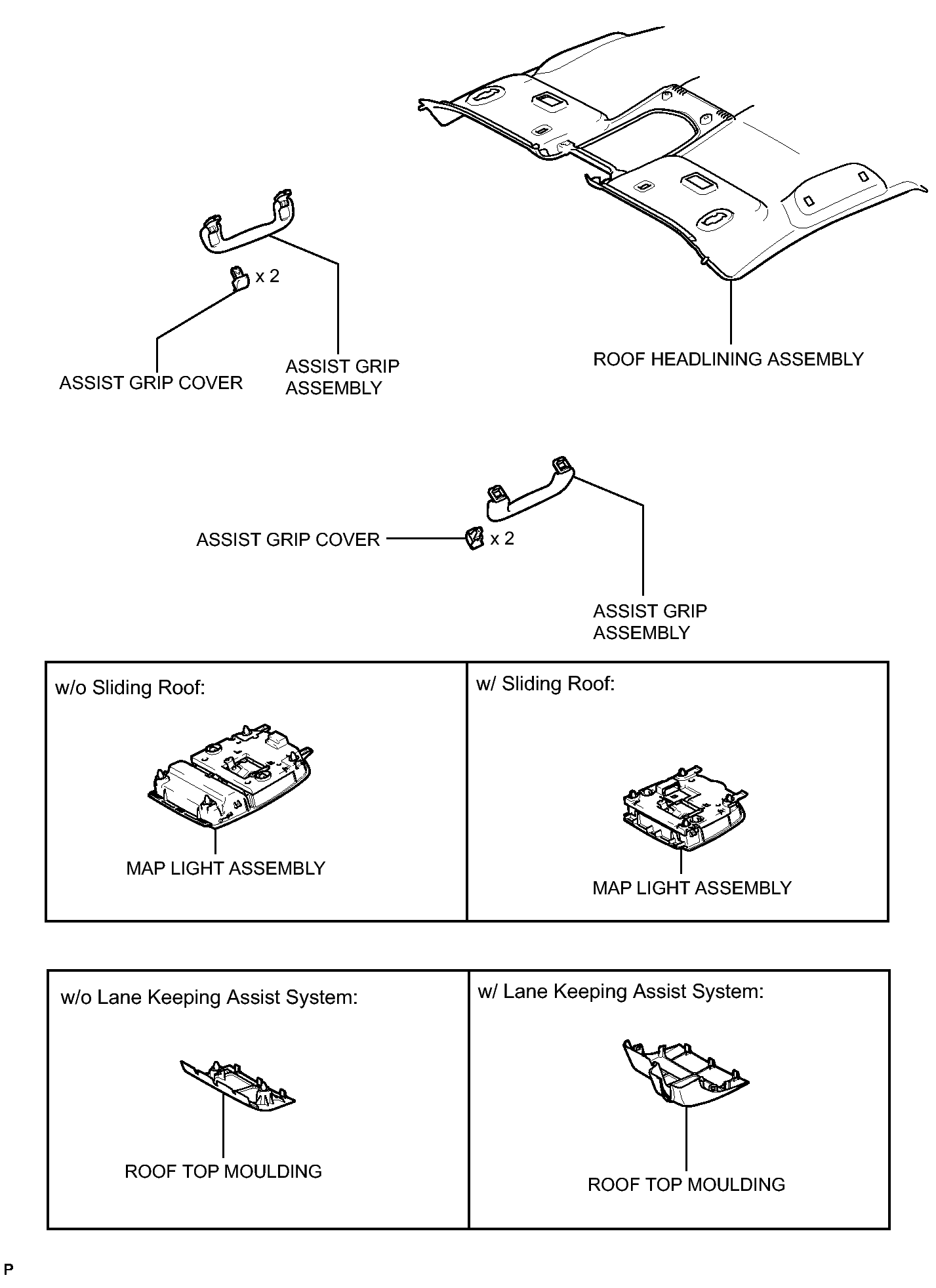

Fig 1: Identifying Windahield Glass Replacement Components (4 Of 5)
GTY233627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

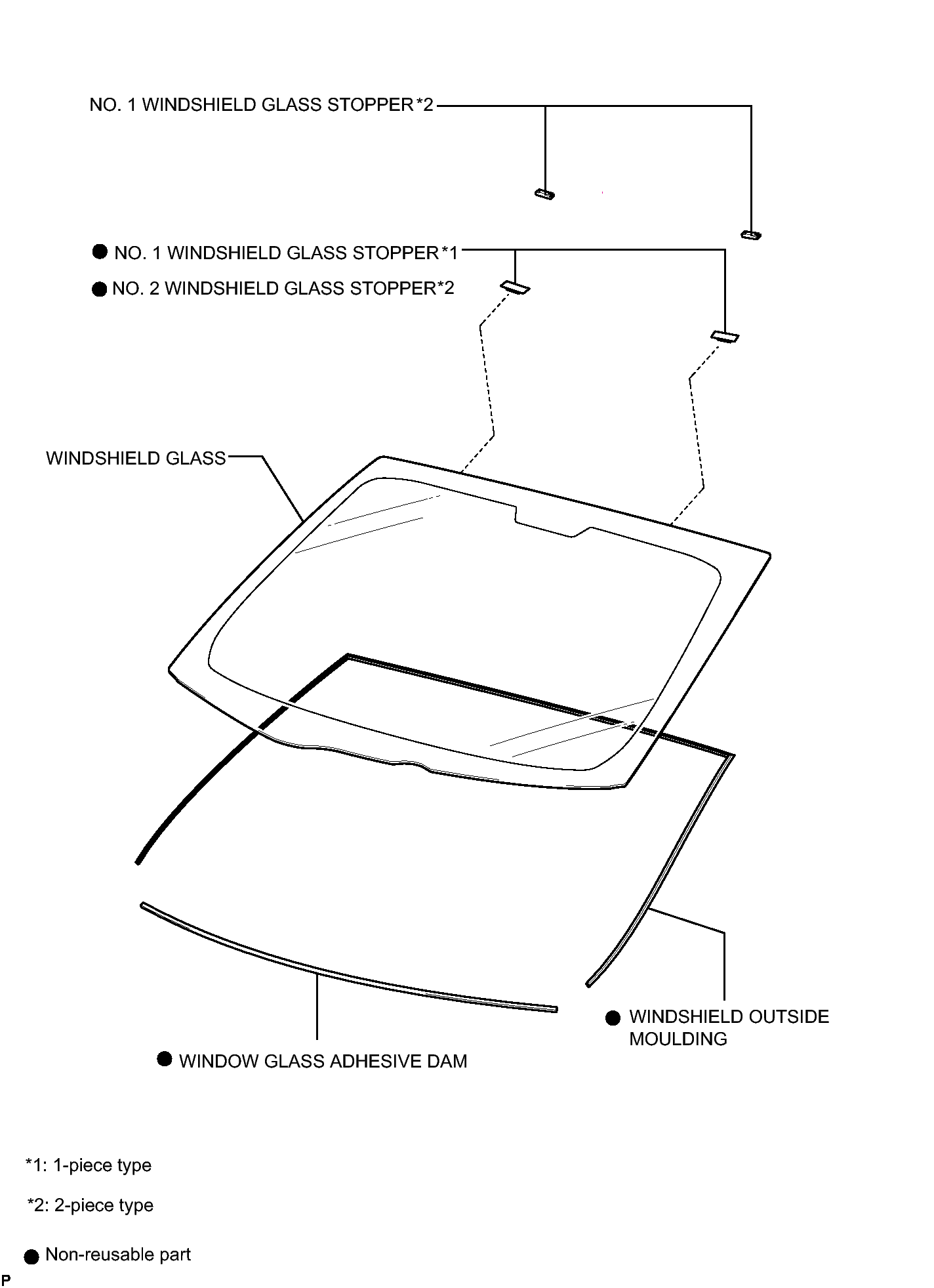

Fig 1: Identifying Windshield Glass Replacement Components (5 Of 5)
GTY227042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
