DCM(Telematics Transceiver): Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

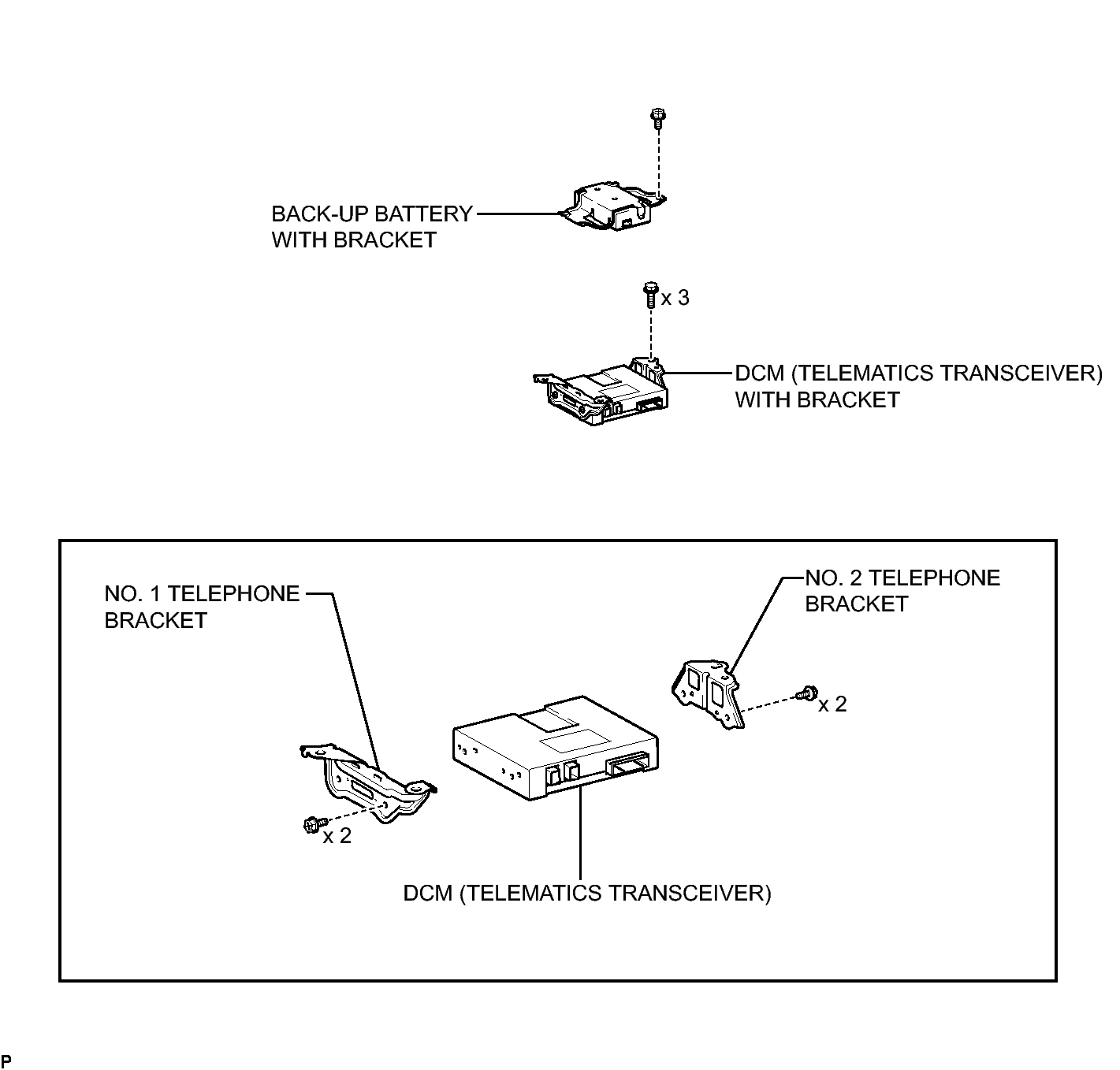

Fig 1: Identifying DCM (Telematics Transceiver) Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying DCM (Telematics Transceiver) Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
