FOOTWELL Light: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

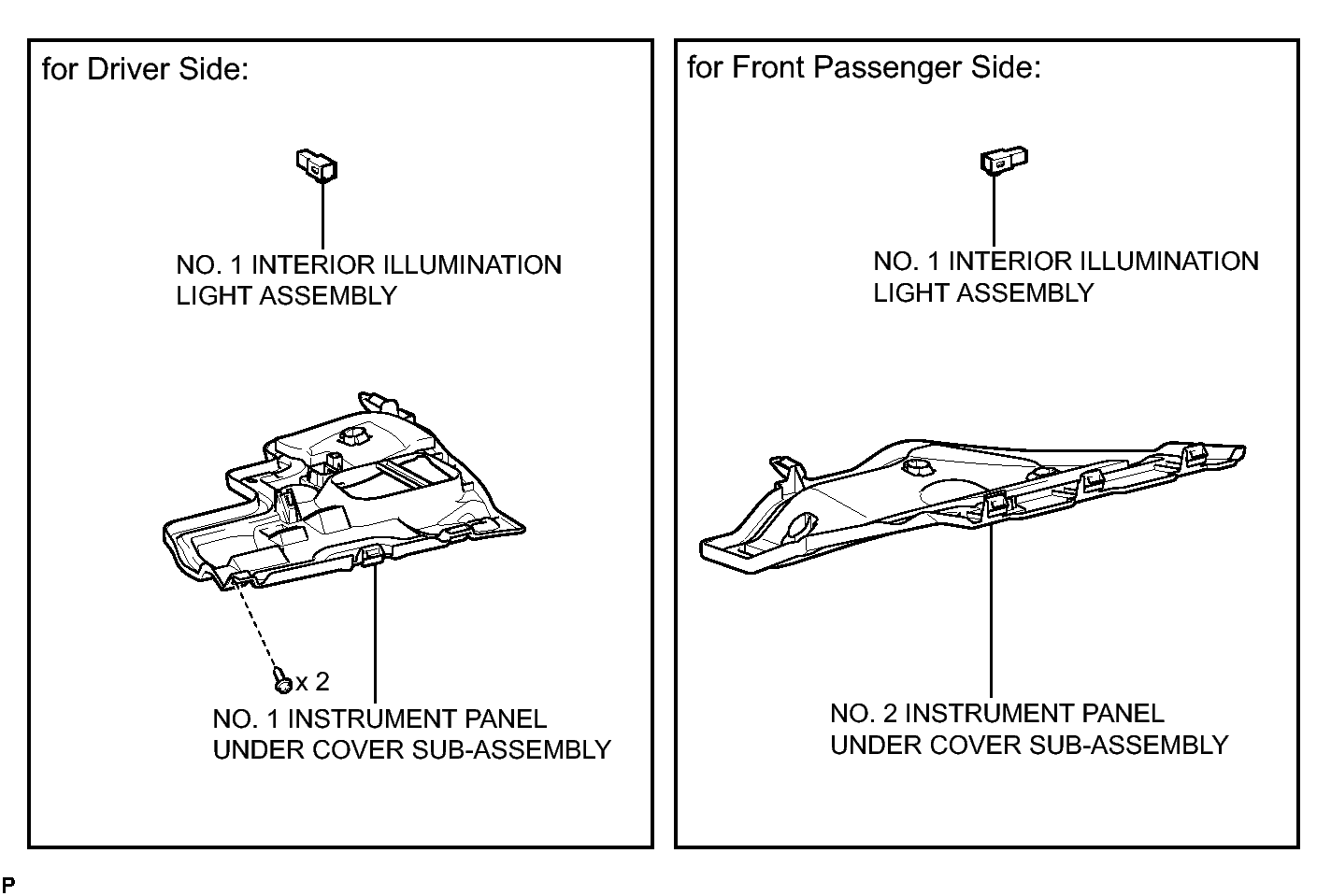

Fig 1: Identifying Footwell Light Replacement Components
GTY226043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
