Front Door Courtesy Switch: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

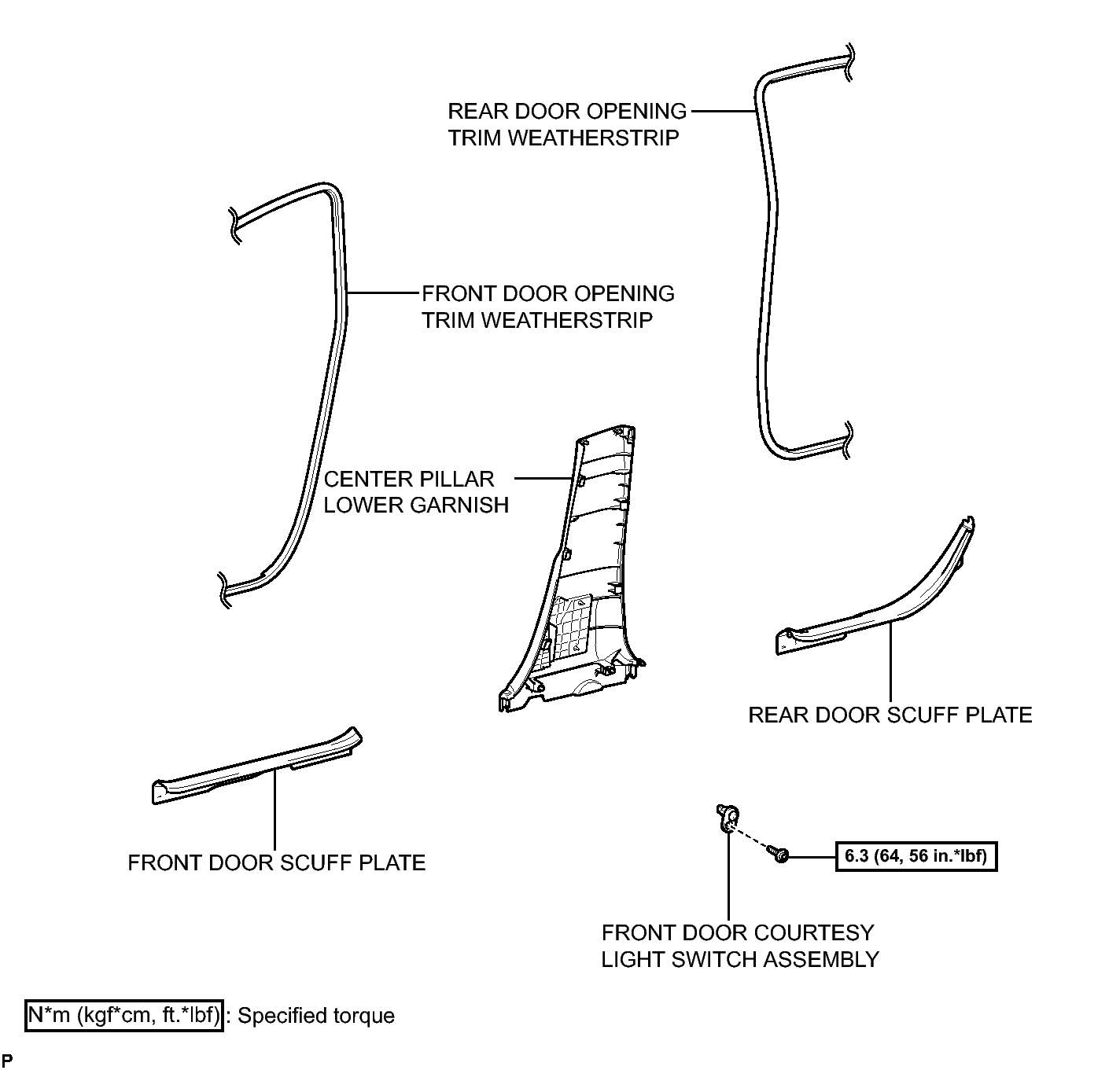

Fig 1: Identifying Front Door Courtesy Switch Replacement Components With Torque Specifications
GTY334374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
