Front Door Courtesy Switch Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front Door Courtesy Switch Circuit: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

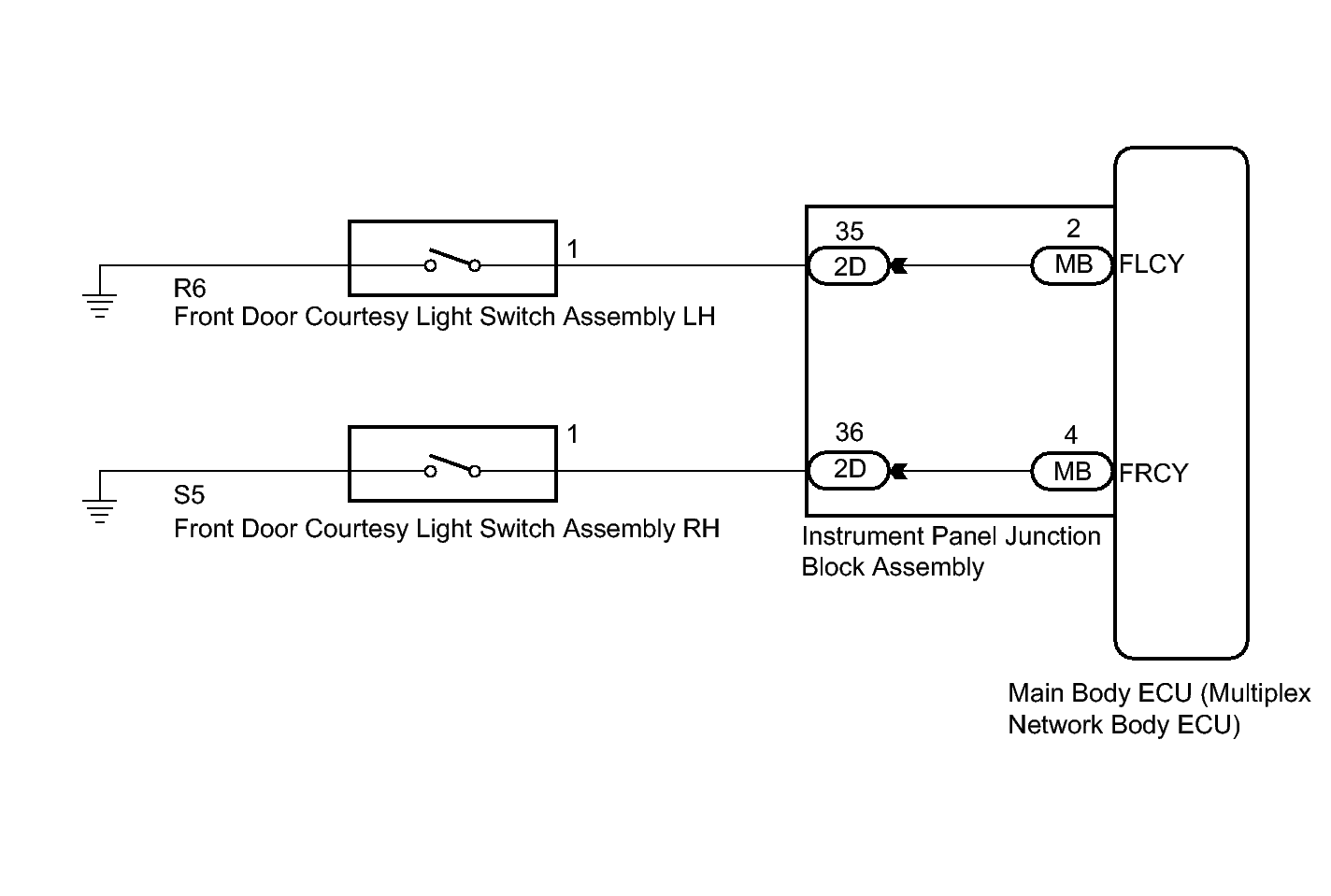

Fig 1: Identifying Front Door Courtesy Switch Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
