Parts Location: Illustration
WARNING:
This page is about a different variant/trim than selected.

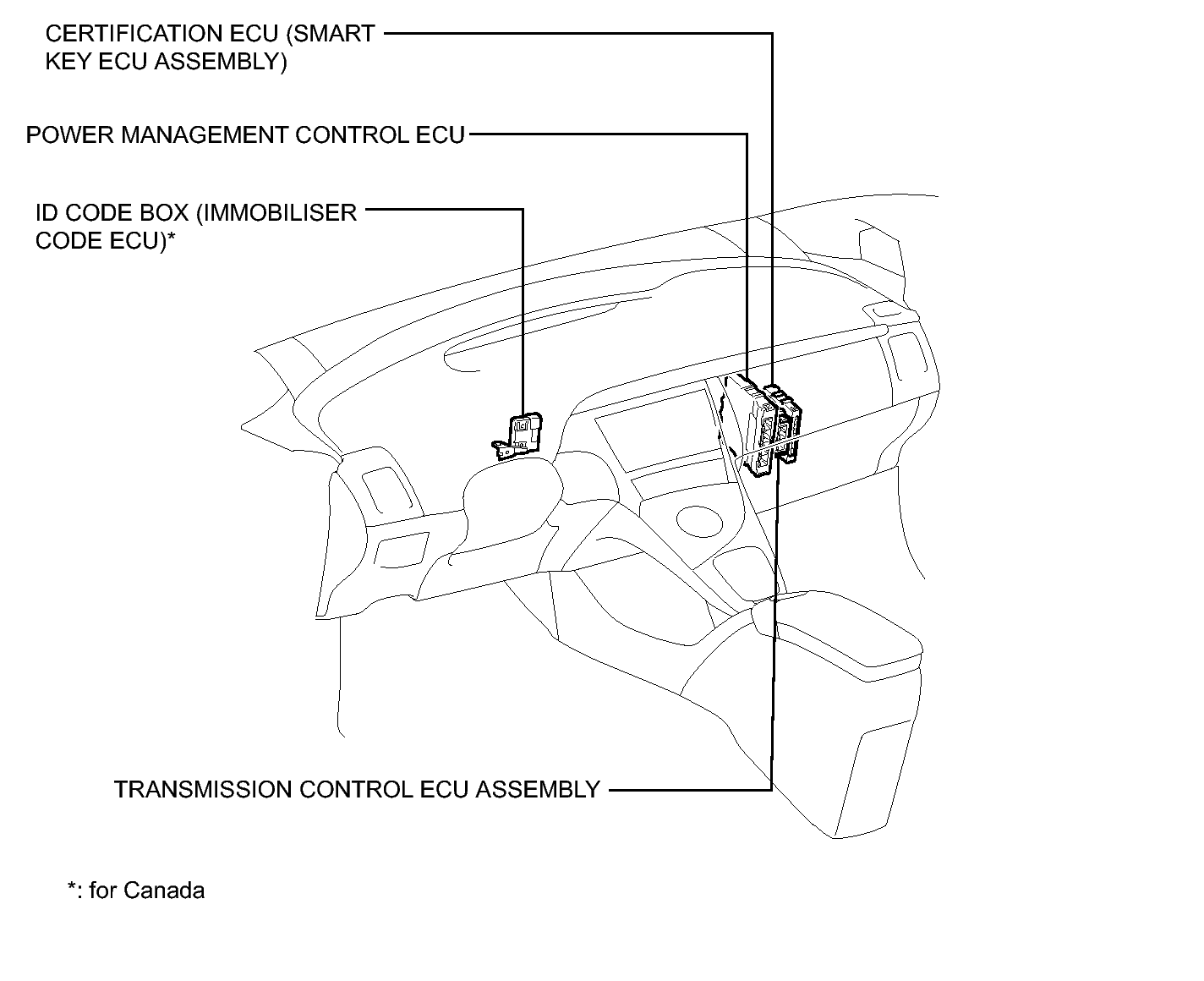

Fig 1: Identifying LIN Communication System Component Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

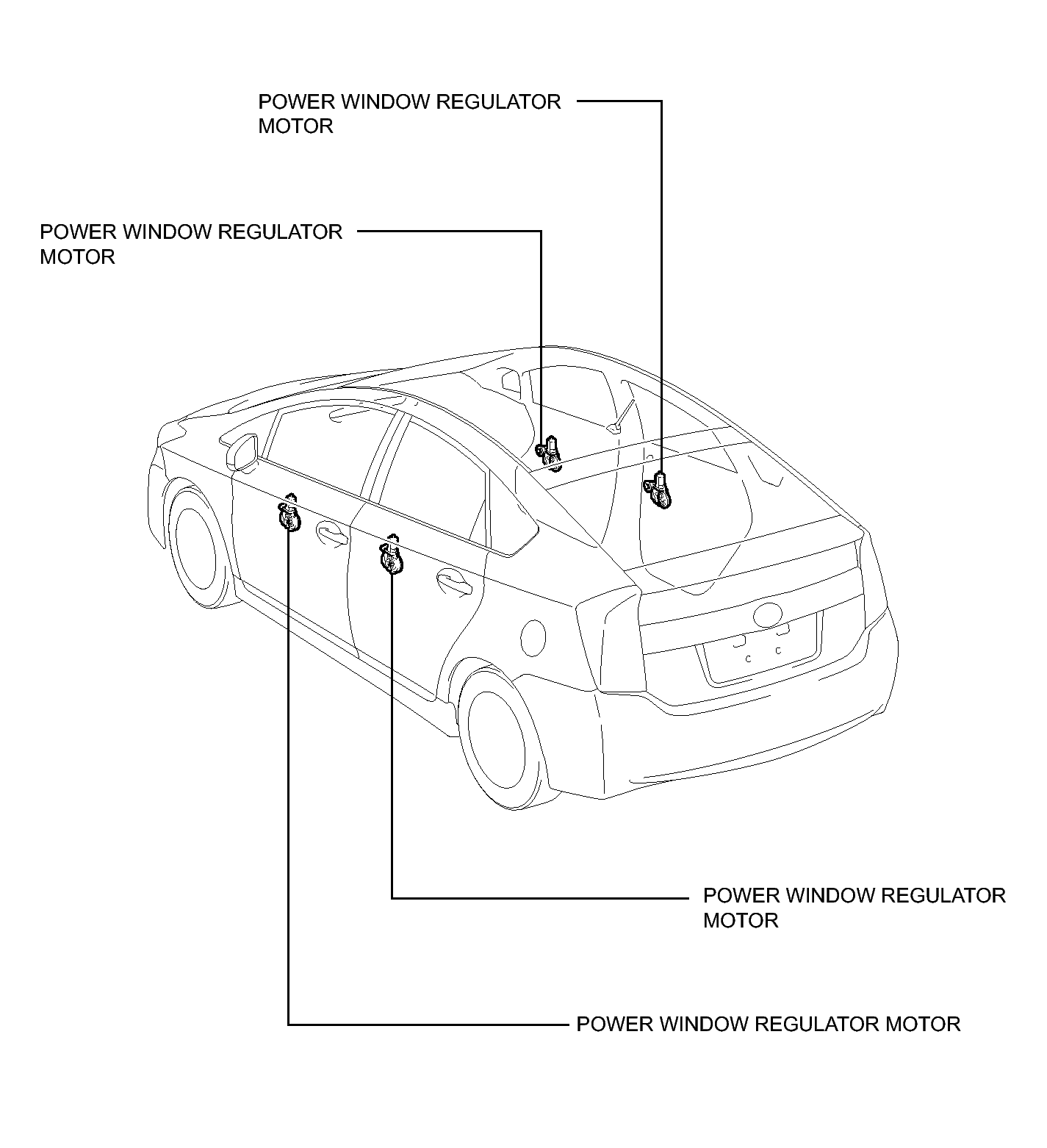

Fig 1: Identifying LIN Communication System Components Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying LIN Communication System Component Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
