DTC B2312: Power Window Switch Malfunction: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

for Driver Door

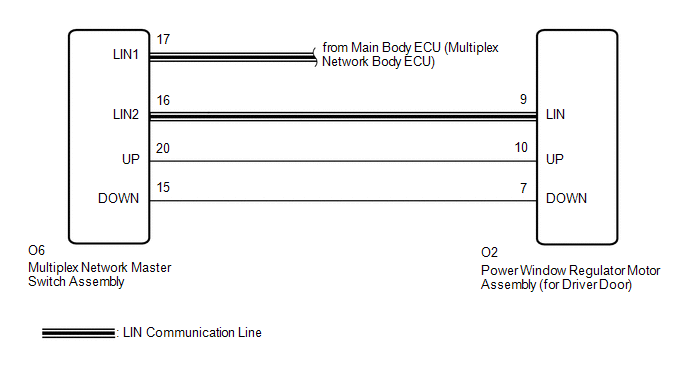

Fig 1: Power Window Switch (For Driver Door) Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for Front Passenger Door

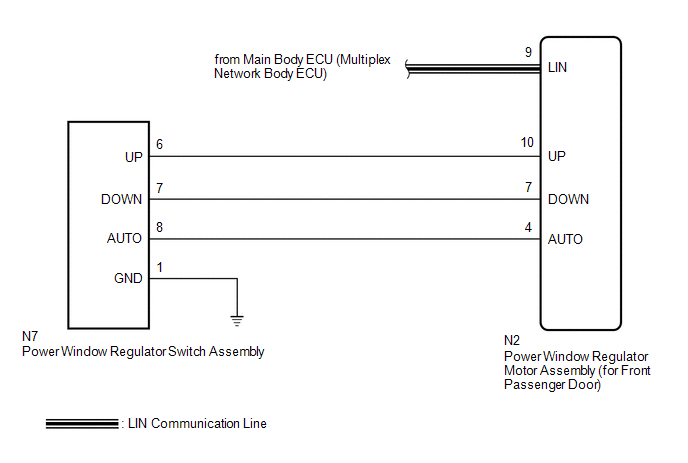

Fig 2: Power Window Switch (For Front Passenger Door) Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for Rear LH Door

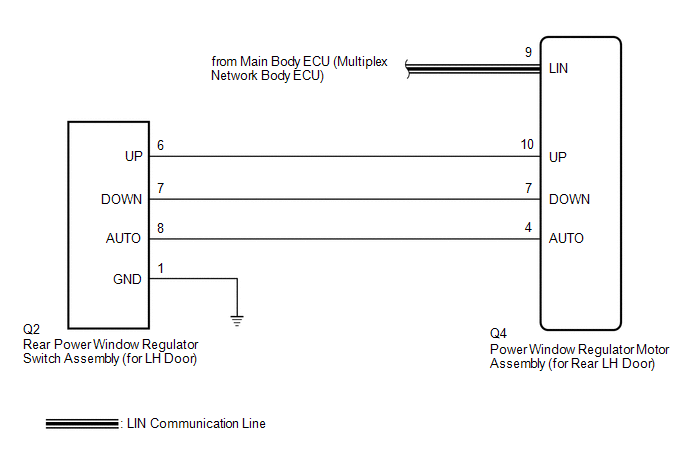

Fig 3: Power Window Switch (For Rear LH Door) Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for Rear RH Door

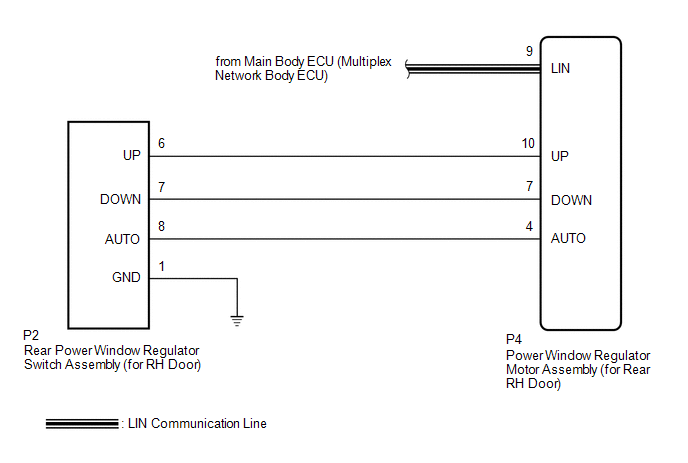

Fig 4: Power Window Switch (For Rear RH Door) Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
