Rear Power Window LH does not Operate with Rear Power Window Switch LH: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

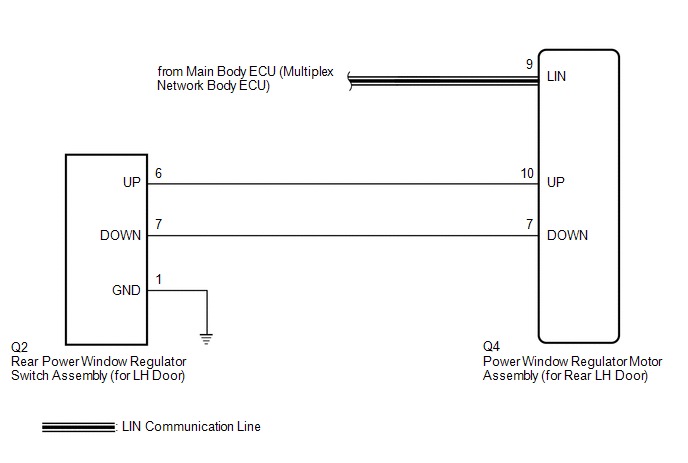

Fig 1: Rear LH Side Power Window Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
