High Beam Headlight Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
  1. for Canada

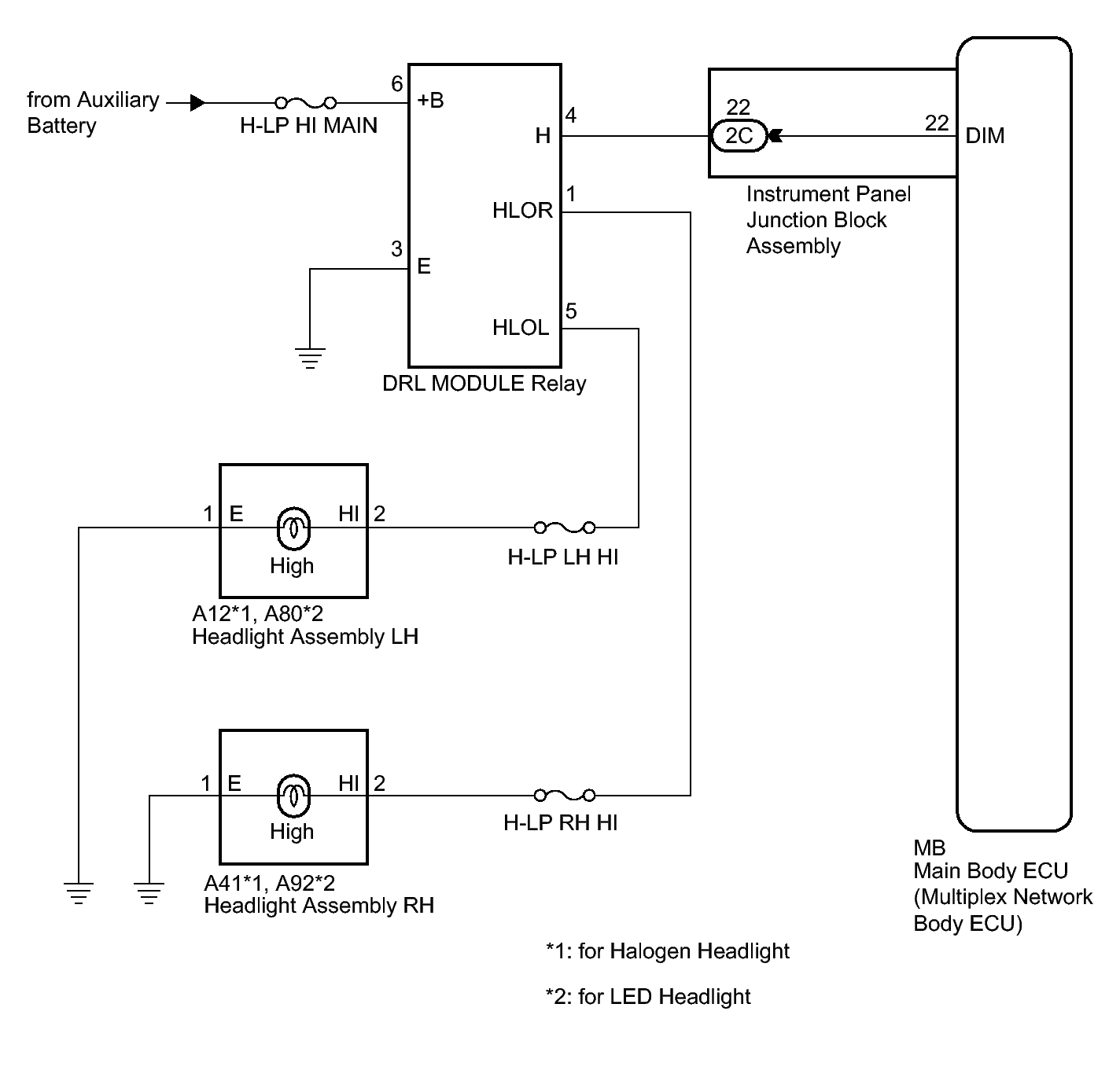

    Fig 1: Identifying High Beam Headlight (for Canada) Circuit Diagram
    GTY372673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. except Canada

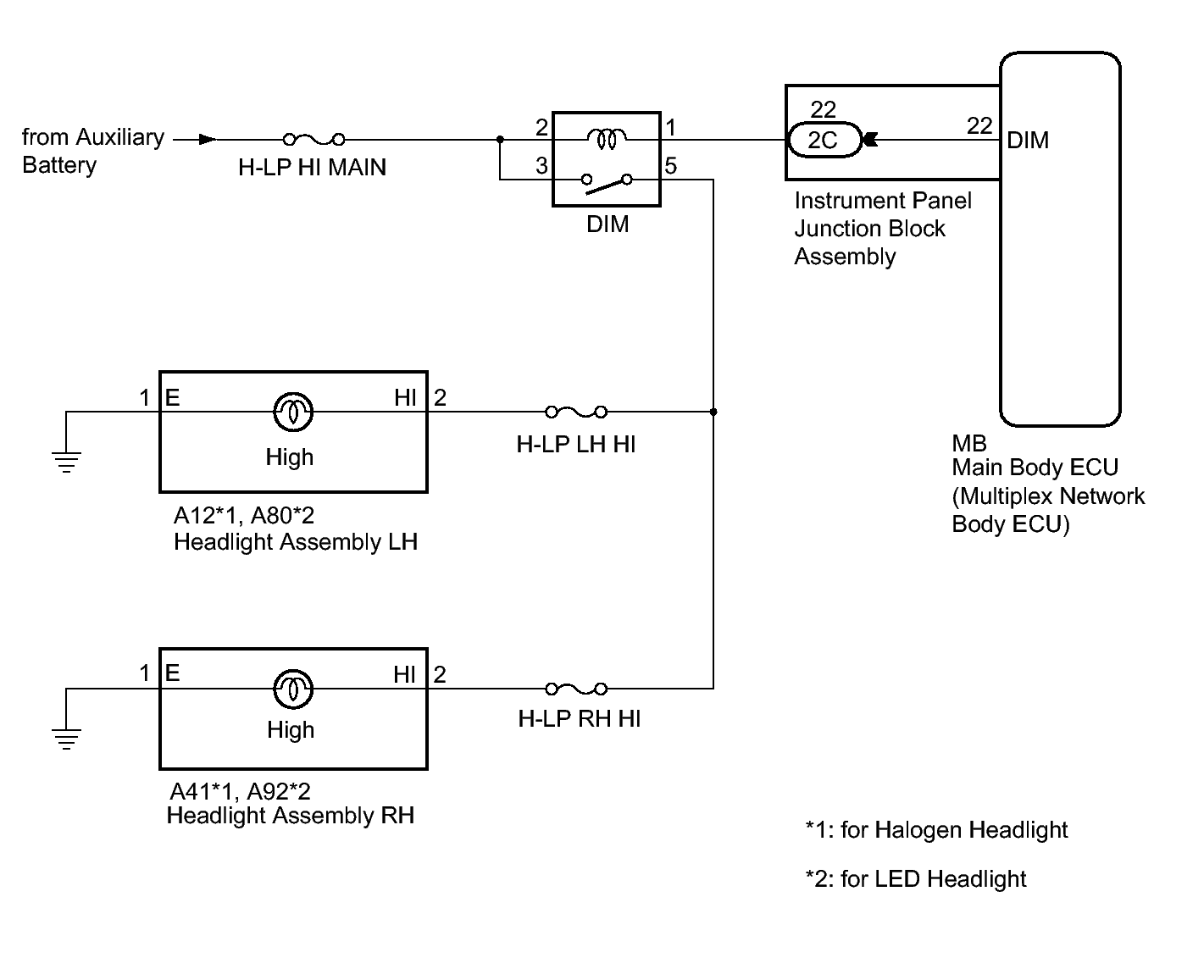

    Fig 2: Identifying High Beam Headlight (Except Canada) Circuit Diagram
    GTY343212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
