Automatic Glare-Resistant EC Mirror and Garage Door Opener: Notes

WARNING: This page is about a different variant/trim than selected.

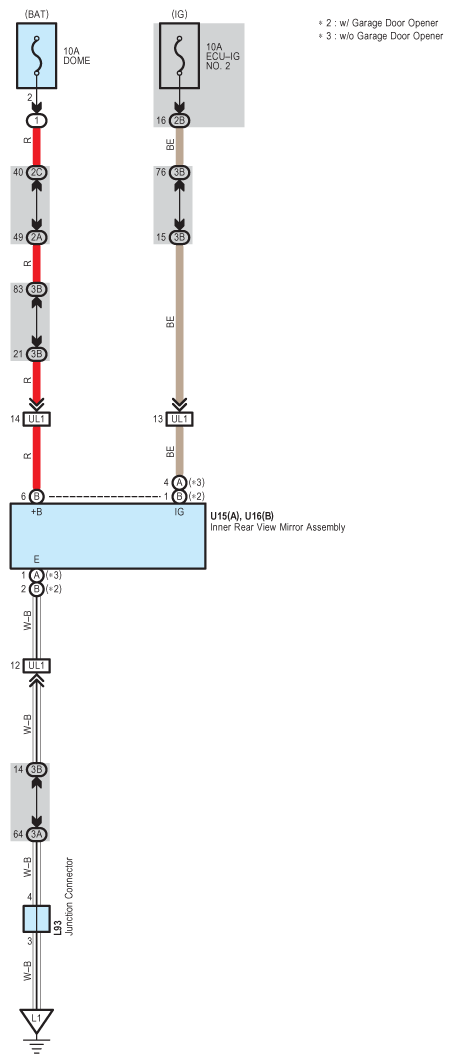

Fig 1: Automatic Glare-Resistant EC Mirror And Garage Door Opener Wiring Diagram
G09100346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
