Millimeter Wave Radar Sensor: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

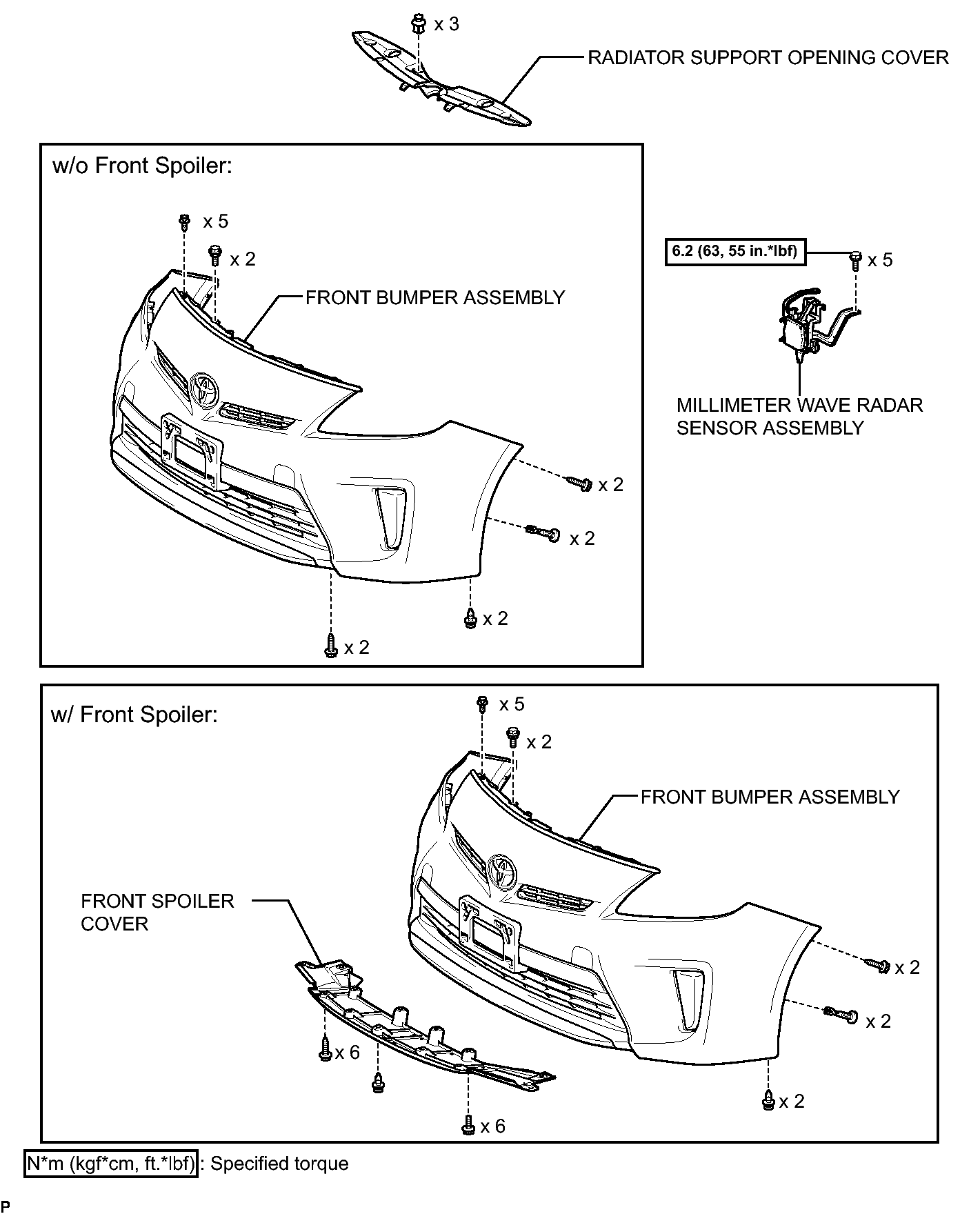

Fig 1: Identifying Millimeter Wave Radar Sensor Replacement Components With Torque Specifications
GTY333419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
