Frame Wire: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

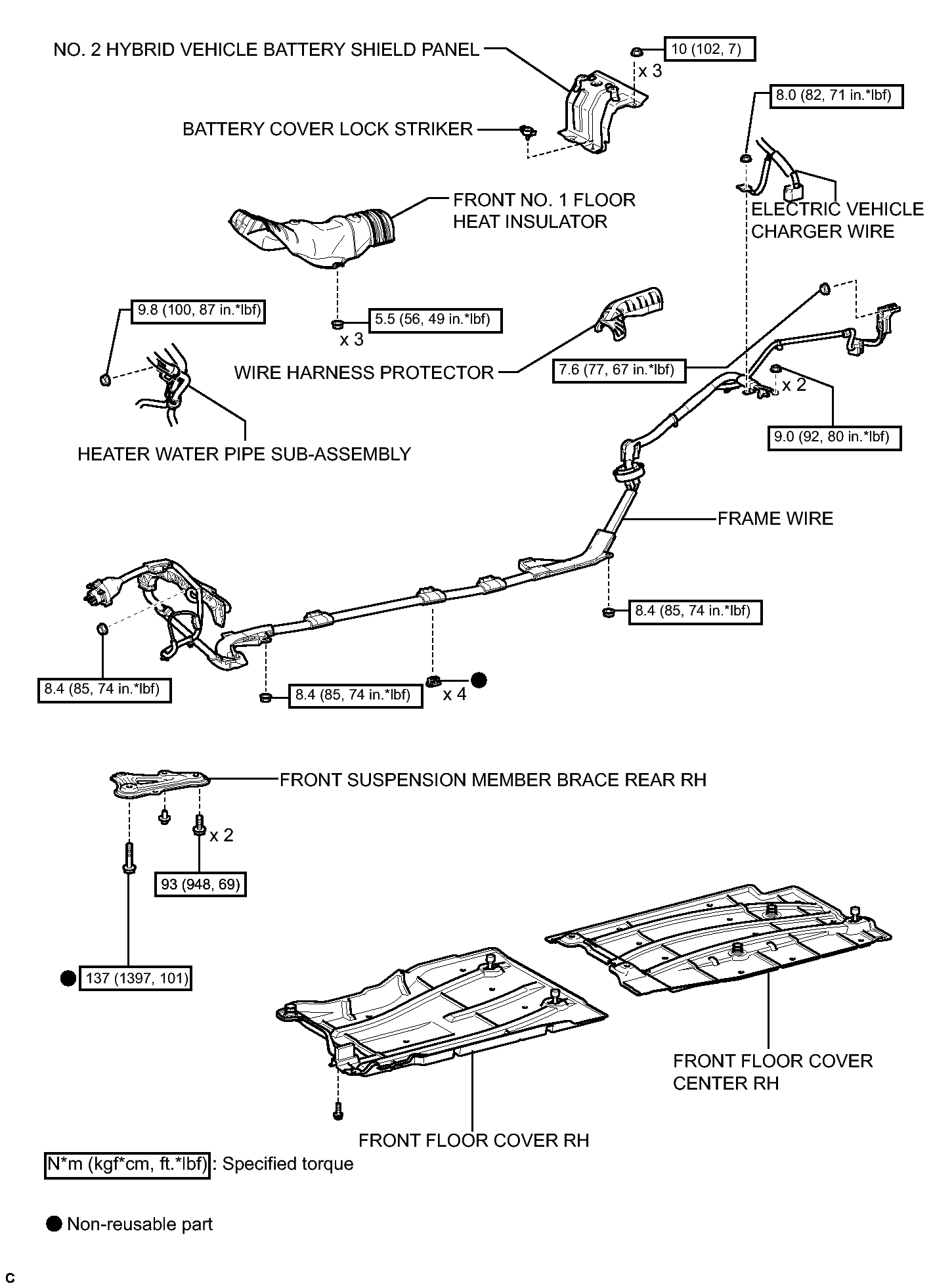

Fig 1: Identifying Frame Wire Replacement Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Frame Wire Replacement Components With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Frame Wire Replacement Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Frame Wire Replacement Components With Torque Specifications (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
