Sub Radiator: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE COOLER CONDENSER ASSEMBLY
Refer to REMOVAL .
REMOVE RADIATOR ASSEMBLY
1. Remove the 4 bolts and radiator assembly from the condenser assembly.

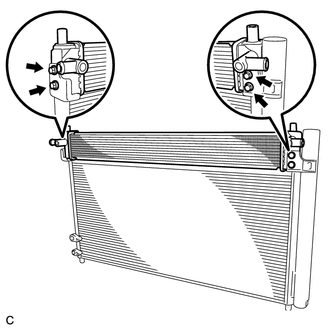

  Fig 1: Identifying Radiator Assembly & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  After disconnecting the water hoses, put pieces of cloth into the pipes and disconnected hoses or cover the pipes and hoses with plastic bags to prevent foreign matter from entering the cooling system.
