Front Brake: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

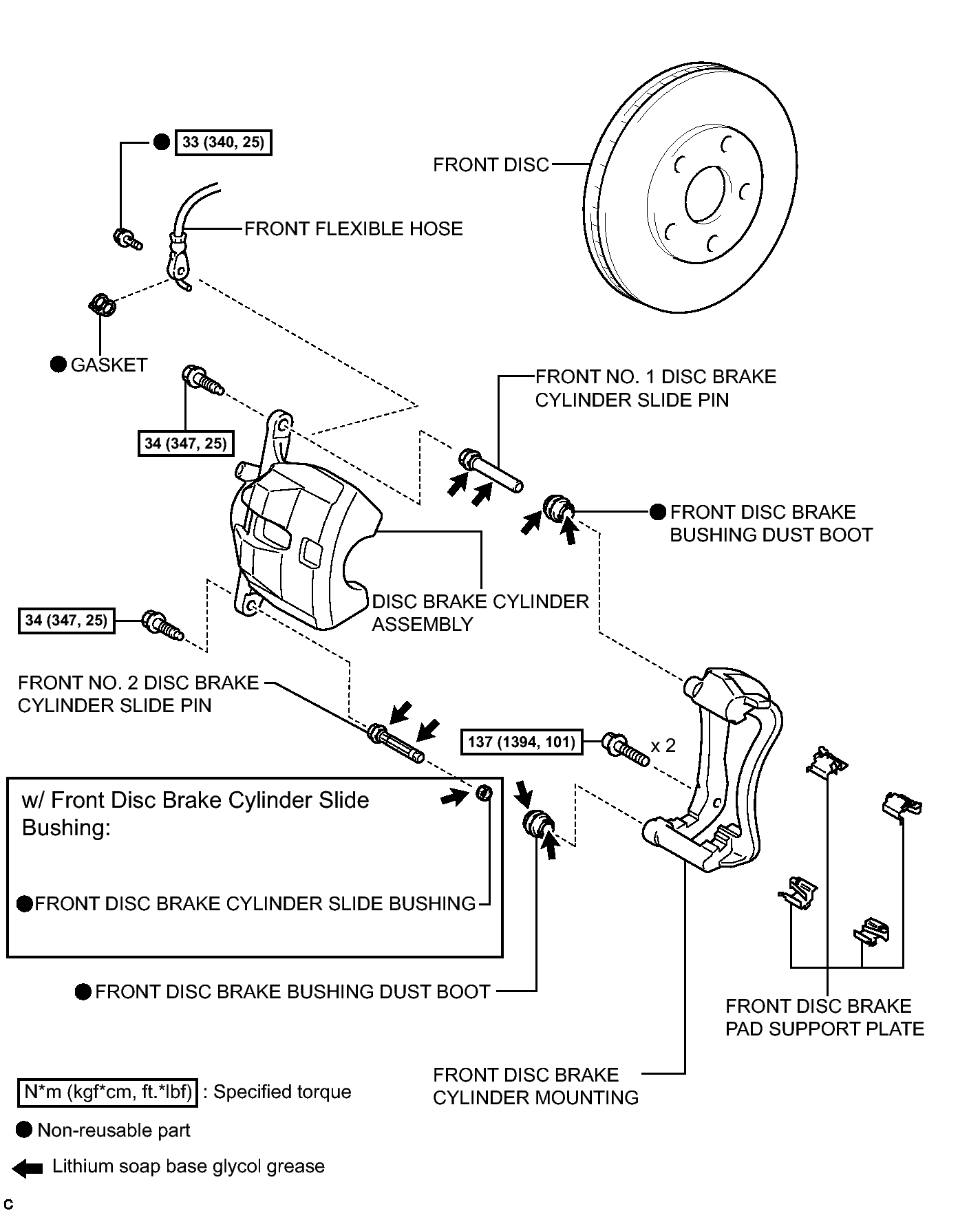

Fig 1: Identifying Exploded View Of Front Brake Replacement Components With Torque Specifications (1 Of 2)
GTY339209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

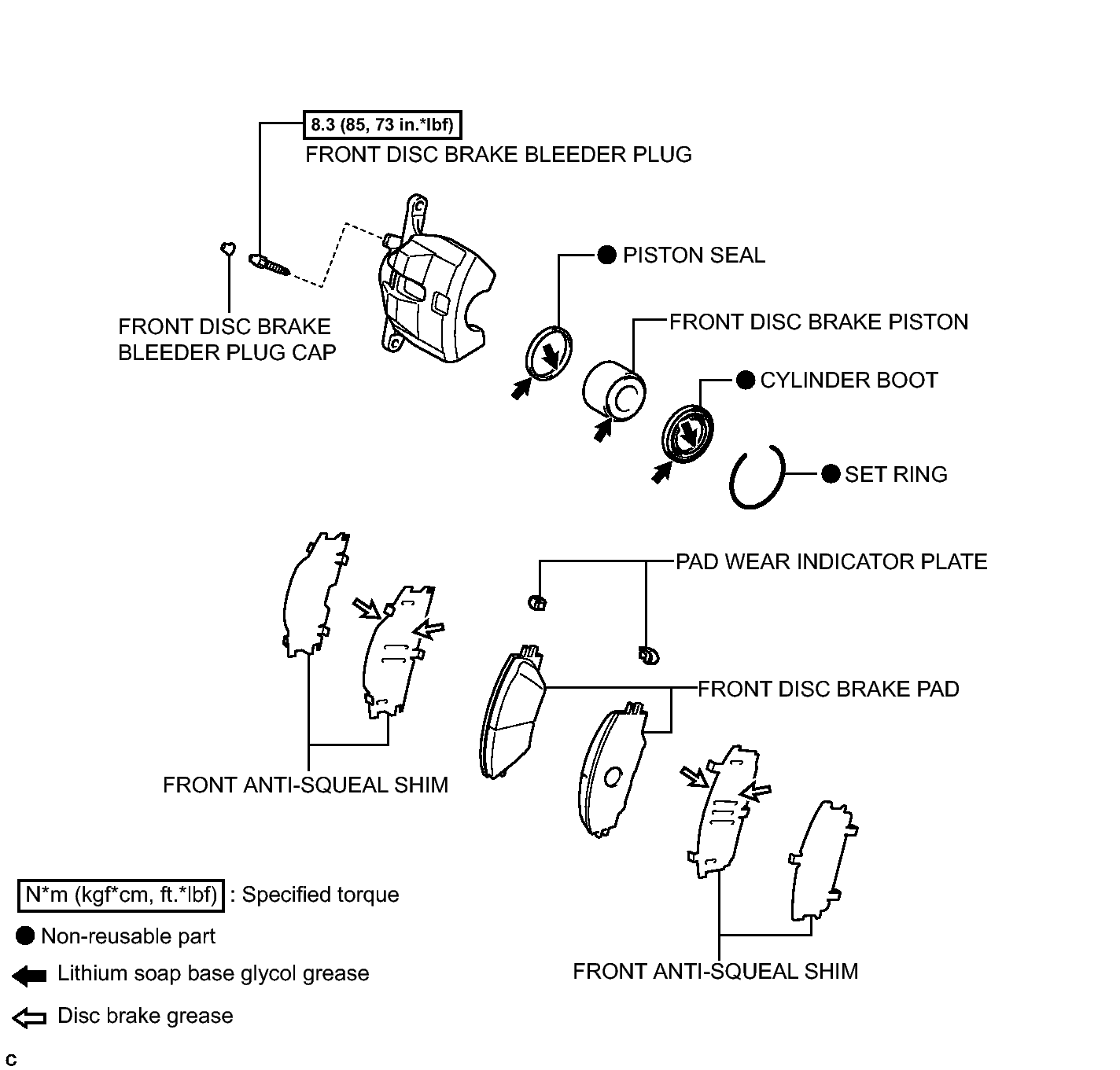

Fig 1: Identifying Exploded View Of Front Brake Replacement Components With Torque Specifications (2 Of 2)
GTY235990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
