Air Conditioning Unit: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

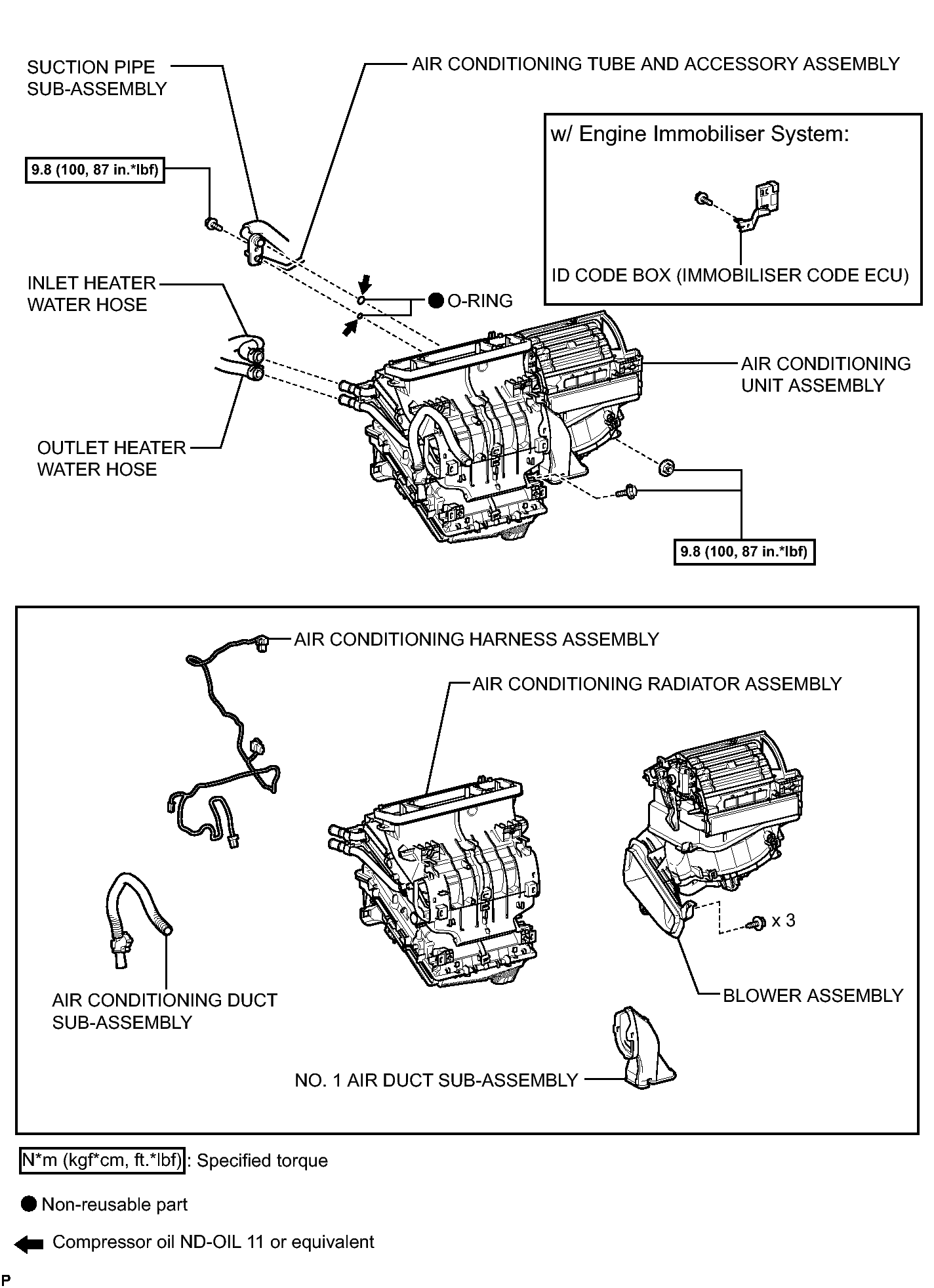

Fig 1: Identifying Air Conditioning Unit Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

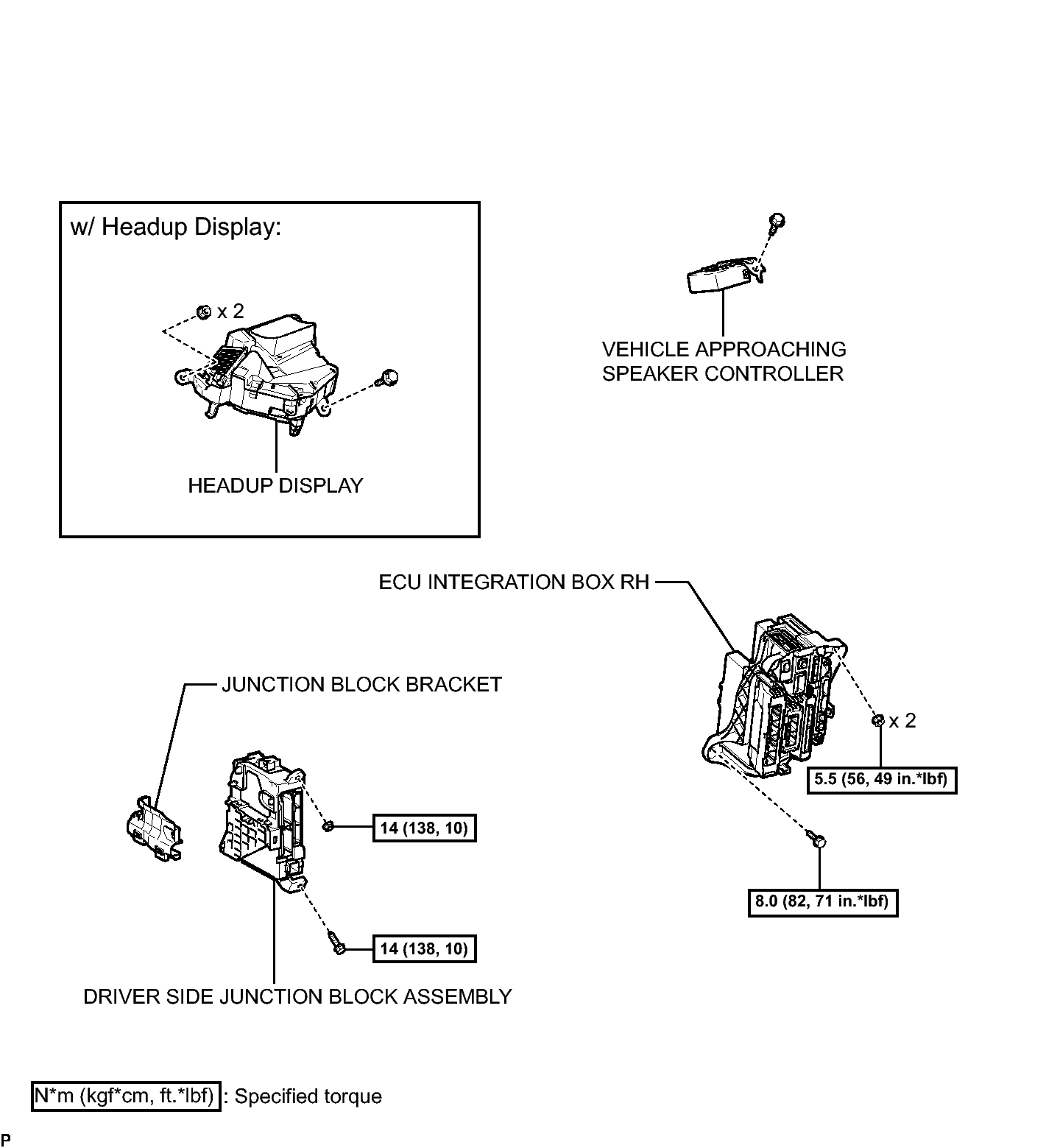

Fig 1: Identifying Air Conditioning Unit Replacement Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

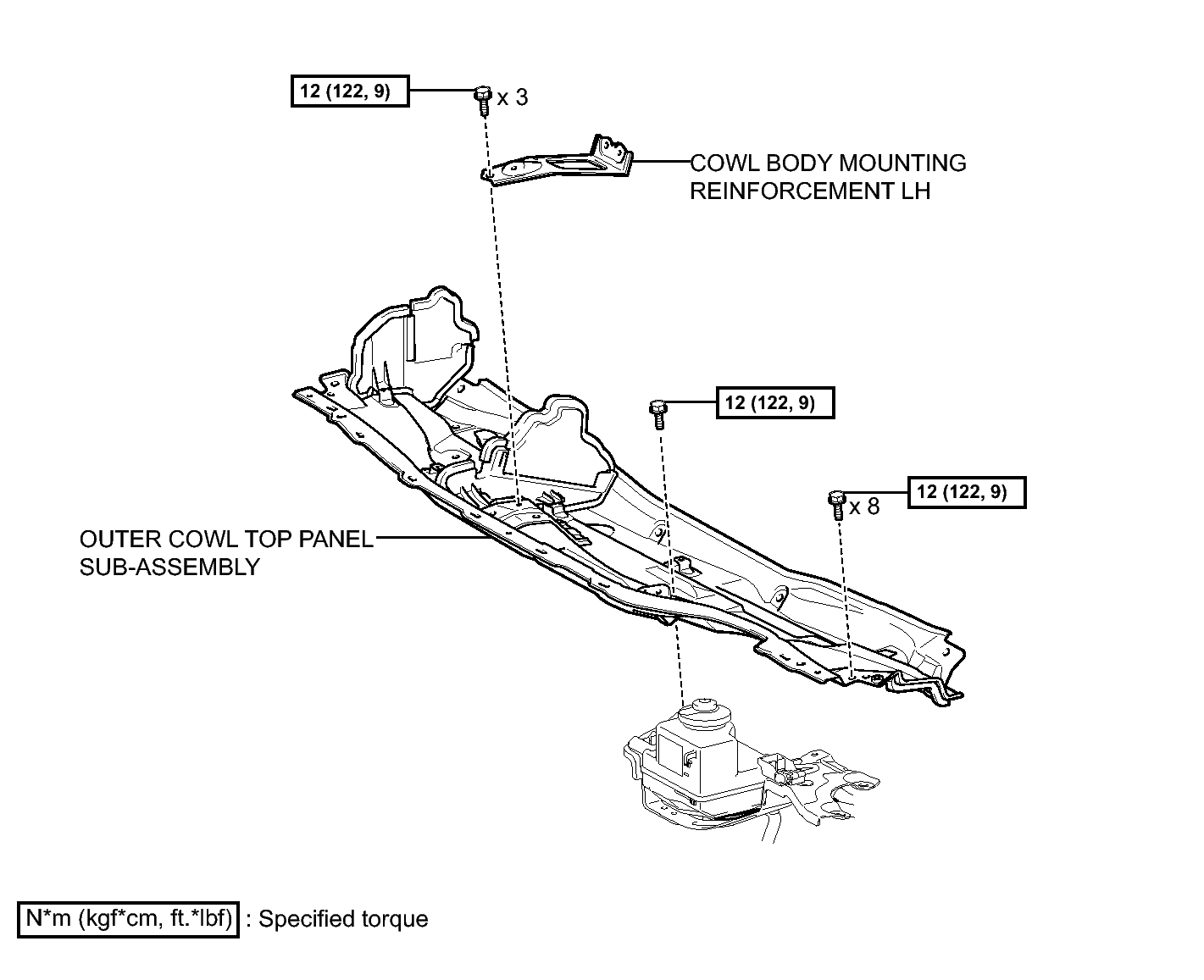

Fig 1: Identifying Air Conditioning Unit Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

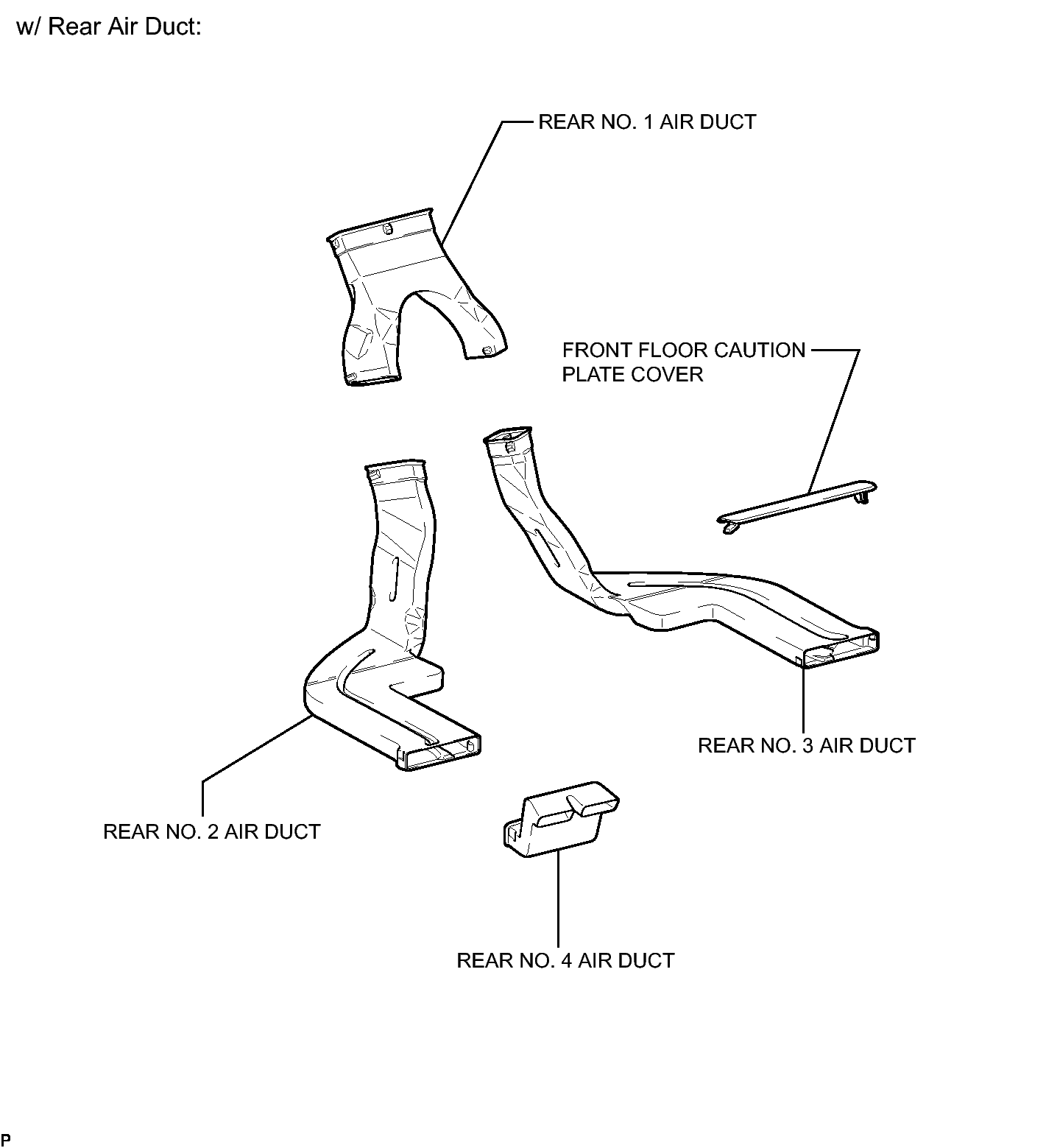

Fig 1: Identifying Air Conditioning Unit Replacement Components With Torque Specifications (4 Of 6)

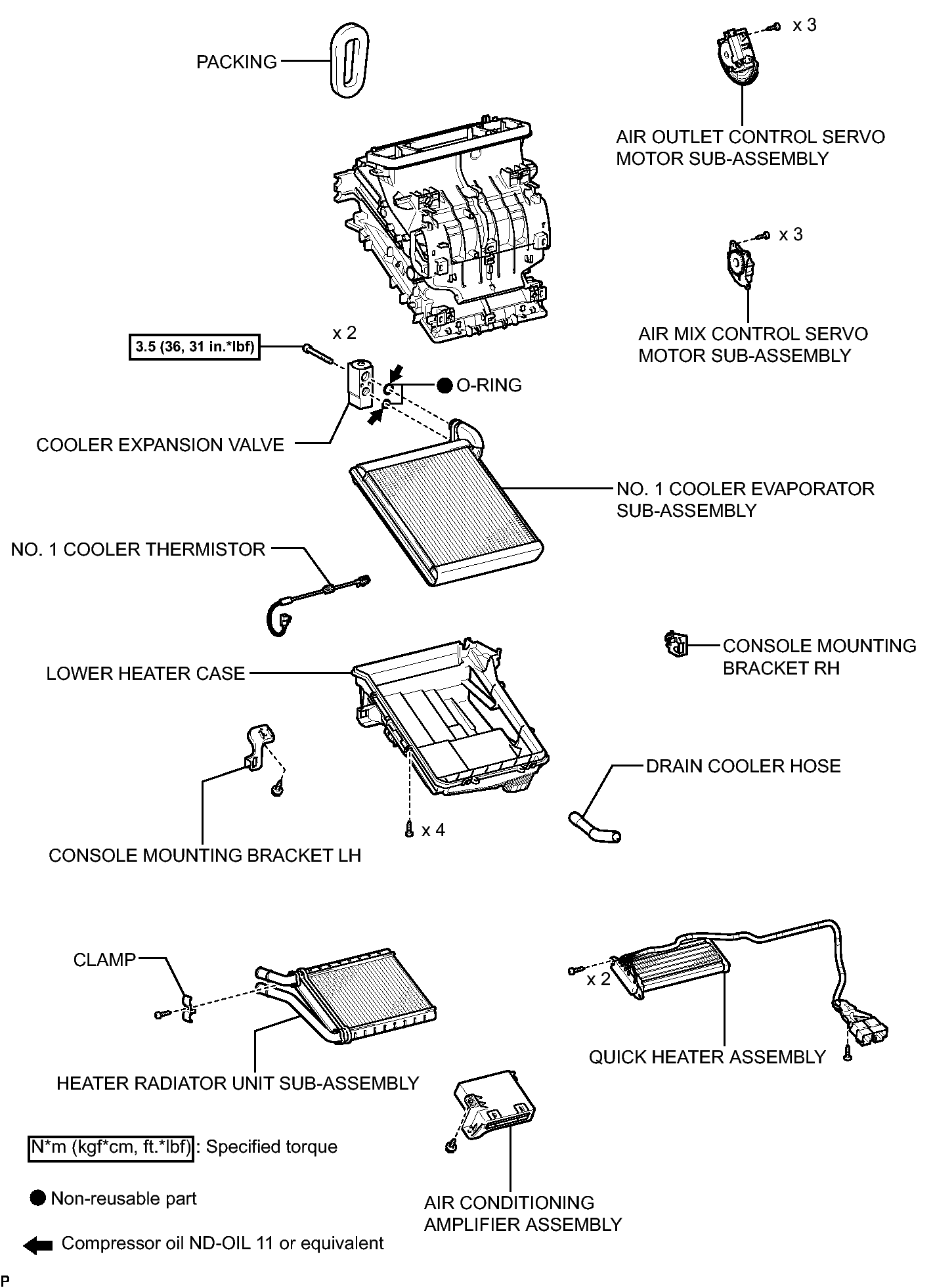

Fig 1: Identifying Air Conditioning Unit Replacement Components With Torque Specifications (5 Of 6)

Fig 1: Identifying Air Conditioning Unit Replacement Components With Torque Specifications (6 Of 6)
