Section 39 (Air Conditioning System (Service Information) (Plug-In)): Compressor: Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

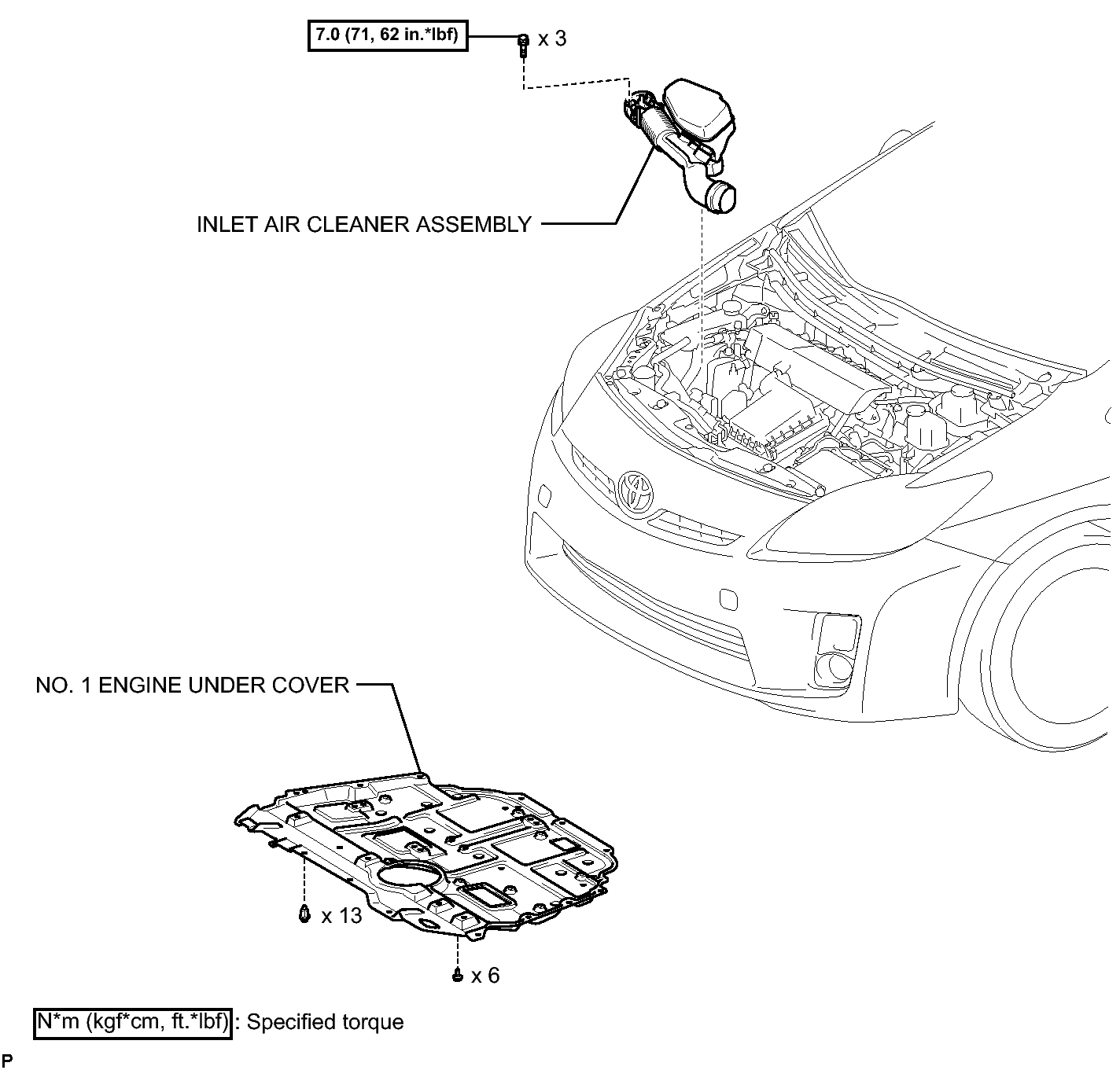

Fig 1: Identifying Compressor Replacement Components With Torque Specifications (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

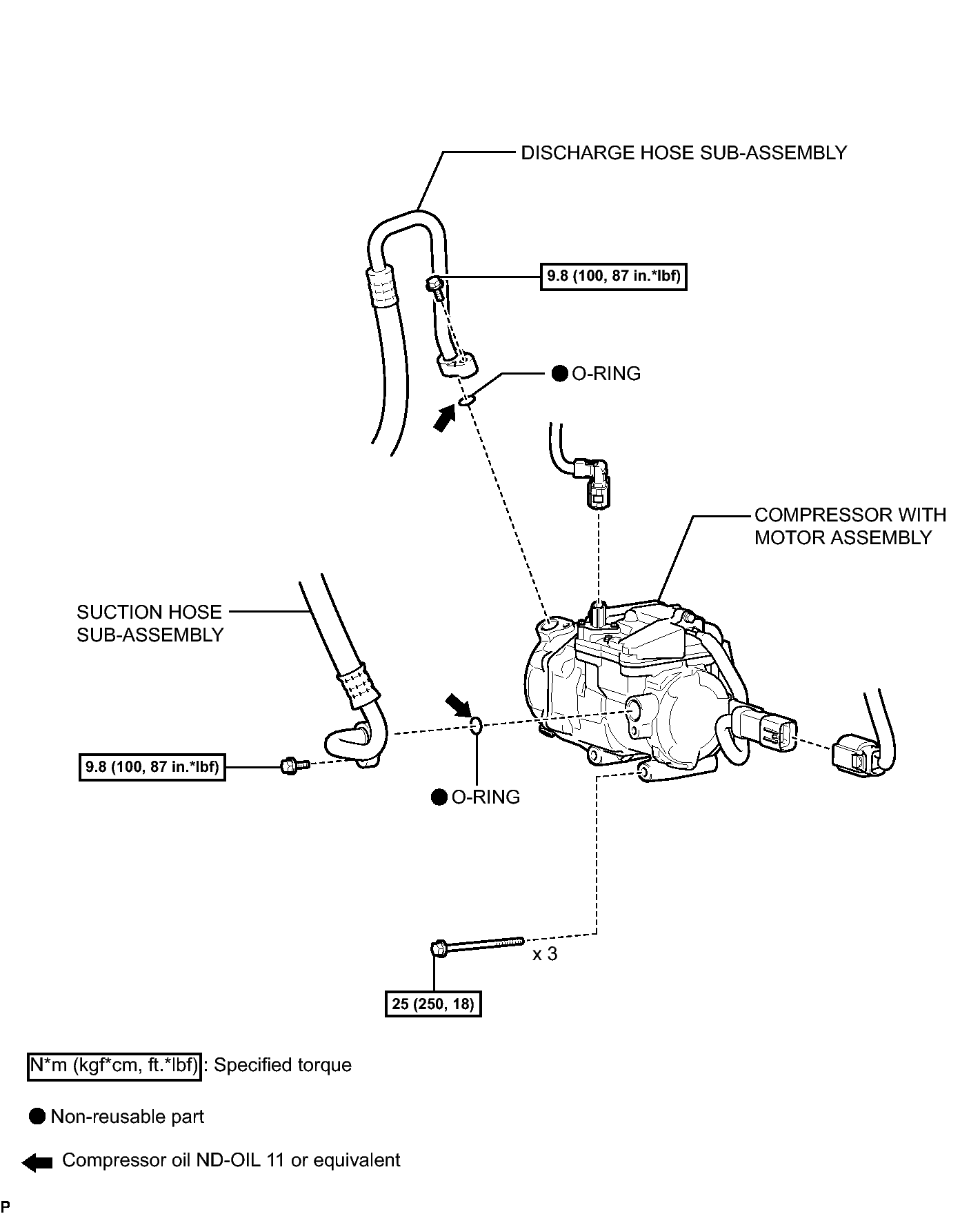

Fig 1: Identifying Compressor Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
