PTC Heater Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

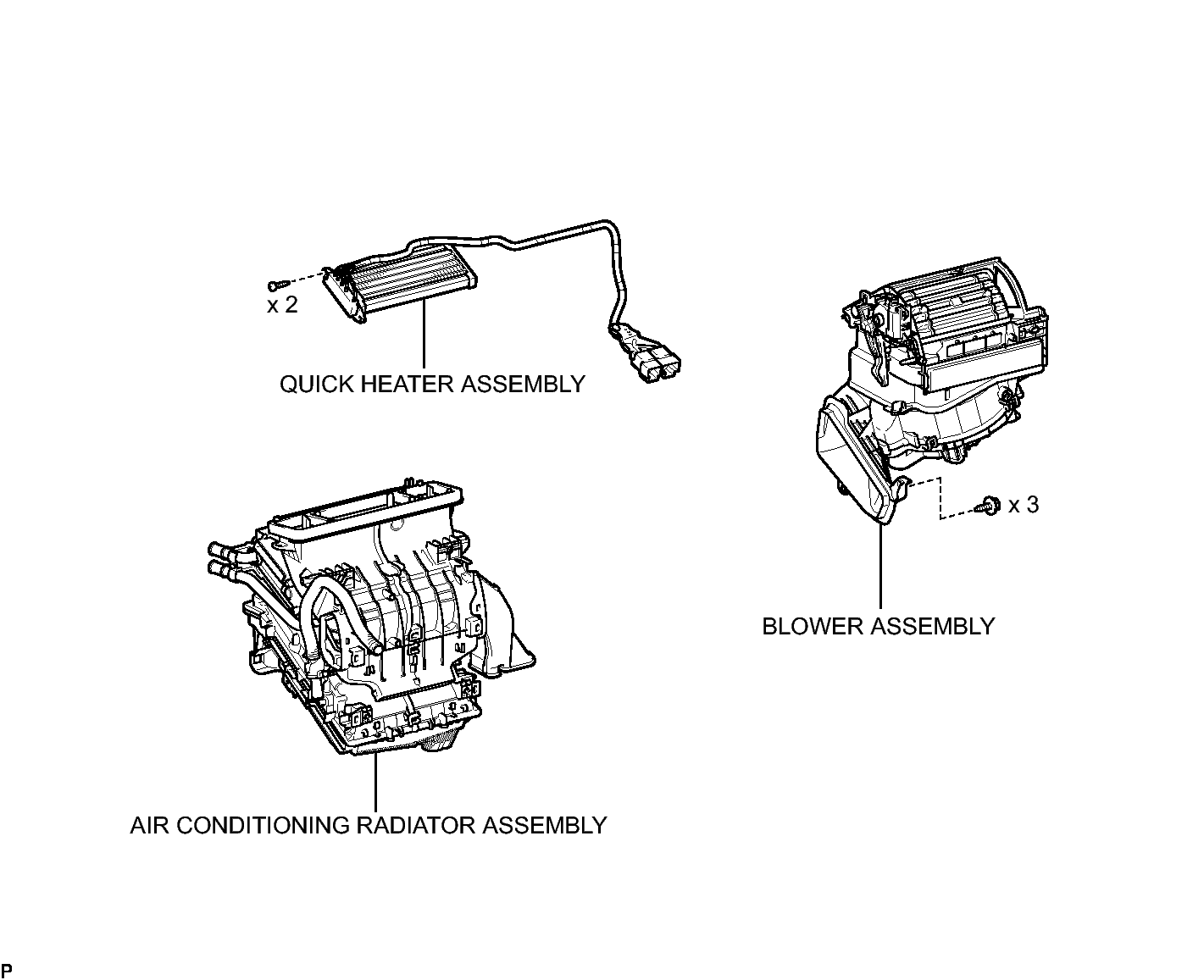

Fig 1: Identifying PTC Heater Assembly Replacement Components
GTY334978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
