Front Wiper Motor: Inspection: Inspection
WARNING: This page is about a different variant/trim than selected.
NOTE:
Ensure that fingers or articles of clothing do not get caught in moving parts when performing this test.
- INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY
- Check the low speed operation.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Connect an auxiliary battery positive (+) lead to terminal 1 (+1) and a negative (-) lead to terminal 5 (E), and check that the motor operates at low speed.
OK
Motor operates at low speed.
- Connect an auxiliary battery positive (+) lead to terminal 1 (+1) and a negative (-) lead to terminal 5 (E), and check that the motor operates at low speed.
- Check the high speed operation.
- Connect an auxiliary battery positive (+) lead to terminal 4 (+2) and a negative (-) lead to terminal 5 (E), and check that the motor operates at high speed.
OK
Motor operates at high speed.

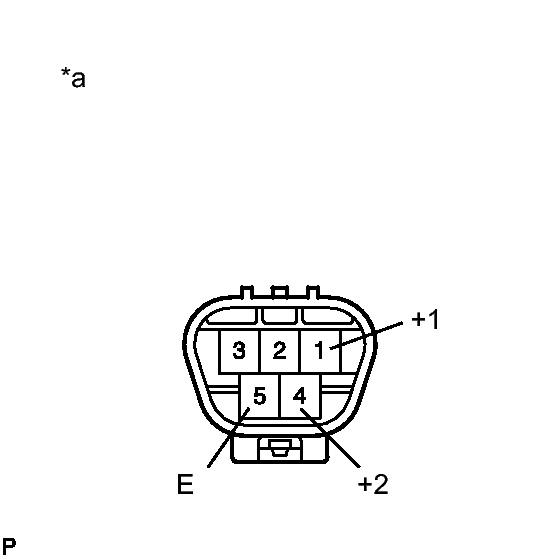

TEXT IN ILLUSTRATION*a Component without harness connected
(Windshield Wiper Motor Assembly)If the result is not as specified, replace the windshield wiper motor assembly.
- Connect an auxiliary battery positive (+) lead to terminal 4 (+2) and a negative (-) lead to terminal 5 (E), and check that the motor operates at high speed.
- Check the low speed operation.
