WASHER MOTOR (for Front Side): Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL FRONT WASHER MOTOR AND PUMP ASSEMBLY
1. Install the windshield washer motor and pump assembly.

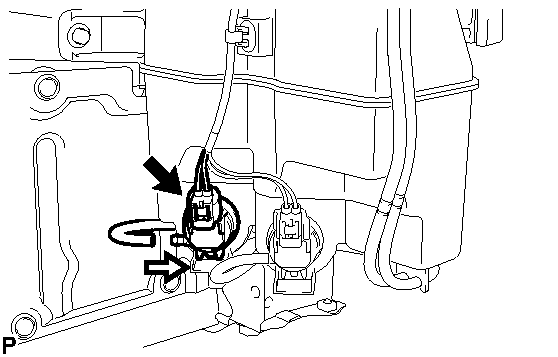

  Fig 1: Identifying Front Washer Motor & Pump Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
3. Connect the washer hose.
ADD WASHER FLUID
1. Add washer fluid to the washer jar.

INSTALL FRONT FENDER LINER RH

Install a new grommet and the 4 screws.
Install the 10 clips.

Install the pin hold clip as shown in the illustration.

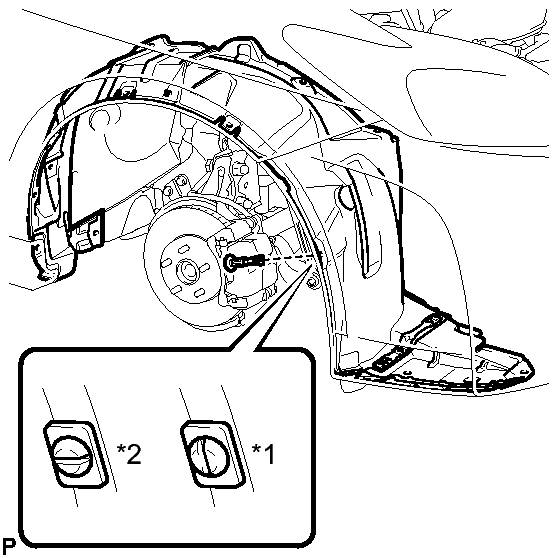

Fig 2: Installing Pin Hold Clip

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Correct
*2	Incorrect

NOTE:

Insert the pin hold clip with the slot aligned vertically. Do not rotate the clip after inserting it. After installation, confirm that the slot is vertical.

INSTALL FRONT WHEEL RH . Refer to INSTALLATION - Step 14
