WASHER NOZZLE (for Front Side): Installation: Installation
WARNING: This page is about a different variant/trim than selected.
- INSTALL WASHER NOZZLE SUB-ASSEMBLY
- Connect a new washer nozzle sub-assembly to the washer hose.

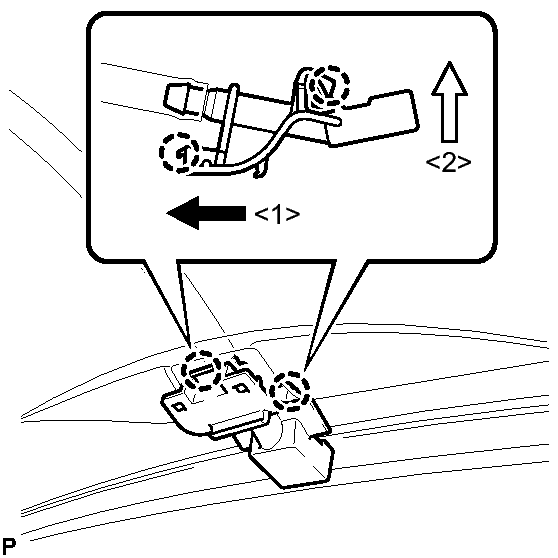

- Engage the 2 claws and install the washer nozzle sub-assembly as shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- INSPECT WASHER NOZZLE SUB-ASSEMBLY
See step 1
- ADJUST WASHER NOZZLE SUB-ASSEMBLY
See step 2
