Section 6 (Power Door Lock Control System (Inspection) (Plug-In))
>>
Power Door Lock Control System
>>
All Doors LOCK/UNLOCK Functions do not Operate Via Door Control Switch
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
All Doors LOCK/UNLOCK Functions do not Operate Via Door Control Switch: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

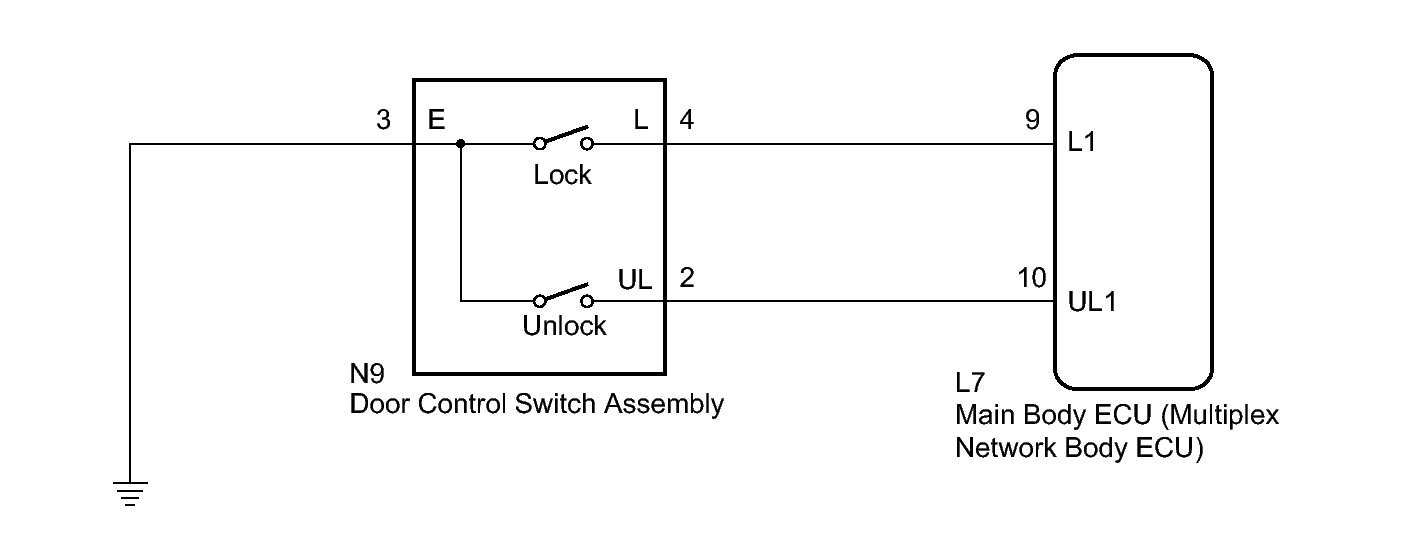

Fig 1: Door Control Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
