Cruise Control Switch Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

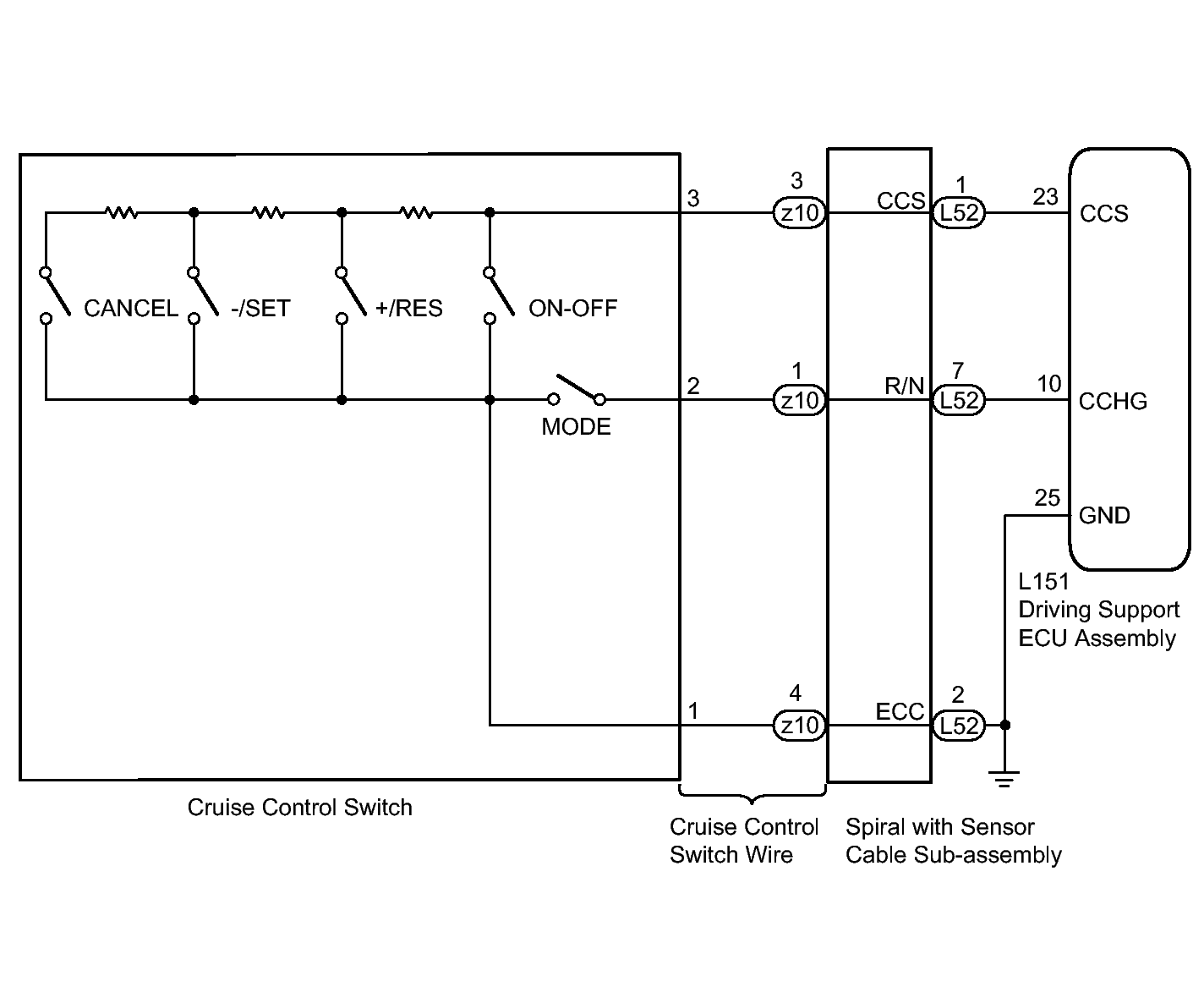

Fig 1: Identifying Cruise Control Switch Circuit Diagram
GTY333916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
