TC and CG Terminal Circuit: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK HARNESS AND CONNECTOR (TERMINAL TC of DLC3 - ECM)
    1. Disconnect the power management control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      L135-11 (TC) - L61-13 (TC) Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - POWER MANAGEMENT CONTROL ECU)

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (TERMINAL CG of DLC3 - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

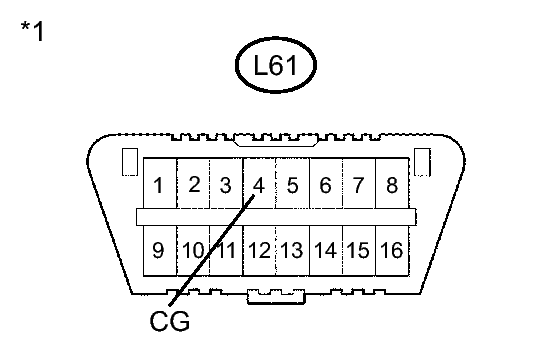

      Fig 1: Checking L61 Connector Terminals
      GTY328827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance (Check for Open)

      Tester Connection Condition Specified Condition
      L61-4 (CG) - Body ground Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *1 DLC3

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - BODY GROUND)

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (TERMINAL TC of DLC3 - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

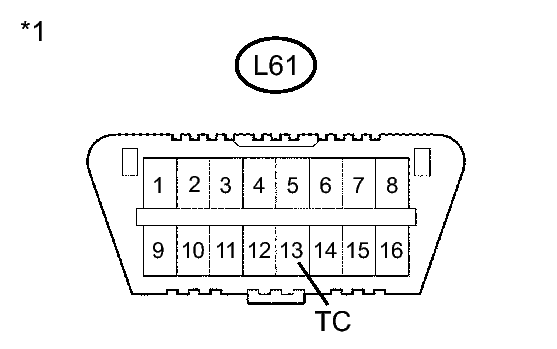

      Fig 2: Checking L61 Connector Terminals
      GTY327166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      L61-13 (TC) - Body ground Always 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *1 DLC3

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU

    OK → See step   4

  4. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE
