DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor: Procedure
WARNING: This page is about a different variant/trim than selected.
- CHECK CAN COMMUNICATION SYSTEM
- Using the Techstream to check if the CAN communication system is functioning normally. Refer to HOW TO PROCEED WITH TROUBLESHOOTING
.
Result
Result Proceed to CAN communication is normal A CAN communication is malfunctioning B
B → GO TO CAN COMMUNICATION SYSTEM
A: Go to next step
- Using the Techstream to check if the CAN communication system is functioning normally. Refer to HOW TO PROCEED WITH TROUBLESHOOTING
.
- CHECK HARNESS AND CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY POWER SOURCE)
- Disconnect the millimeter wave radar sensor assembly connector.
- Turn the power switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

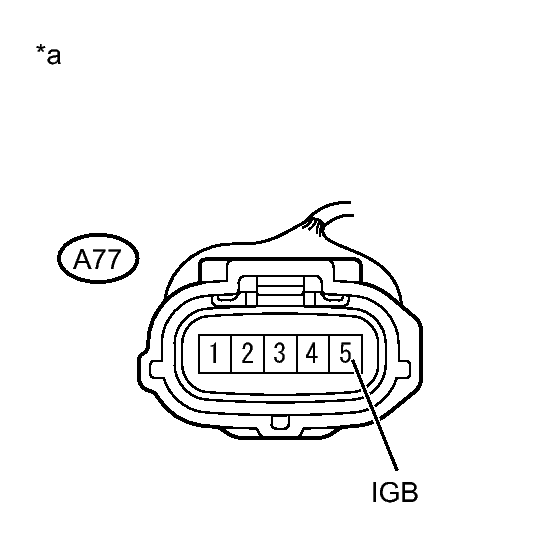

Tester Connection Condition Specified Condition A77-5 (IGB) - Body ground Power switch on (IG) 11 to 14 V TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - IG1 RELAY)
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance (Check for Open)

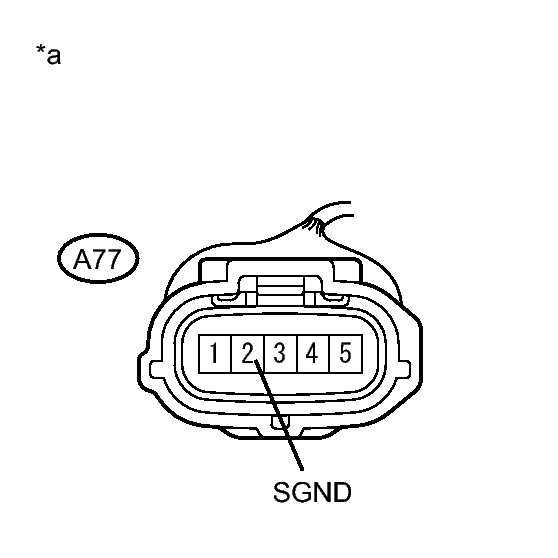

Tester Connection Condition Specified Condition A77-2 (SGND) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - BODY GROUND)
OK: Go to next step
- Measure the resistance according to the value(s) in the table below.
- REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
- Replace the millimeter wave radar sensor assembly. Refer to REMOVAL .
- Adjust the millimeter wave radar sensor assembly. Refer to ADJUSTMENT .
NEXT: Go to next step
- CHECK FOR DTCs (DTC U0235)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG).
- Clear the DTCs. Refer to DTC CHECK / CLEAR .
- Perform the following to make sure that the DTC detection conditions are met.
HINT:
If the detection conditions are not met, the malfunction cannot be detected.
- Drive the vehicle at a speed for which radar cruise control operation is possible.
- Turn the cruise control system on using the cruise control switch (ON-OFF button).
- Push the cruise control switch to -/SET to begin control of vehicle speed using the cruise control system.
- Enter the following menus: Powertrain / Radar Cruise / Trouble Codes.
- Check for DTCs.
Result
Result Proceed to DTC is not output A DTC U0235 is output B
B → See step 6
A → END
- REPLACE DRIVING SUPPORT ECU ASSEMBLY. Refer to REMOVAL
