Hard Disk Drive: Installation: Installation
WARNING: This page is about a different variant/trim than selected.
- PRECAUTION NOTE:
When installing the hard disk drive, eliminate static electricity by touching the vehicle body to prevent components from being damaged.
- INSTALL HARD DISK DRIVE

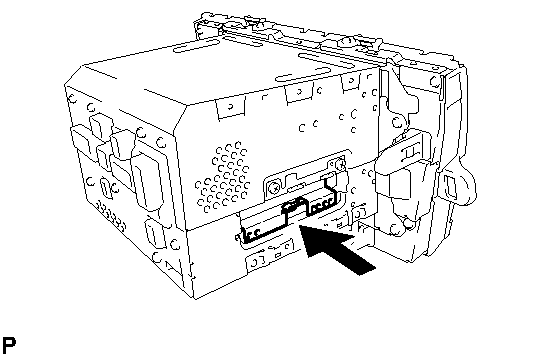

- Insert the hard disk drive in the direction shown by the arrow in the illustration to install it.
- Engage the 2 guides to temporarily install the cover.
- Install the cover with the 2 screws.
- INSTALL NO. 2 RADIO BRACKET See step 4
- INSTALL NAVIGATION RECEIVER WITH BRACKET See step 6
- INSTALL UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 27
- INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH . Refer to INSTALLATION - Step 28
- INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 30
- INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY . Refer to INSTALLATION - Step 31
- CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- INSTALL REAR NO. 3 FLOOR BOARD UPPER PLATE . Refer to INSTALLATION - Step 3
- INSTALL DECK FLOOR BOX RH . Refer to INSTALLATION - Step 4
- INSTALL REAR NO. 3 FLOOR BOARD . Refer to INSTALLATION - Step 55
- INSPECT HARD DISK DRIVE
Refer to OPERATION CHECK
