Navigation Antenna: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE UPPER INSTRUMENT PANEL ASSEMBLY
Refer to REMOVAL
REMOVE NO. 3 HEATER TO REGISTER DUCT . Refer to DISASSEMBLY - Step 1
REMOVE NAVIGATION ANTENNA ASSEMBLY
1. Disengage the 5 clamps.

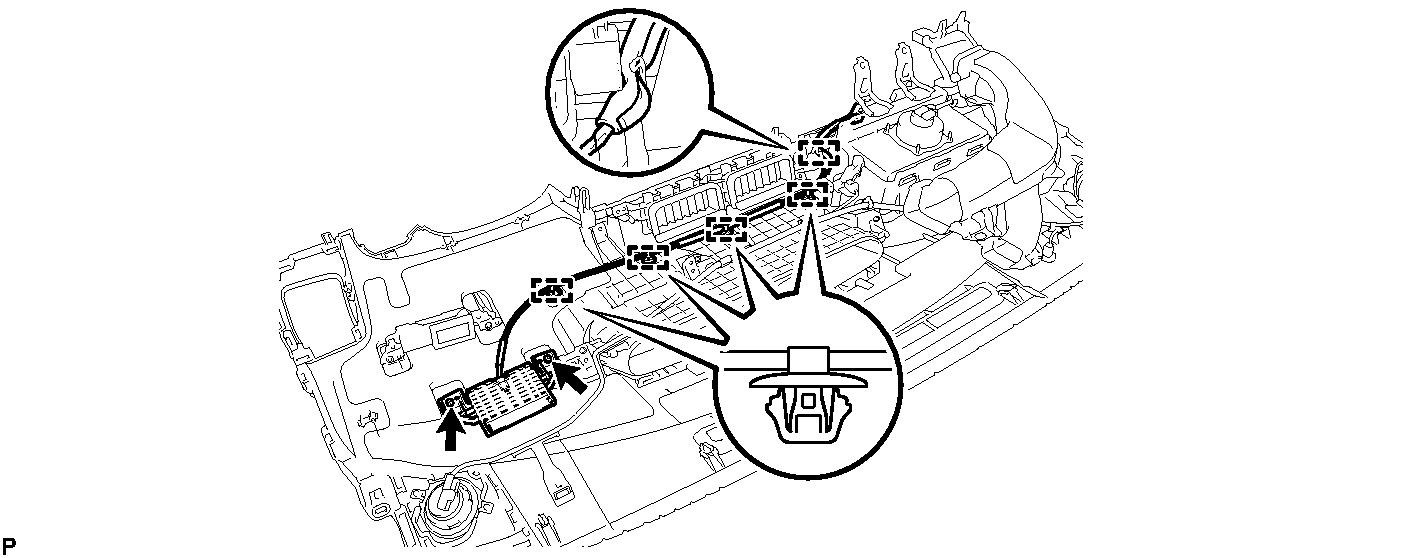

  Fig 1: Identifying Navigation Antenna Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 screws and navigation antenna assembly.
