Steering Wheel: Components: Illustration

Fig 1: Steering Column Assembly Replacement With Torque Specifications (1 Of 6)
GTY229863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

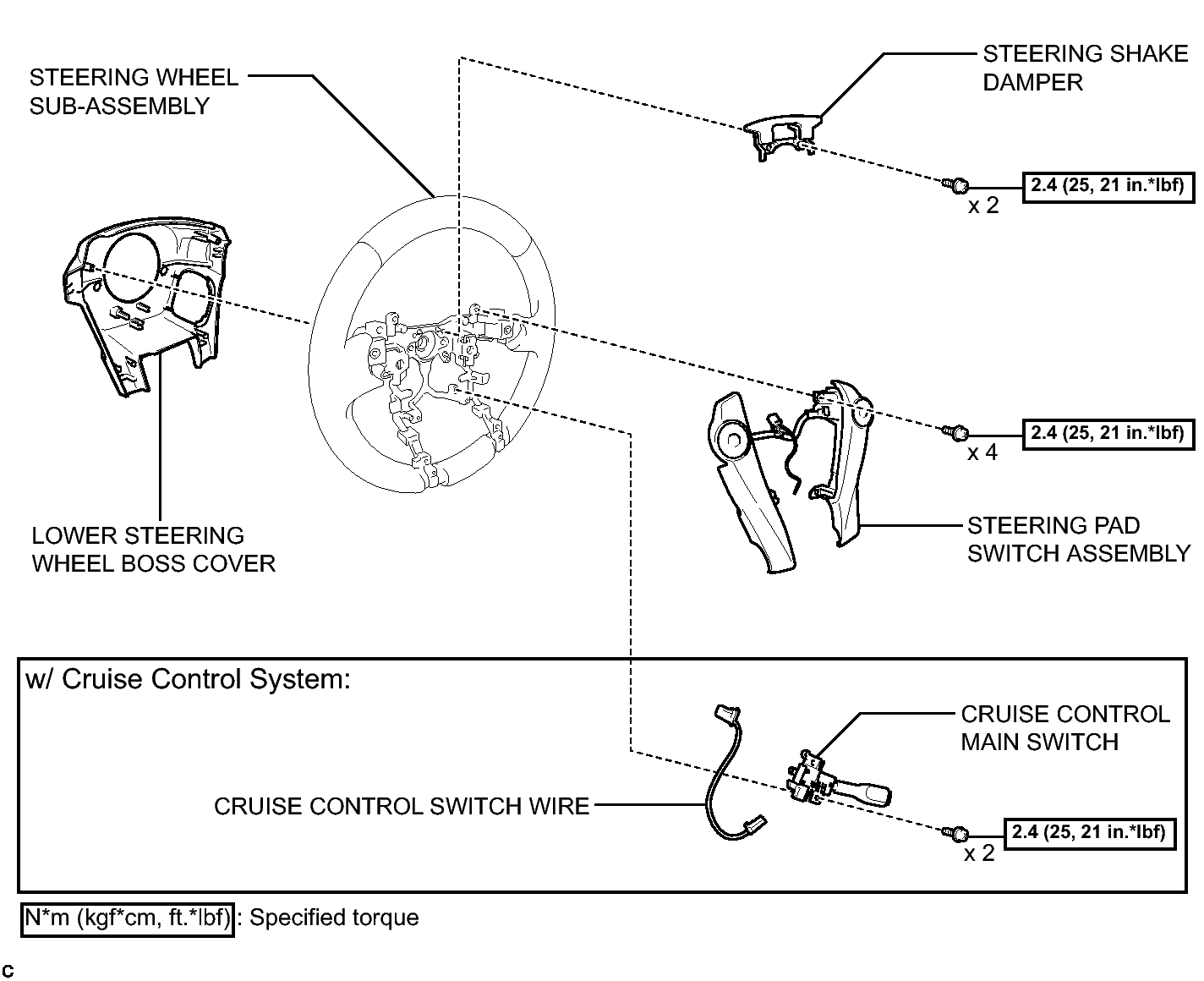

Fig 1: Identifying Steering Wheel Replacement Components With Torque Specifications (2 Of 2)
GTY222681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
