Back Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

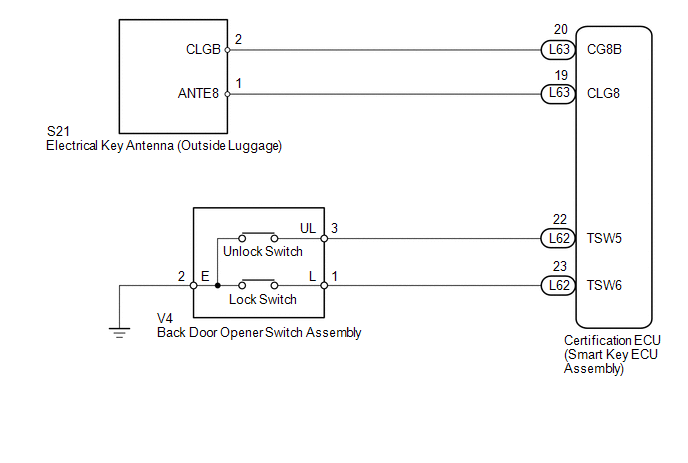

Fig 1: Back Door Entry Lock And Unlock Functions Wiring Diagram
GTY332947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
