DTC B27A8: Open in Outside Luggage Compartment Electrical Key Antenna Circuit: Wiring Diagram

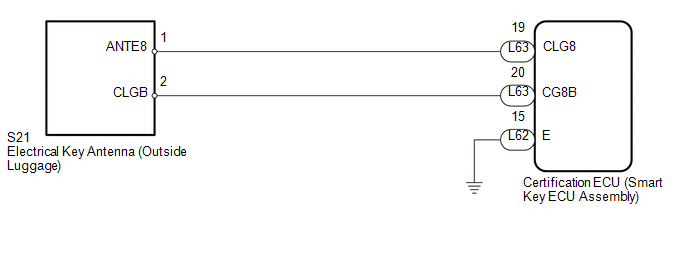

Fig 1: Outside Luggage Compartment Electrical Key Antenna Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
