DTC B2275: STSW Monitor Malfunction: Wiring Diagram

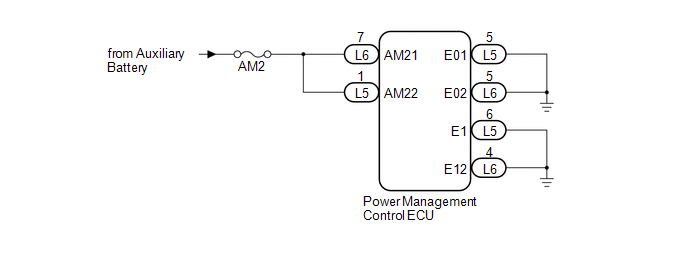

Fig 1: AM2 Fuse Circuit Wiring Diagram
GTY333130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
