DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction: Procedure
- CHECK DTC
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Clear the DTCs. Refer to DTC CHECK / CLEAR
.
HINT:
- First clear the DTCs stored in the occupant detection ECU, and then clear the DTCs stored in the center airbag sensor assembly.
- Use the Techstream to clear the DTCs of the occupant detection ECU, otherwise the DTCs cannot be cleared.
- Turn the power switch off.
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Check for DTCs. Refer to DTC CHECK / CLEAR
.
OK
DTC B1793 is not output.
HINT:
DTCs other than DTC B1793 may be output at this time, but they are not related to this check.
NG → See step 2
OK → See step 13
- CHECK CONNECTION OF CONNECTOR
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
- Check that the connectors are properly connected to the occupant detection ECU and occupant classification sensors.
OK
Connectors are properly connected.
NG → CONNECT CONNECTOR
OK: Go to next step
- CHECK CONNECTOR
- Disconnect the connectors from the occupant detection ECU and 4 occupant classification sensors.
- Check that the connectors (on the occupant detection ECU side and occupant classification sensor side) are not damaged. Refer to DIAGNOSIS SYSTEM
.
OK
Connectors are not deformed or damaged.
NG → See step 14
OK: Go to next step
- CHECK FRONT SEAT WIRE RH (OCCUPANT CLASSIFICATION SENSOR - OCCUPANT DETECTION ECU)
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.TEXT IN ILLUSTRATION

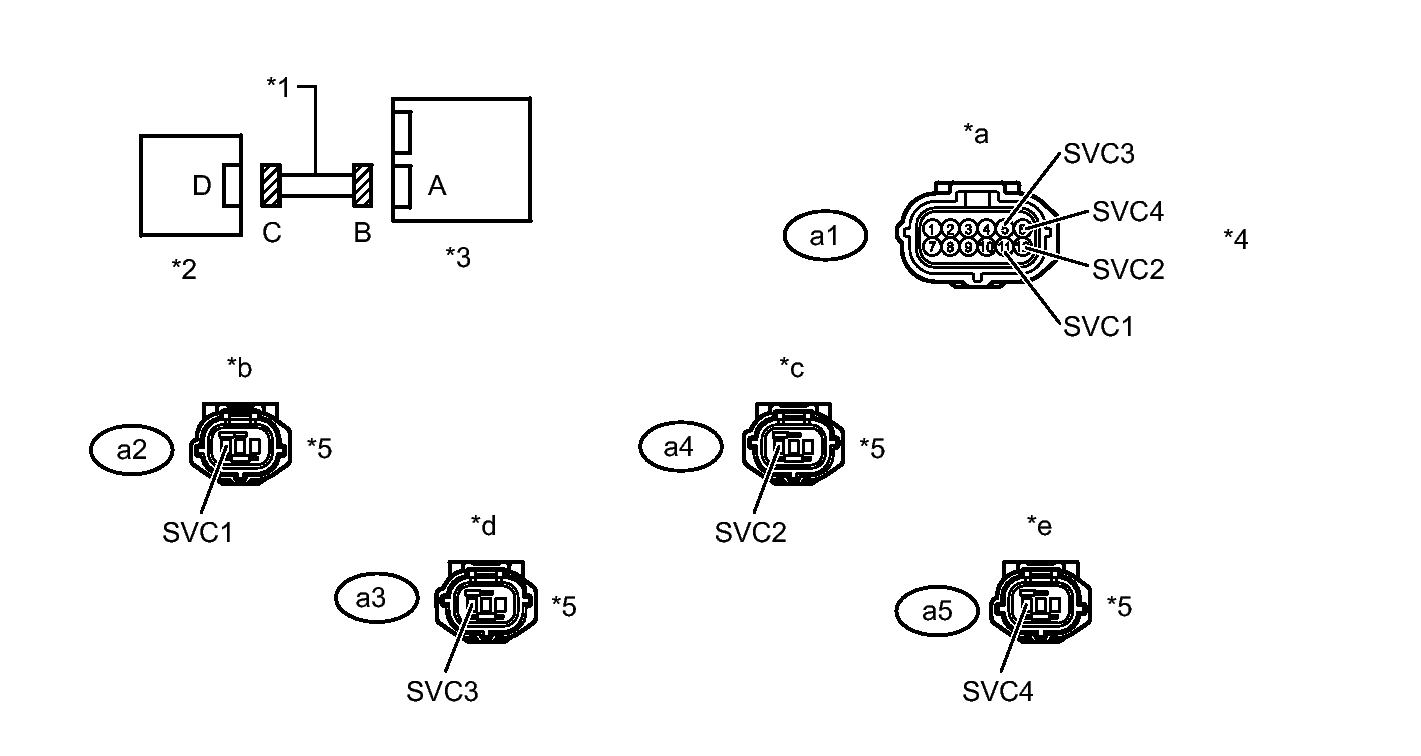

*1 Front Seat Wire RH *2 Occupant Classification Sensor *3 Occupant Detection ECU *4 Connector B *5 Connector C - - *a Front view of wire harness connector
(to Occupant Detection ECU)*b Front view of wire harness connector
(to Front Occupant Classification Sensor LH)*c Front view of wire harness connector
(to Front Occupant Classification Sensor RH)*d Front view of wire harness connector
(to Rear Occupant Classification Sensor LH)*e Front view of wire harness connector
(to Rear Occupant Classification Sensor RH)- - - Turn the power switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition a1-11 (SVC1) - Body ground Power switch on (IG) Below 1 V a1-12 (SVC2) - Body ground a1-5 (SVC3) - Body ground a1-6 (SVC4) - Body ground - Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition a1-11 (SVC1) - a2-1 (SVC1) Always Below 1 Ω a1-12 (SVC2) - a4-1 (SVC2) a1-5 (SVC3) - a3-1 (SVC3) a1-6 (SVC4) - a5-1 (SVC4) a1-11 (SVC1) - a1-12 (SVC2) Always 1 MΩ or higher a1-11 (SVC1) - a1-5 (SVC3) a1-11 (SVC1) - a1-6 (SVC4) a1-12 (SVC2) - a1-5 (SVC3) a1-12 (SVC2) - a1-6 (SVC4) a1-5 (SVC3) - a1-6 (SVC4) a1-11 (SVC1) - Body ground a1-12 (SVC2) - Body ground a1-5 (SVC3) - Body ground a1-6 (SVC4) - Body ground
NG → See step 14
OK: Go to next step
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- CHECK DTC
- Connect the connectors to occupant detection ECU and 4 occupant classification sensors.
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Clear the DTCs. Refer to DTC CHECK / CLEAR
.
HINT:
- First clear the DTCs stored in the occupant detection ECU, and then clear the DTCs stored in the center airbag sensor assembly.
- Use the Techstream to clear the DTCs of the occupant detection ECU, otherwise the DTCs cannot be cleared.
- Turn the power switch off.
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Check for DTCs. Refer to DTC CHECK / CLEAR
.
OK
DTC B1793 is not output.
HINT:
DTCs other than DTC B1793 may be output at this time, but they are not related to this check.
NG → See step 6
OK → See step 13
- REPLACE OCCUPANT DETECTION ECU
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
- Replace the occupant detection ECU. Refer to REMOVAL
.
HINT:
Perform the inspection using parts from a normal vehicle when possible.
NEXT: Go to next step
- PERFORM ZERO POINT CALIBRATION
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- Turn the power switch on (IG).
- Perform the zero point calibration. Refer to INITIALIZATION .
NG → See step 10
OK: Go to next step
- PERFORM SENSITIVITY CHECK
- Perform the sensitivity check. Refer to INITIALIZATION .
NG → See step 10
OK: Go to next step
- CHECK DTC
- Clear the DTCs. Refer to DTC CHECK / CLEAR
.
HINT:
- First clear the DTCs stored in the occupant detection ECU, and then clear the DTCs stored in the center airbag sensor assembly.
- Use the Techstream to clear the DTCs of the occupant detection ECU, otherwise the DTCs cannot be cleared.
- Turn the power switch off.
- Turn the power switch on (IG), and wait for at least 60 seconds.
- Check for DTCs. Refer to DTC CHECK / CLEAR
.
OK
DTC B1793 is not output.
HINT:
DTCs other than DTC B1793 may be output at this time, but they are not related to this check.
NG → See step 10
OK → END (OCCUPANT DETECTION ECU WAS DEFECTIVE)
- Clear the DTCs. Refer to DTC CHECK / CLEAR
.
- REPLACE FRONT SEAT ASSEMBLY RH
- Turn the power switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
- Replace the front seat assembly RH. Refer to REMOVAL
.
HINT:
Perform the inspection using parts from a normal vehicle when possible.
NEXT: Go to next step
- PERFORM ZERO POINT CALIBRATION
- Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
- Turn the power switch on (IG).
- Perform the zero point calibration. Refer to INITIALIZATION .
NEXT: Go to next step
- PERFORM SENSITIVITY CHECK
- Perform the sensitivity check. Refer to INITIALIZATION .
NEXT → END (FRONT SEAT ASSEMBLY RH WAS DEFECTIVE)
- USE SIMULATION METHOD TO CHECK. Refer to DIAGNOSIS SYSTEM
- REPLACE FRONT SEAT WIRE RH. Refer to DISASSEMBLY
