Steering Column Assembly: Reassembly: Reassembly

1. Apply grease to the spline part of the electric power steering column sub-assembly.
2. Install the power steering motor assembly with the 2 bolts.

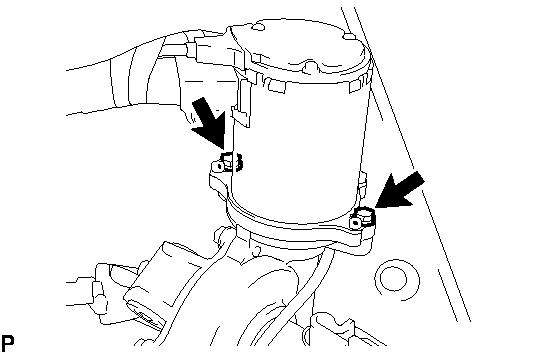

   Fig 1: Locating Power Steering Motor Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

3. Place new heat resistant tape as shown in the illustration.

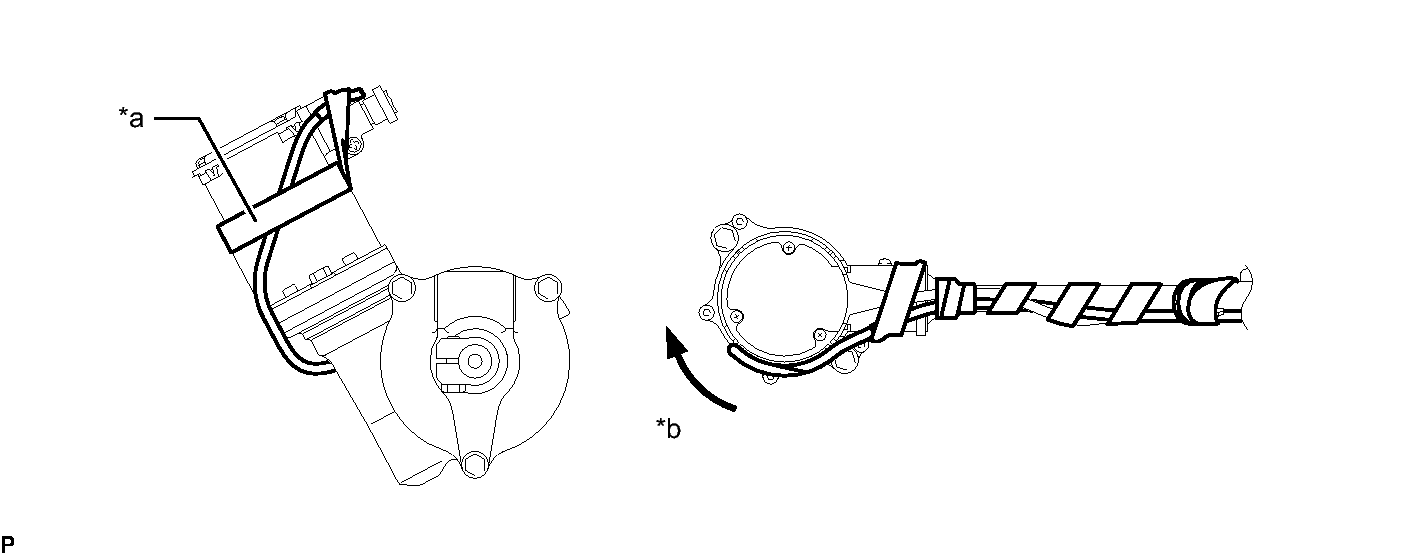

   Fig 2: Applying Heat Resistant Tape

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a

   Wrap heat resistant tape around the motor twice

   *b

   Wrapping direction of heat resistant tape

   NOTE:

   As heat from the power steering motor assembly may generate smoke, use heat resistant tape (resistant to 100°C (212°F) or higher).

HINT:

When replacing the steering lock actuator assembly, perform the key registration. Refer to REGISTRATION .

1. Temporarily install the steering lock actuator assembly with a new tapered-head bolt.
   NOTE:

   Be sure to use a new tapered-head bolt.

2. Tighten the tapered-head bolt until the bolt head breaks off.

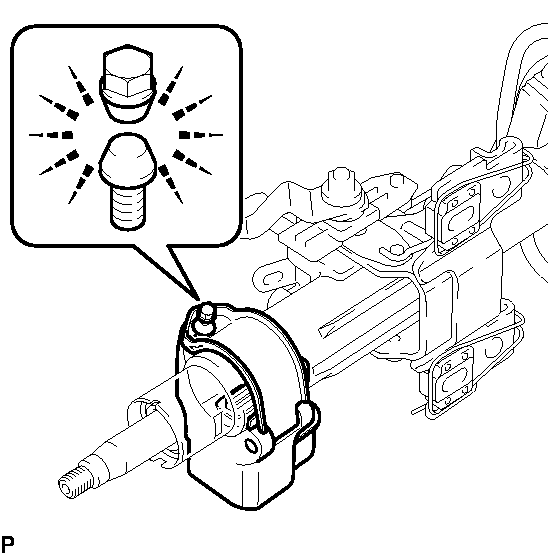

   Fig 3: Installing Tapered-Head Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
