Steering Lock Motor Drive Power Circuit: Procedure
- CHECK FOR DTC OUTPUT
- Check for DTCs. Refer to DTC CHECK / CLEAR
.
OK
DTC output does not occur.
NG → See step 10
OK: Go to next step
- Check for DTCs. Refer to DTC CHECK / CLEAR
.
- READ VALUE USING TECHSTREAM (LOCK/UNLOCK RECEIVE)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG) and turn the Techstream on.
- Select the item "Lock/Unlock Receive" in the Data List within 10 seconds of starting the EV system and read the value displayed on the Techstream.SMART KEY
Tester Display Measurement Item / Range Normal Condition Diagnostic Note Lock/Unlock Receive Steering lock command reception record/Yes or No Yes: Steering lock/unlock signal received
No: Steering lock/unlock signal not received- OK
Yes is displayed on the Techstream screen.
NG → See step 5
OK: Go to next step
- CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY)
- Measure the resistance and voltage according to the value(s) in the table below.
Standard Resistance
Standard Voltage

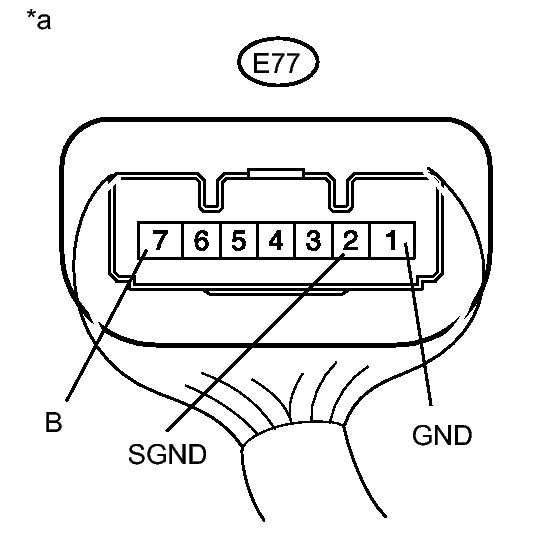

Tester Connection Condition Specified Condition E77-1 (GND) - Body ground Always Below 1 Ω E77-2 (SGND) - Body ground Always Below 1 Ω Tester Connection Condition Specified Condition E77-7 (B) - E77-1 (GND) Always 11 to 14 V E77-7 (B) - E77-2 (SGND) Always 11 to 14 V TEXT IN ILLUSTRATION*a Component with harness connected
(Steering Lock ECU (Steering Lock Actuator Assembly))
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Measure the resistance and voltage according to the value(s) in the table below.
- CHECK STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY)

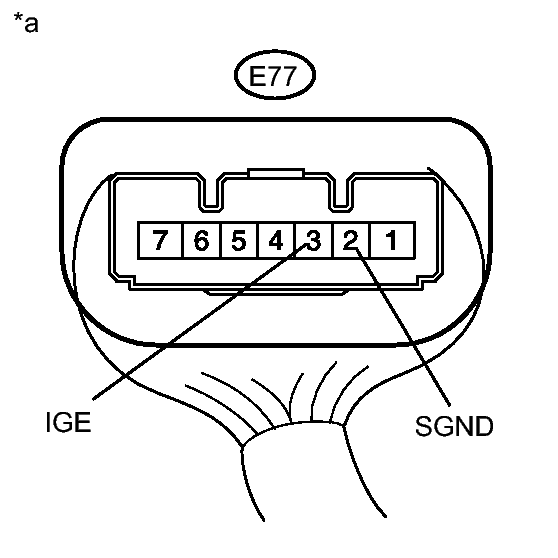

- Immediately after turning the power switch on (IG), inspect the voltage between terminals 3 (IGE) and 2 (SGND) of the steering lock ECU.RESULT
Result Proceed to Immediately after turning power switch on (IG), measurement is below 1 V. A Measurement is 11 to 14 V, and measurement never becomes below 1 V. B TEXT IN ILLUSTRATION*a Component with harness connected
(Steering Lock ECU (Steering Lock Actuator Assembly))
B → REPAIR OR REPLACE HARNESS OR CONNECTOR
A → See step 12
- Immediately after turning the power switch on (IG), inspect the voltage between terminals 3 (IGE) and 2 (SGND) of the steering lock ECU.
- READ VALUE USING TECHSTREAM (S CODE CHECK)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG) and turn the Techstream on.
- Select the item "S Code Check" in the Data List and read the value displayed on the Techstream.SMART KEY
Tester Display Measurement Item / Range Normal Condition Diagnostic Note S Code Check S code match record/NG or OK NG: S code not matched
OK: S code matched- RESULTResult Proceed to NG is displayed on the Techstream screen. A OK is displayed on the Techstream screen. B
B → See step 7
A: Go to next step
- CHECK OPERATION OF CERTIFICATION ECU (ECU AGGREGATION BOX ASSEMBLY)
- Replace the certification ECU (ECU aggregation box assembly) with a new one. Refer to REMOVAL
.NOTE:
When replacing the certification ECU (ECU aggregation box assembly), registration must be performed according to the "Registration" procedures. Refer to REGISTRATION .
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG) and turn the Techstream on.
- Check the Data List and read the value displayed on the Techstream screen.SMART KEY
Tester Display Measurement Item / Range Normal Condition Diagnostic Note S Code Check S code match record/NG or OK NG: S code not matched
OK: S code matched- OK
OK is displayed on the Techstream screen.
NG → See step 11
OK → END
- Replace the certification ECU (ECU aggregation box assembly) with a new one. Refer to REMOVAL
.
- READ VALUE USING TECHSTREAM (L CODE CHECK)
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG) and turn the Techstream on.
- Select the item "L Code Check" in the Data List and read the value displayed on the Techstream.SMART KEY
Tester Display Measurement Item / Range Normal Condition Diagnostic Note L Code Check L code match record/NG or OK NG: L code not matched
OK: L code matched- RESULTResult Proceed to NG is displayed on the Techstream screen. A OK is displayed on the Techstream screen. B
B → See step 9
A: Go to next step
- CHECK OPERATION OF ID CODE BOX (IMMOBILISER CODE ECU)
- Replace the ID code box (immobiliser code ECU) with a new one. Refer to REMOVAL
.NOTE:
When replacing the ID code box (immobiliser code ECU), registration must be performed according to the "Registration" procedures. Refer to REGISTRATION .
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG) and turn the Techstream on.
- Check the Data List and read the value displayed on the Techstream screen.SMART KEY
Tester Display Measurement Item / Range Normal Condition Diagnostic Note L Code Check L code match record/NG or OK NG: L code not matched
OK: L code matched- RESULTResult Proceed to NG is displayed on the Techstream screen. A OK is displayed on the Techstream screen. B
B → END
A: Go to next step
- Replace the ID code box (immobiliser code ECU) with a new one. Refer to REMOVAL
.
- CHECK OPERATION OF STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY)
- Replace the steering lock ECU (steering lock actuator assembly) with a new one. Refer to DISASSEMBLY
.NOTE:
When replacing the steering lock ECU (steering lock actuator assembly), registration must be performed according to the "Registration" procedures. Refer to REGISTRATION .
- Turn the power switch on (IG).
- Check the steering lock.
OK
Steering lock is released and EV system starts.
NG → See step 13
OK → END
- Replace the steering lock ECU (steering lock actuator assembly) with a new one. Refer to DISASSEMBLY
.
- GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to DIAGNOSTIC TROUBLE CODE CHART
- REPLACE ID CODE BOX (IMMOBILISER CODE ECU). Refer to REMOVAL
- REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY). Refer to DISASSEMBLY
- REPLACE CERTIFICATION ECU (ECU AGGREGATION BOX ASSEMBLY). Refer to REMOVAL
