Cruise Control, Hybrid Control System and Shift Control: Notes

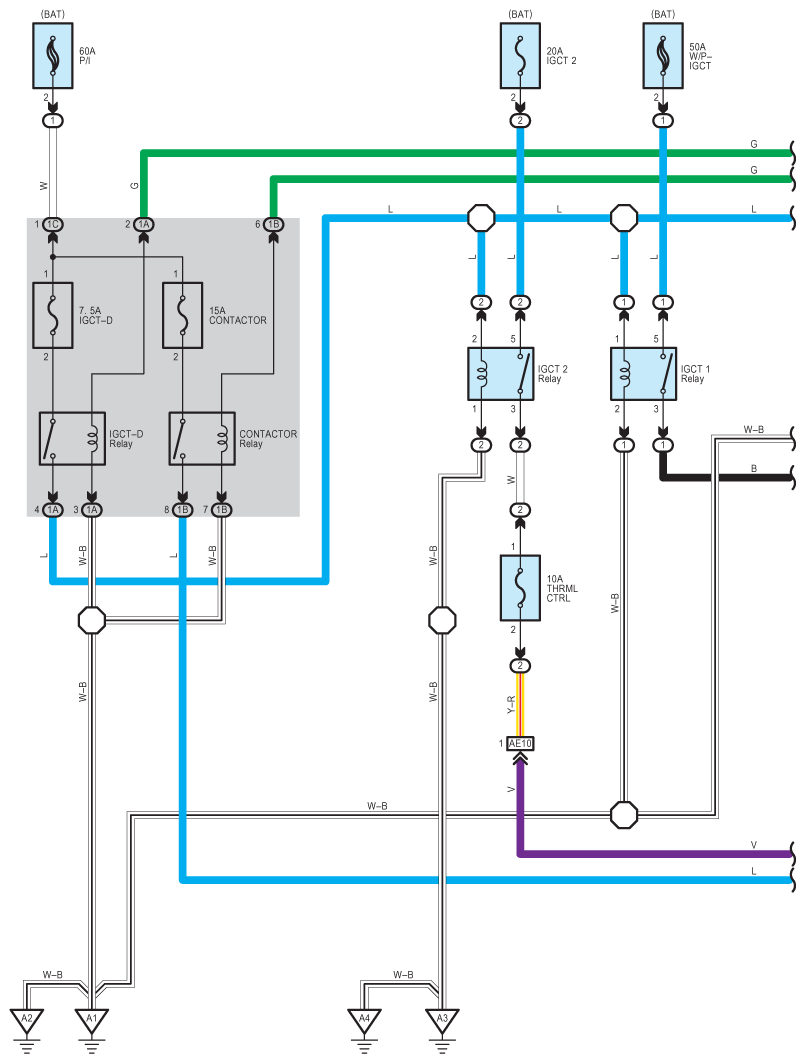

Fig 1: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (1 Of 33)

G09110492

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

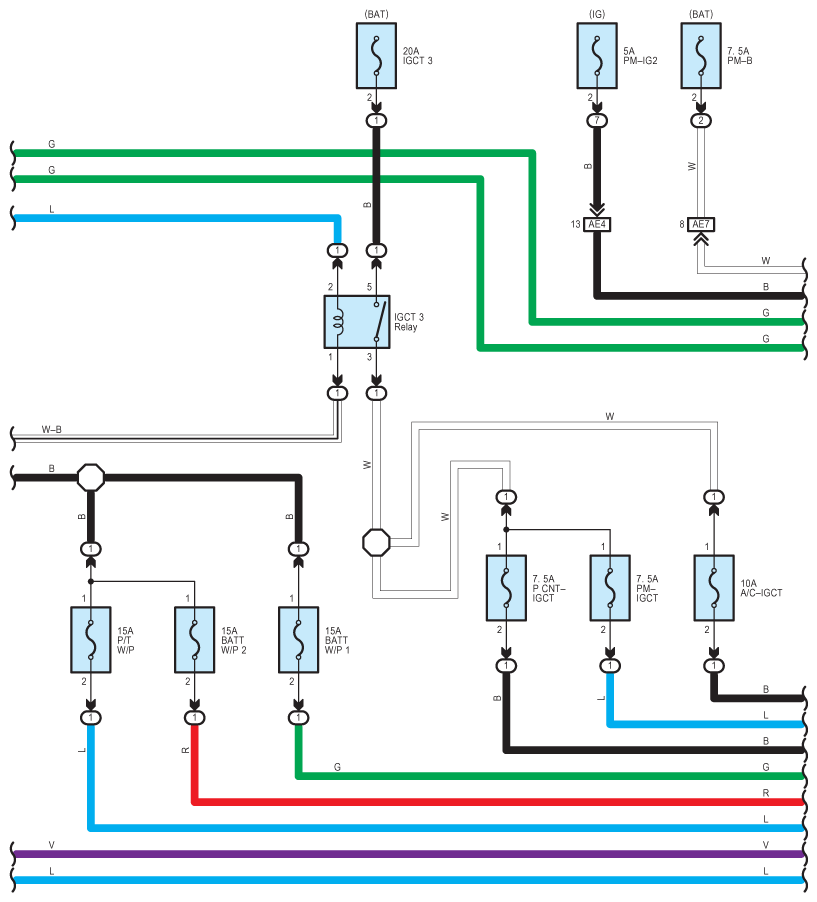

Fig 2: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (2 Of 33)

G09110493

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

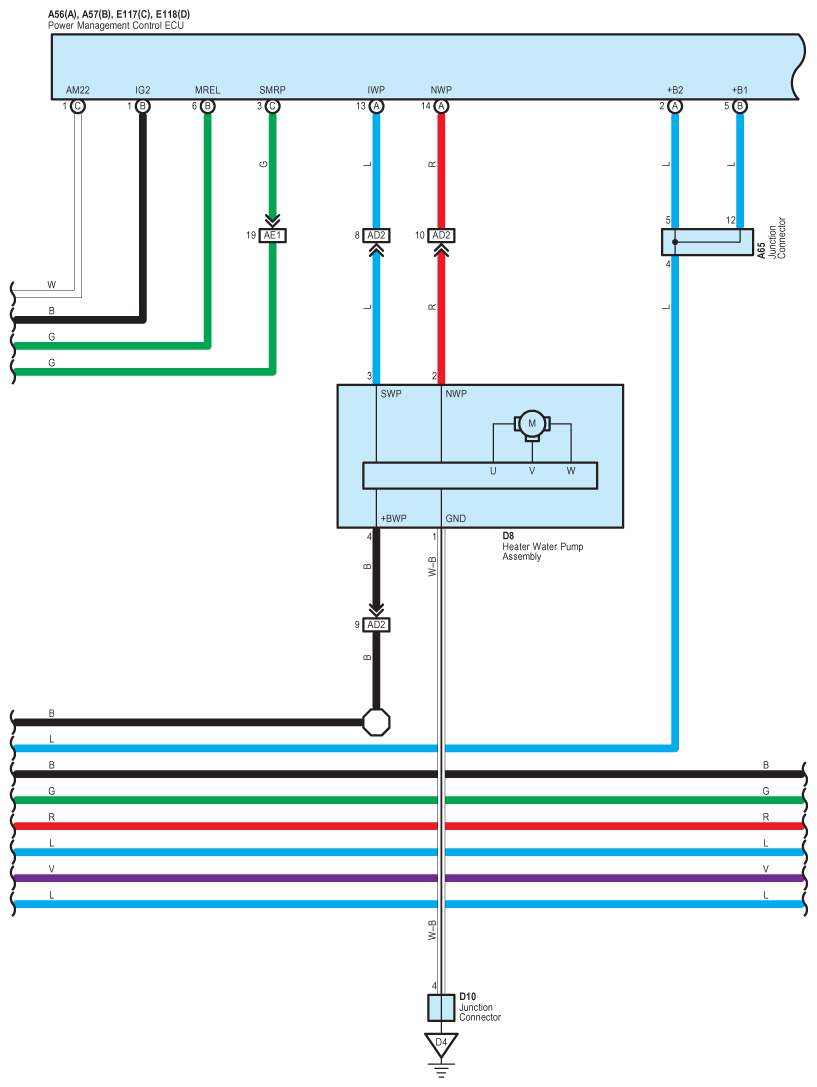

Fig 3: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (3 Of 33)

G09110494

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (4 Of 33)

G09110495

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

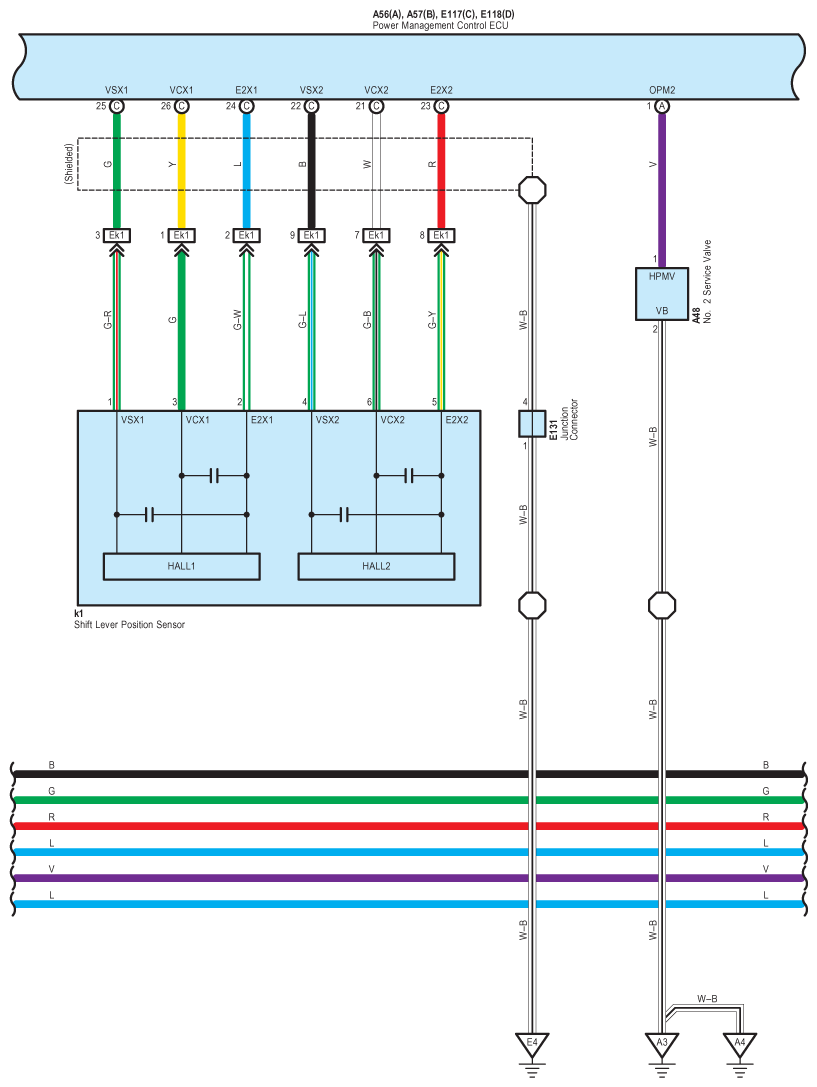

Fig 5: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (5 Of 33)

G09110496

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (6 Of 33)

G09110497

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

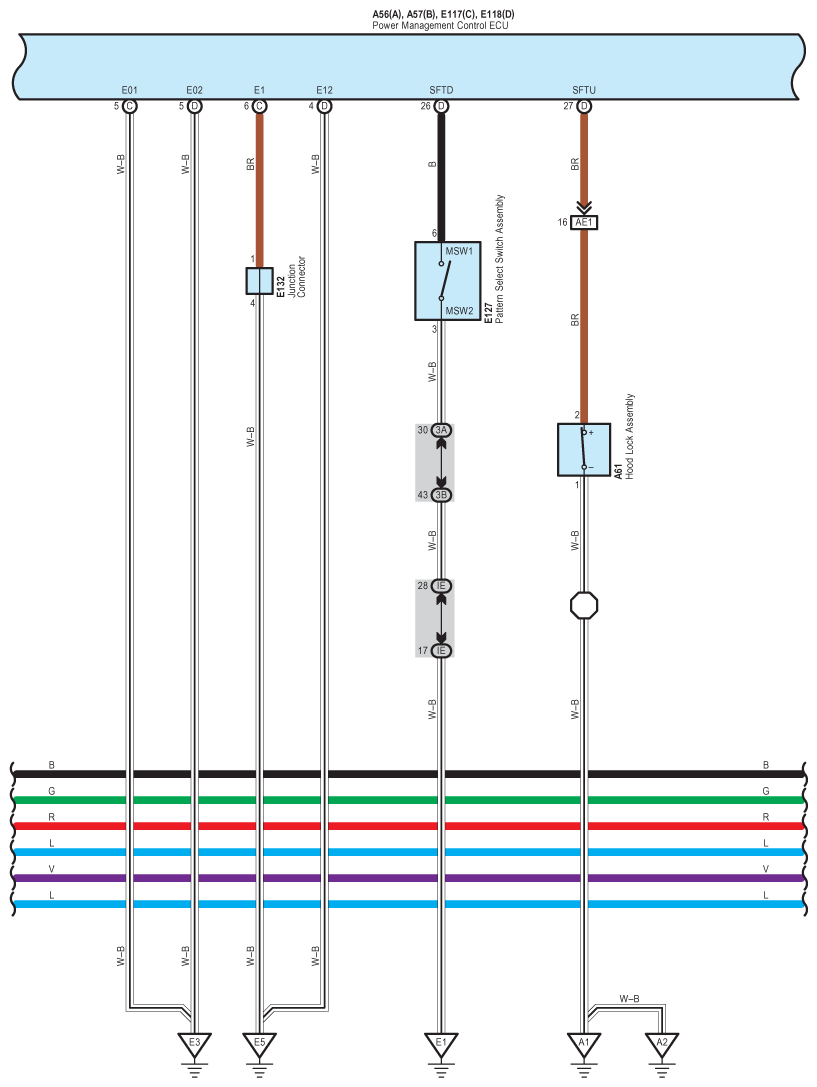

Fig 7: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (7 Of 33)

G09110498

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

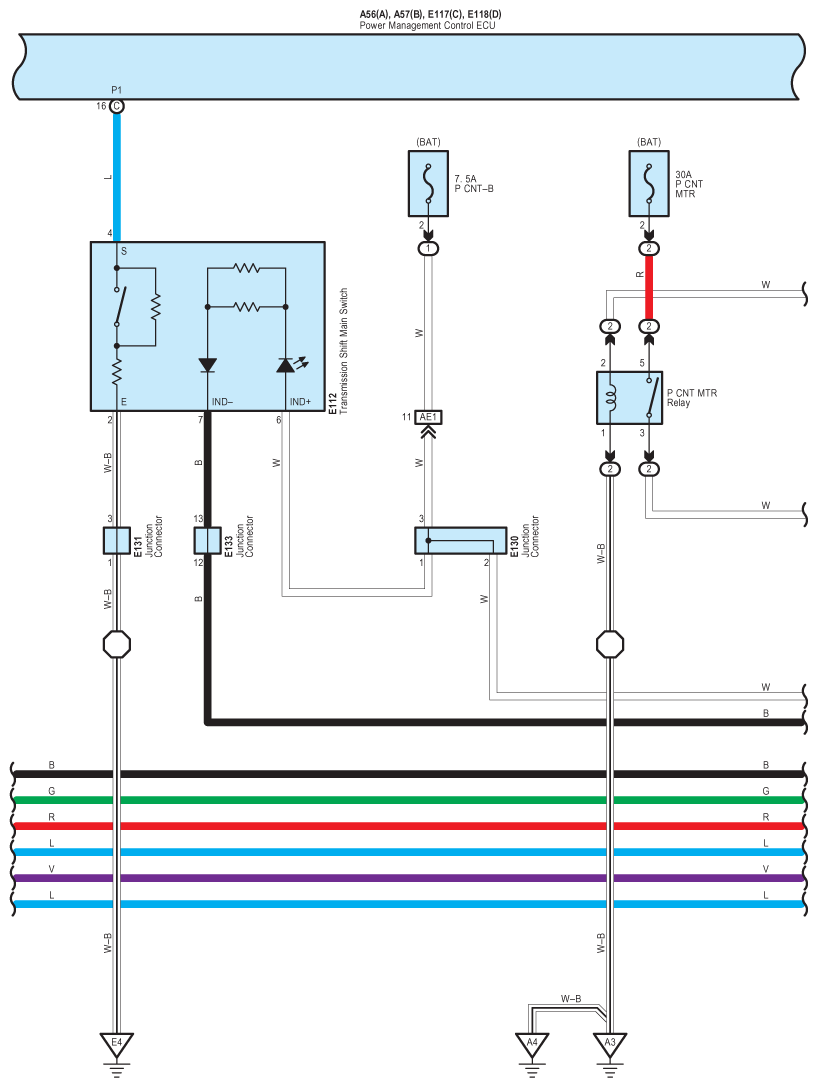

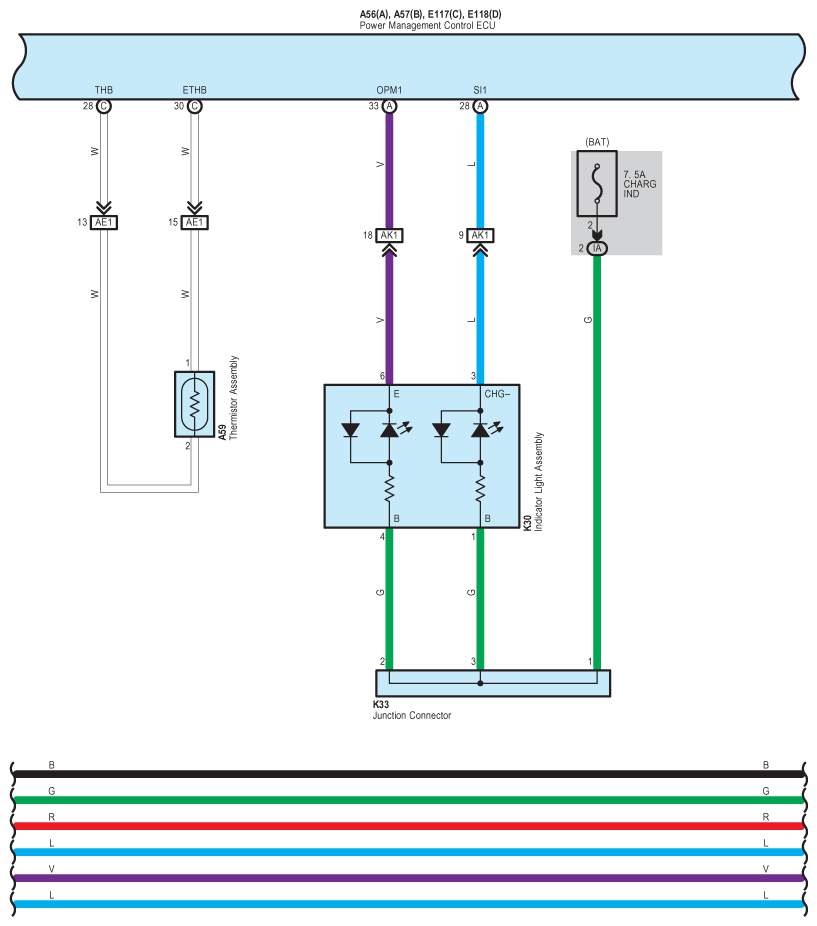

Fig 8: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (8 Of 33)

G09110499

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

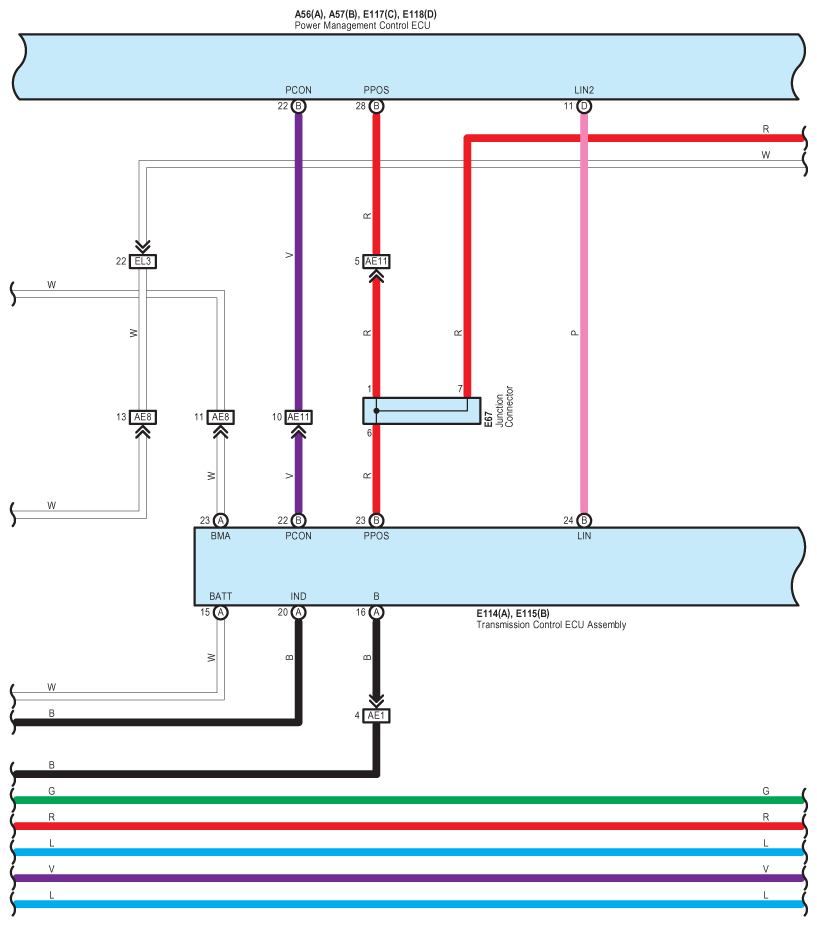

Fig 9: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (9 Of 33)

G09110500

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

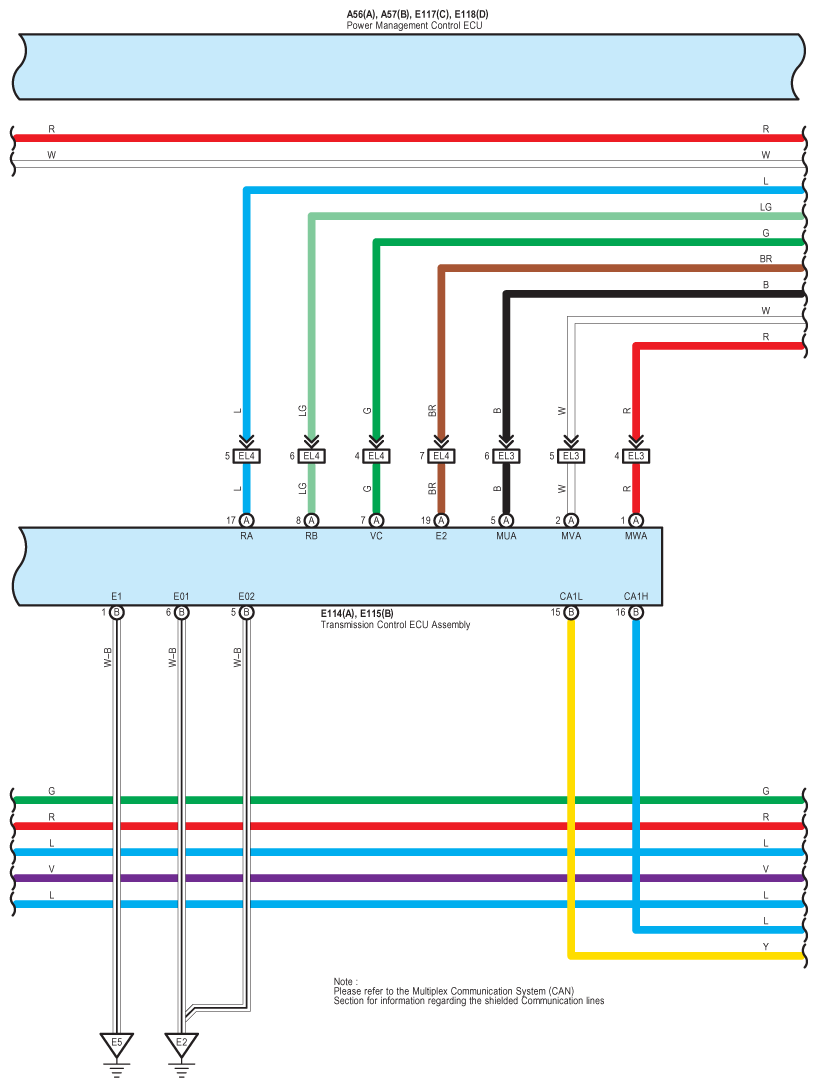

Fig 10: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (10 Of 33)

G09110501

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

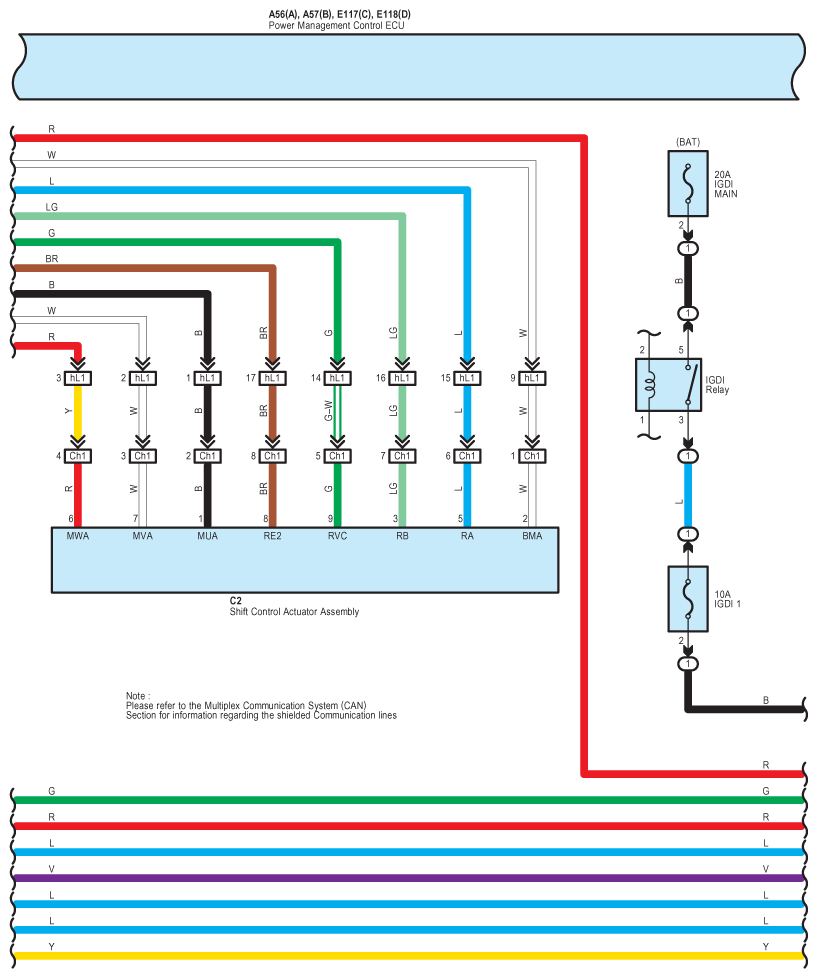

Fig 11: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (11 Of 33)

G09110502

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

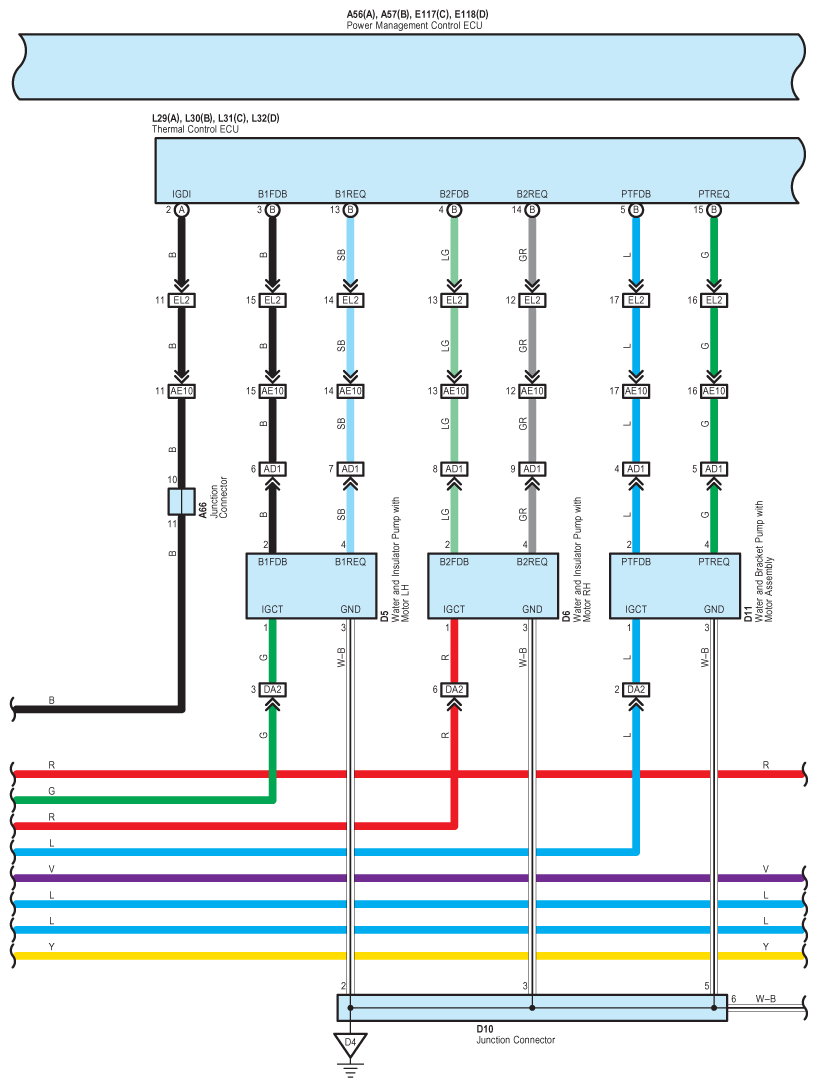

Fig 12: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (12 Of 33)

G09110503

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

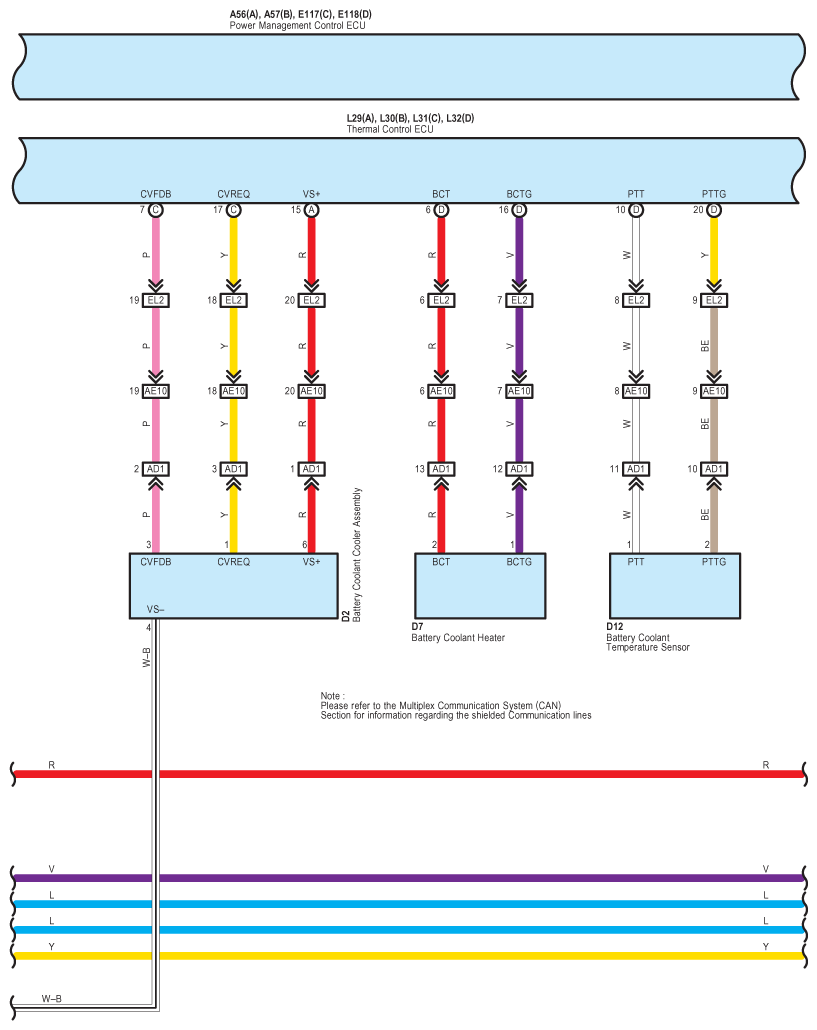

Fig 13: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (13 Of 33)

G09110504

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

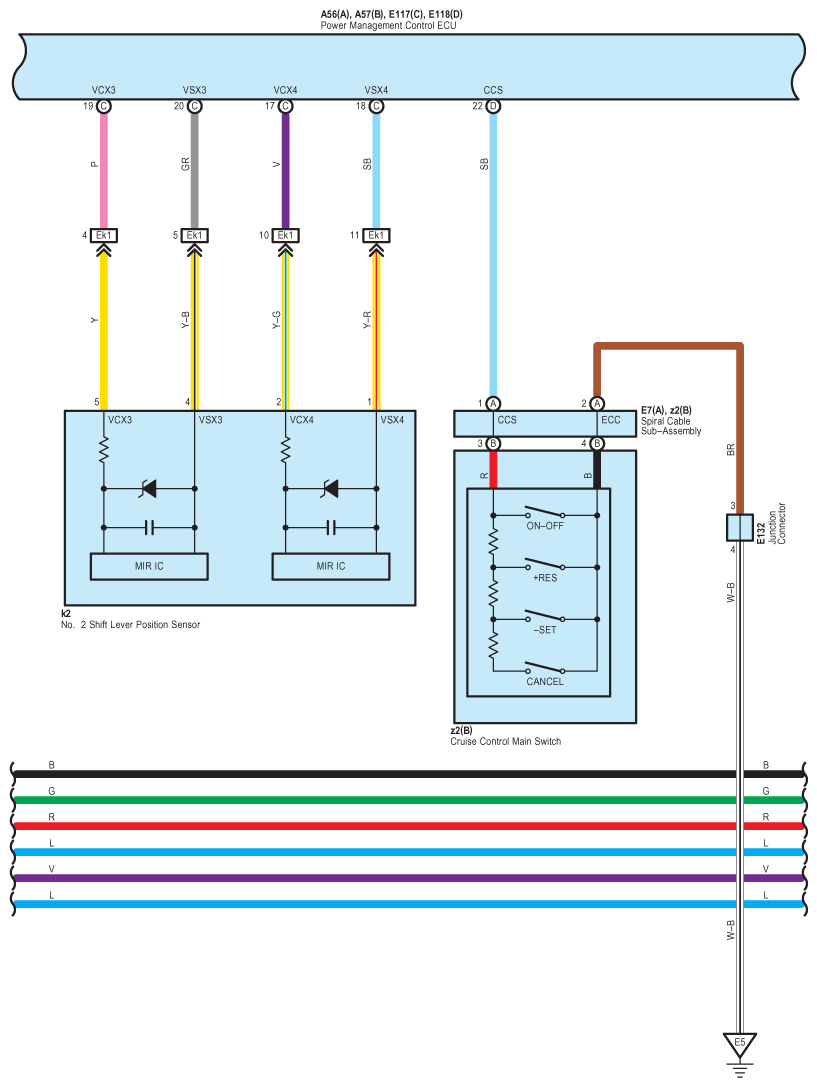

Fig 14: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (14 Of 33)

G09110505

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

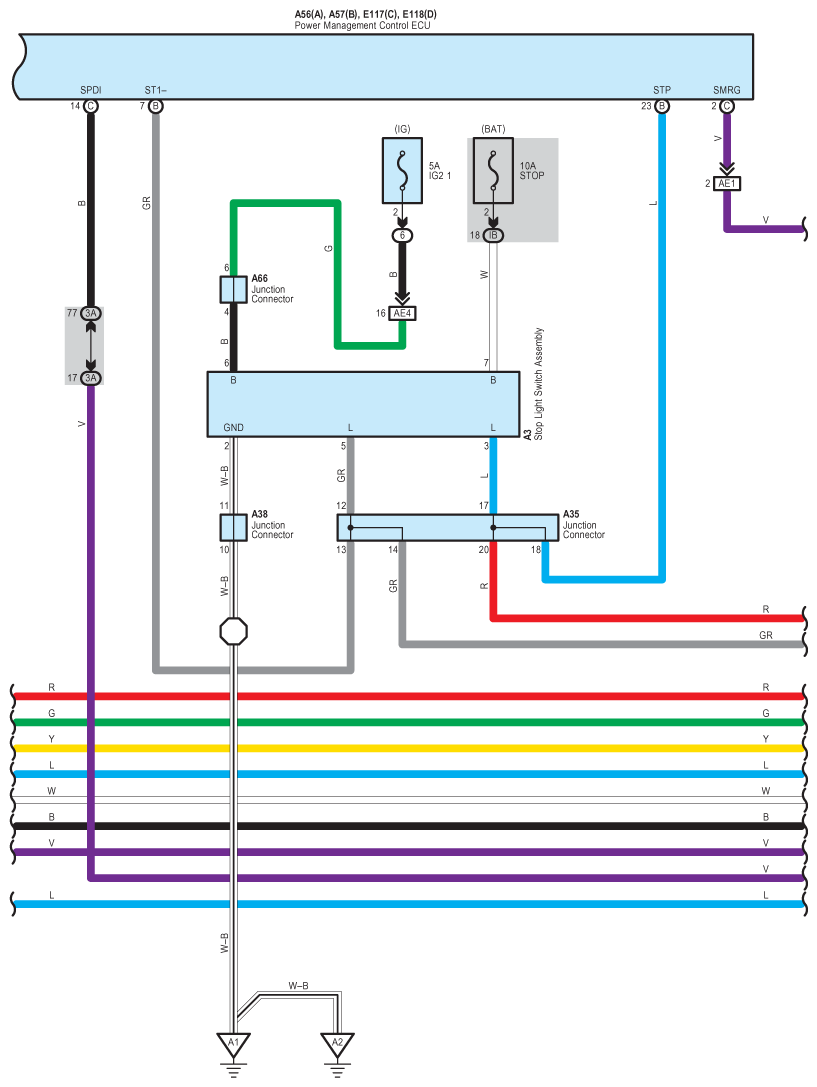

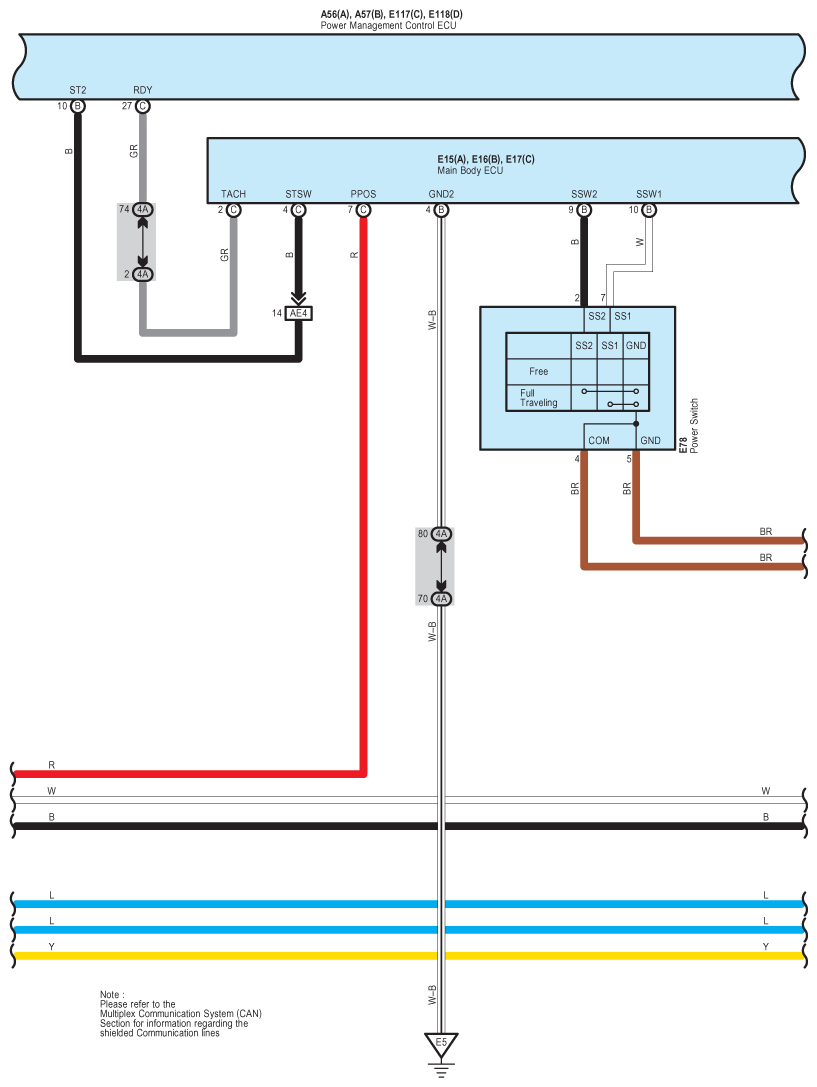

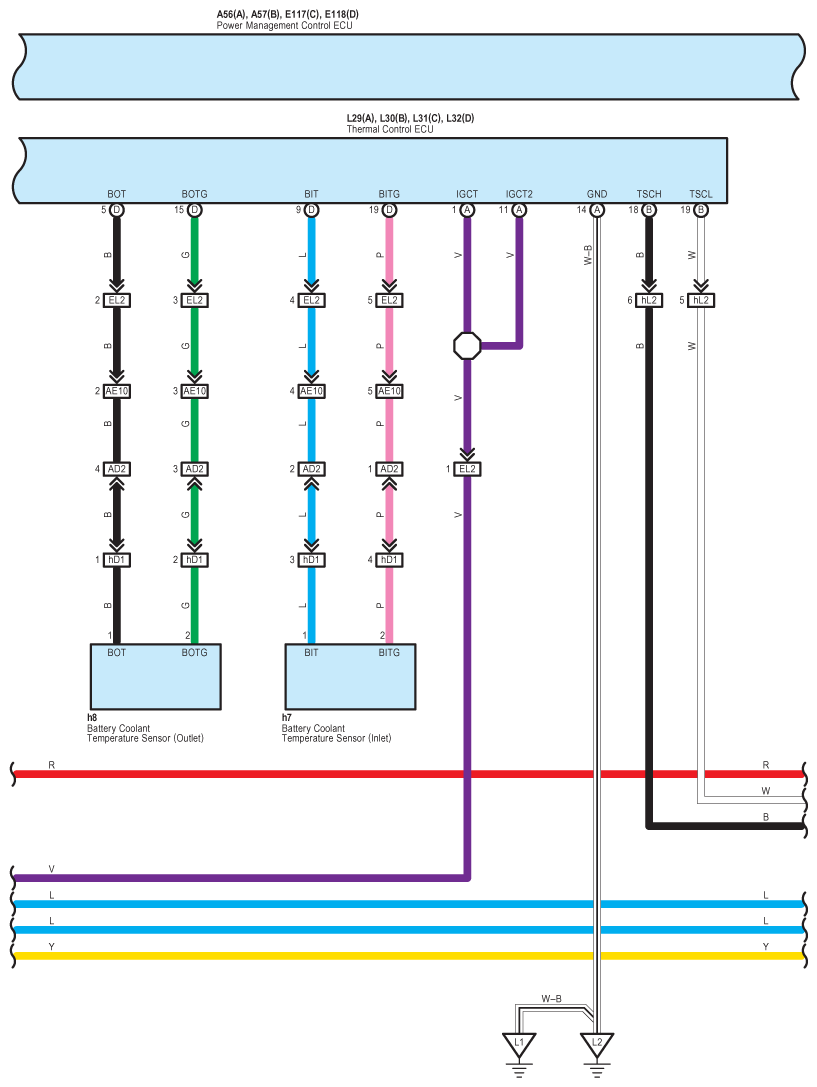

Fig 15: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (15 Of 33)

G09110506

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

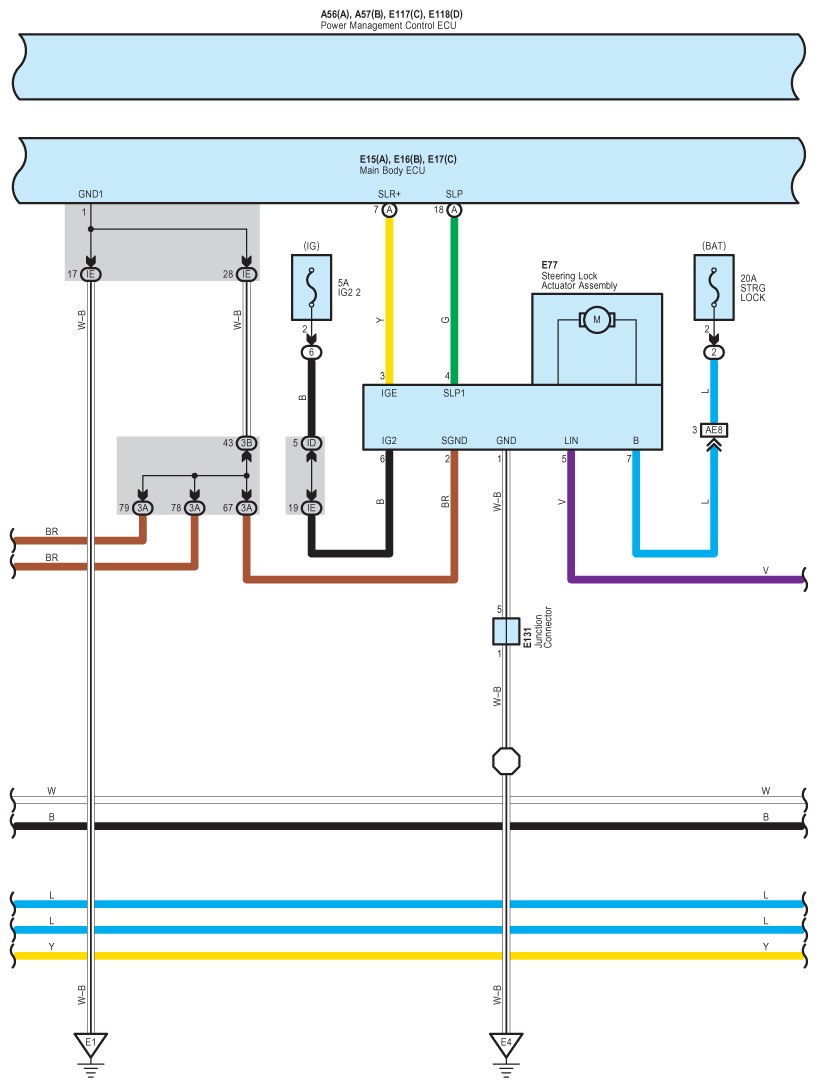

Fig 16: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (16 Of 33)

G09110507

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

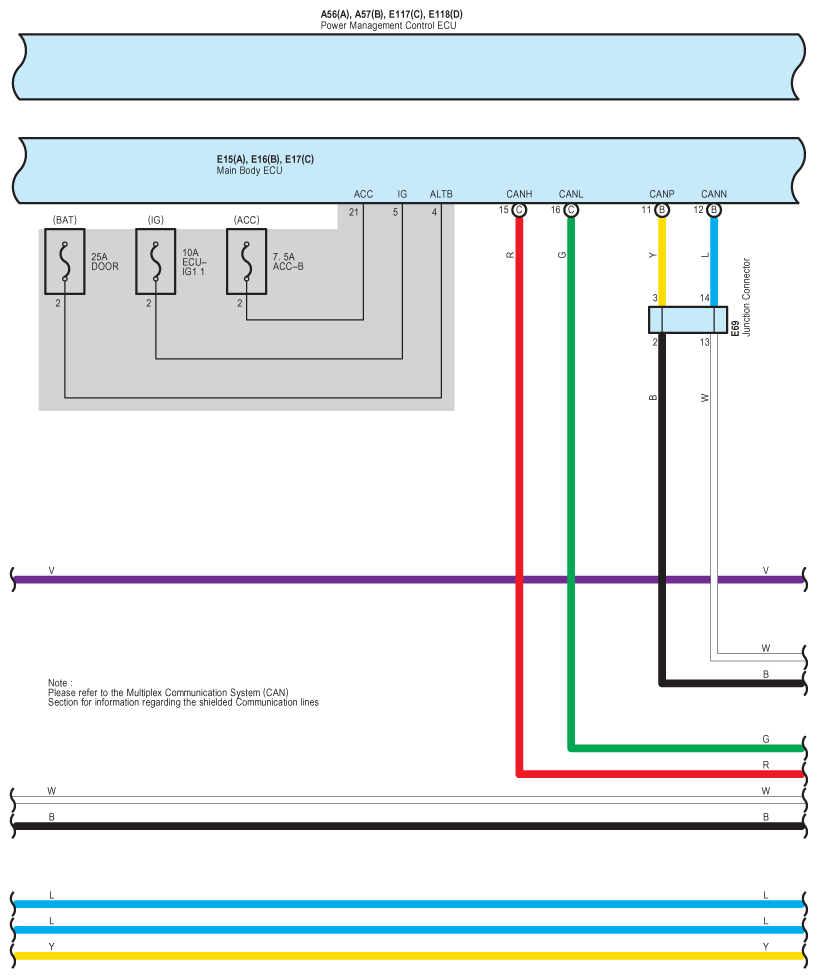

Fig 17: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (17 Of 33)

G09110508

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (18 Of 33)

G09110509

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

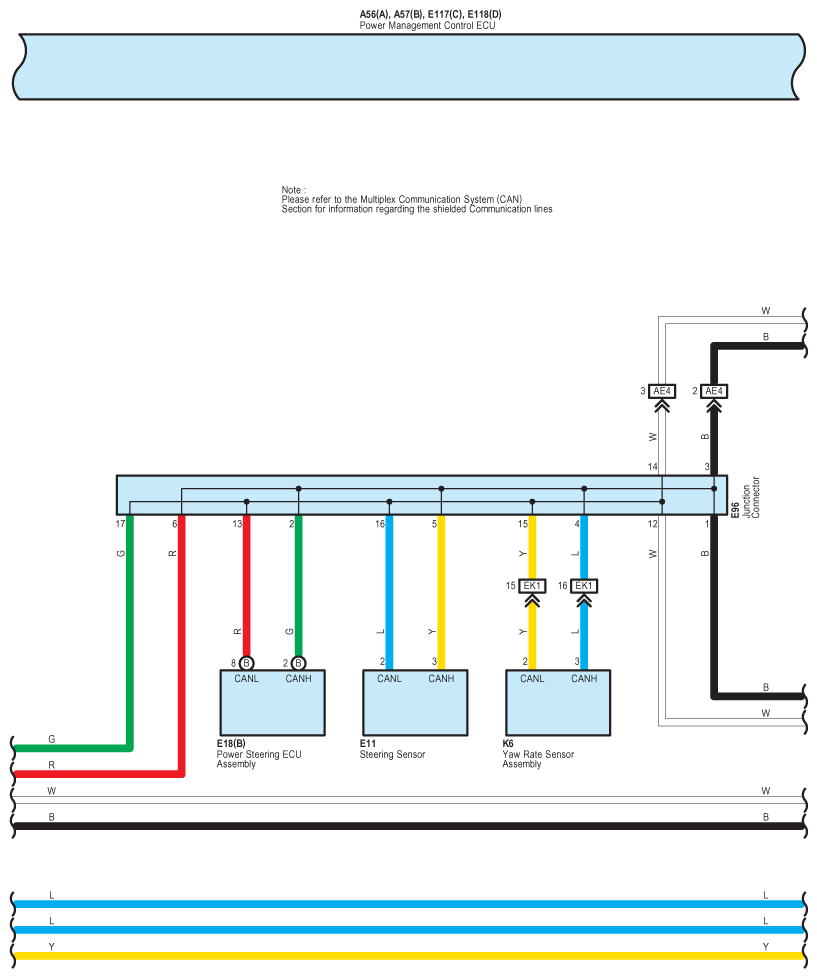

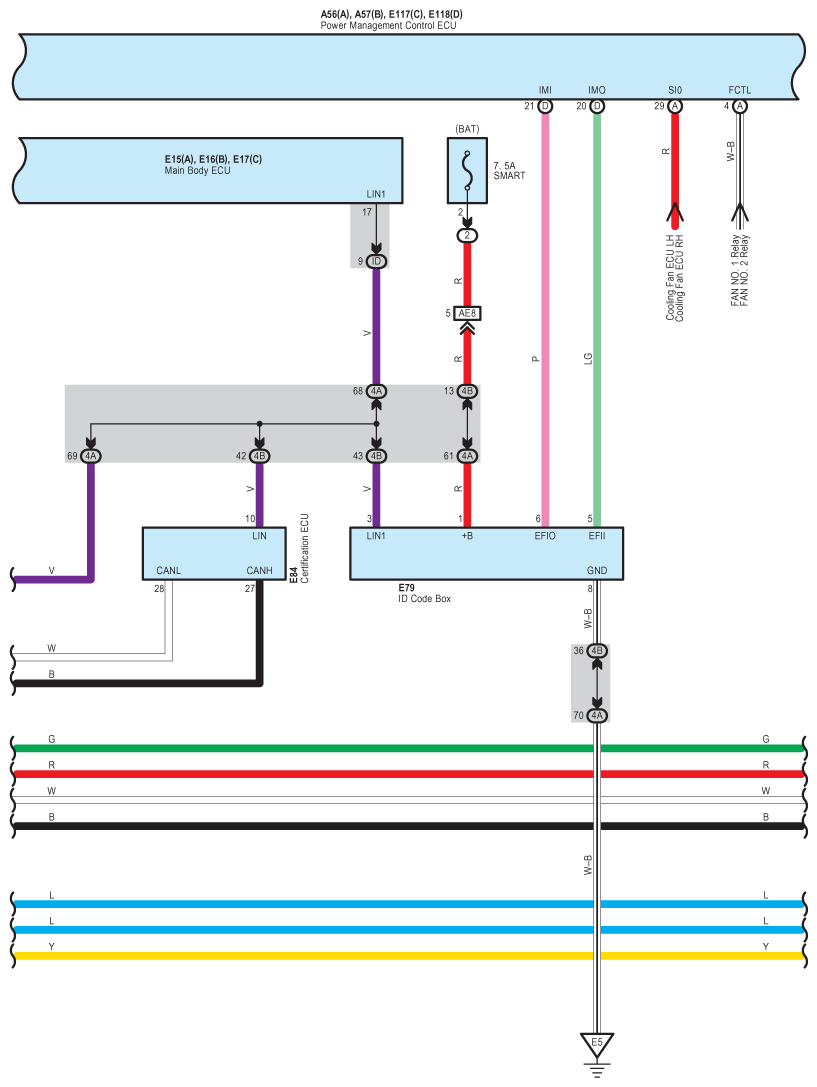

Fig 19: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (19 Of 33)

G09110510

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

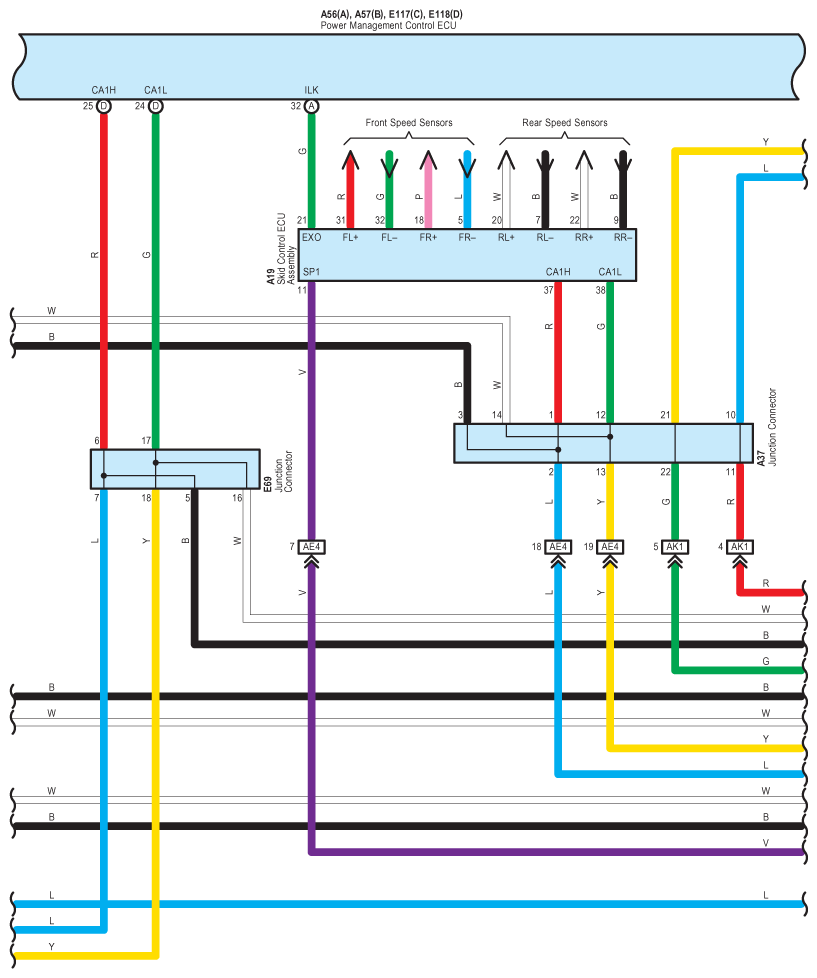

Fig 20: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (20 Of 33)

G09110511

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

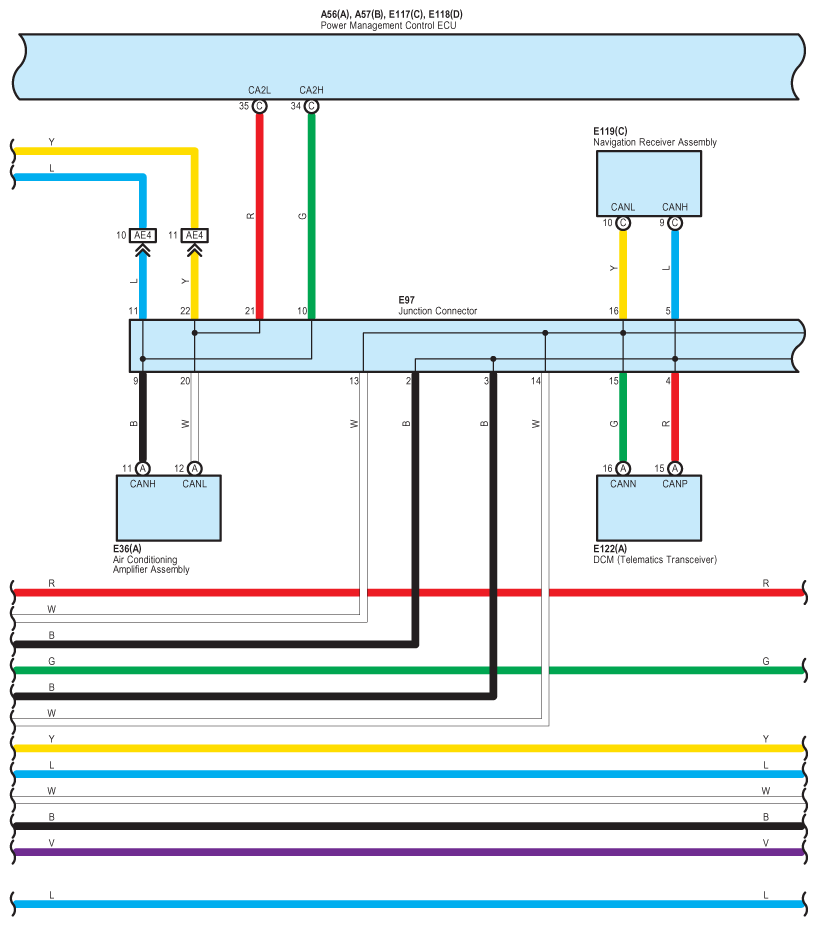

Fig 21: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (21 Of 33)

G09110512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

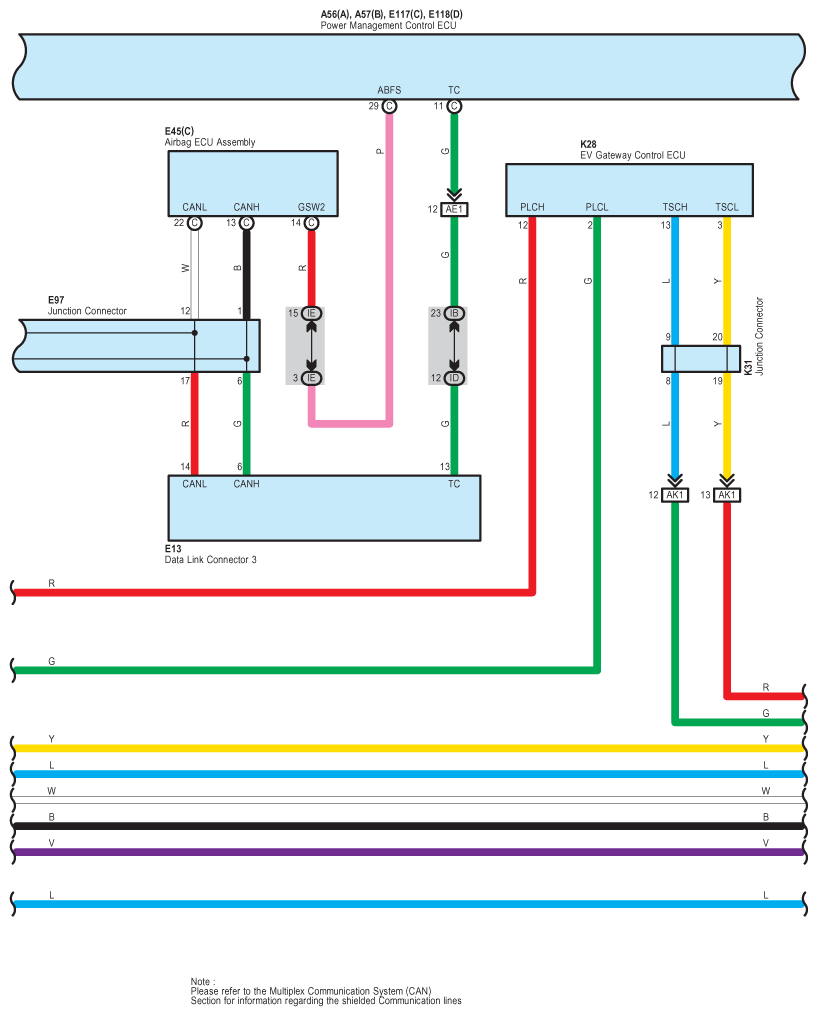

Fig 22: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (22 Of 33)

G09110513

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (23 Of 33)

G09110514

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

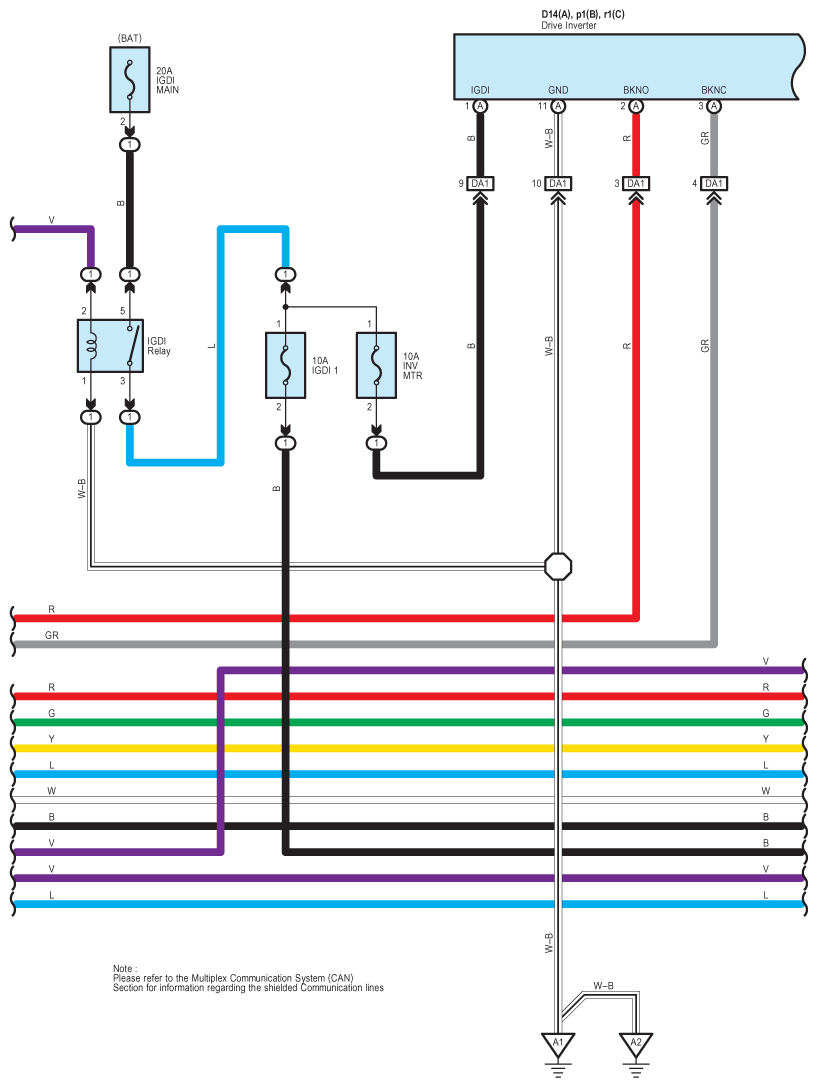

Fig 24: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (24 Of 33)

G09110515

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (25 Of 33)

G09110516

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

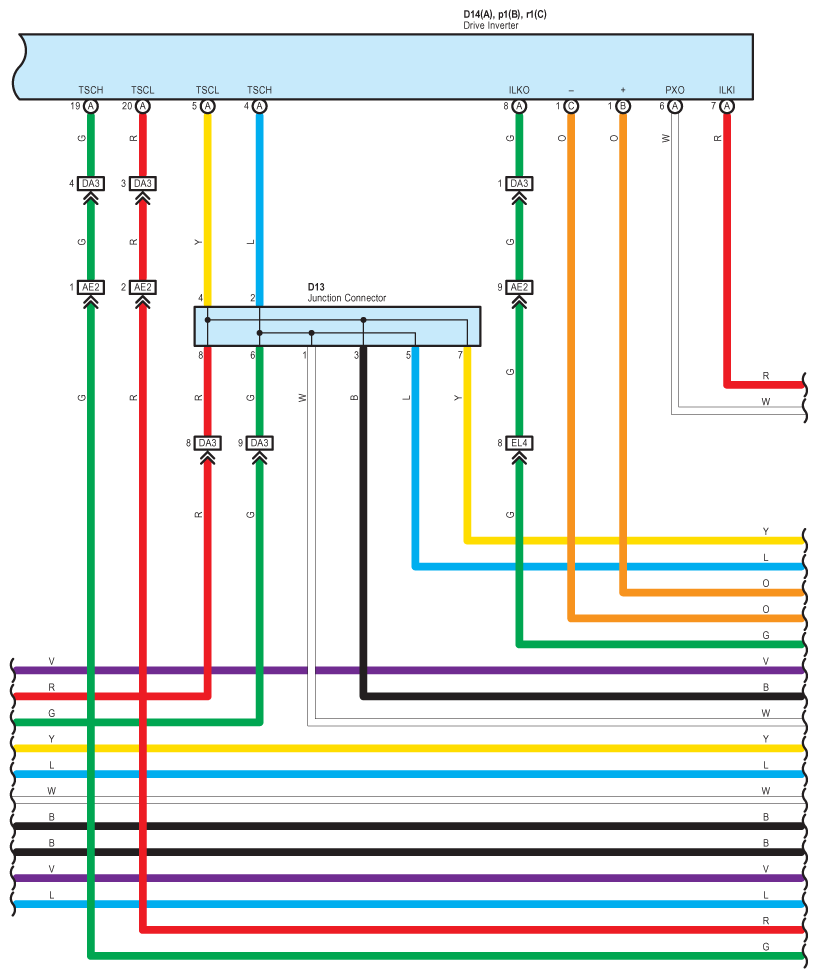

Fig 26: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (26 Of 33)

G09110517

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

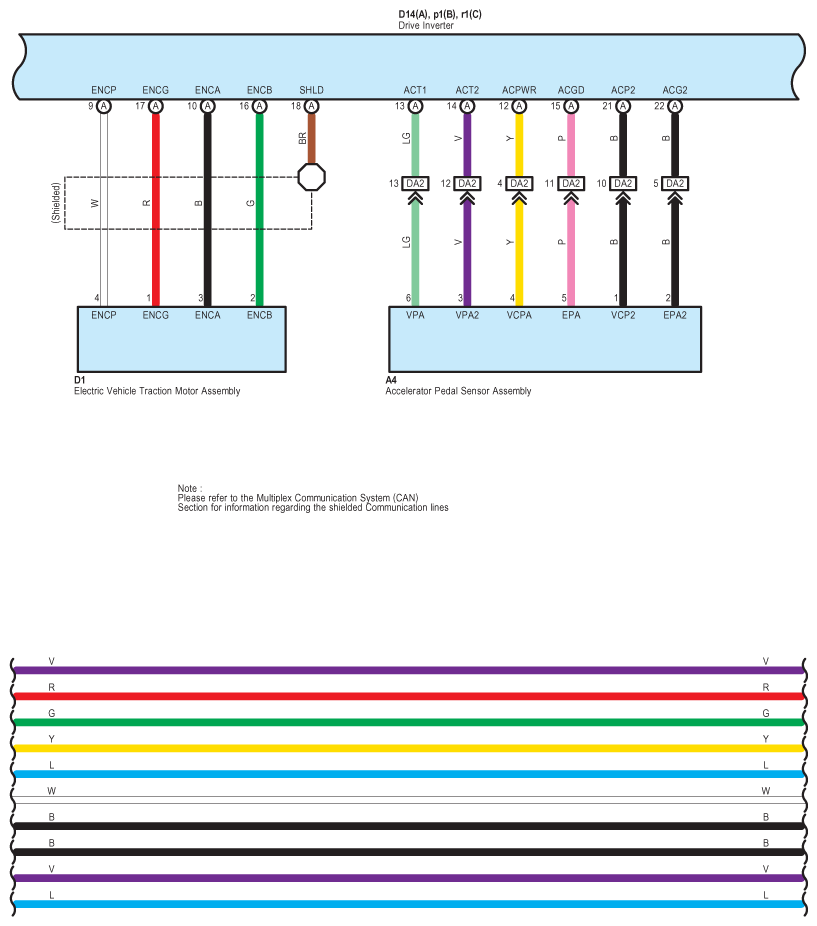

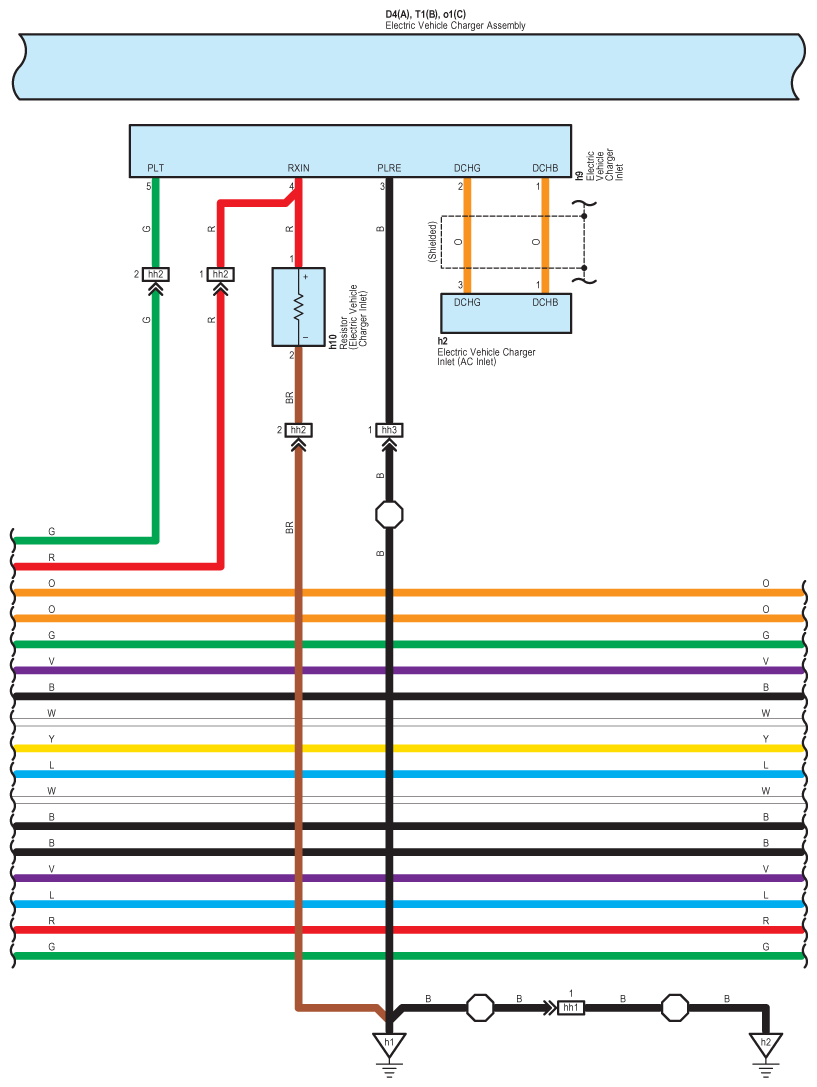

Fig 27: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (27 Of 33)

G09110518

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 28: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (28 Of 33)

G09110519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

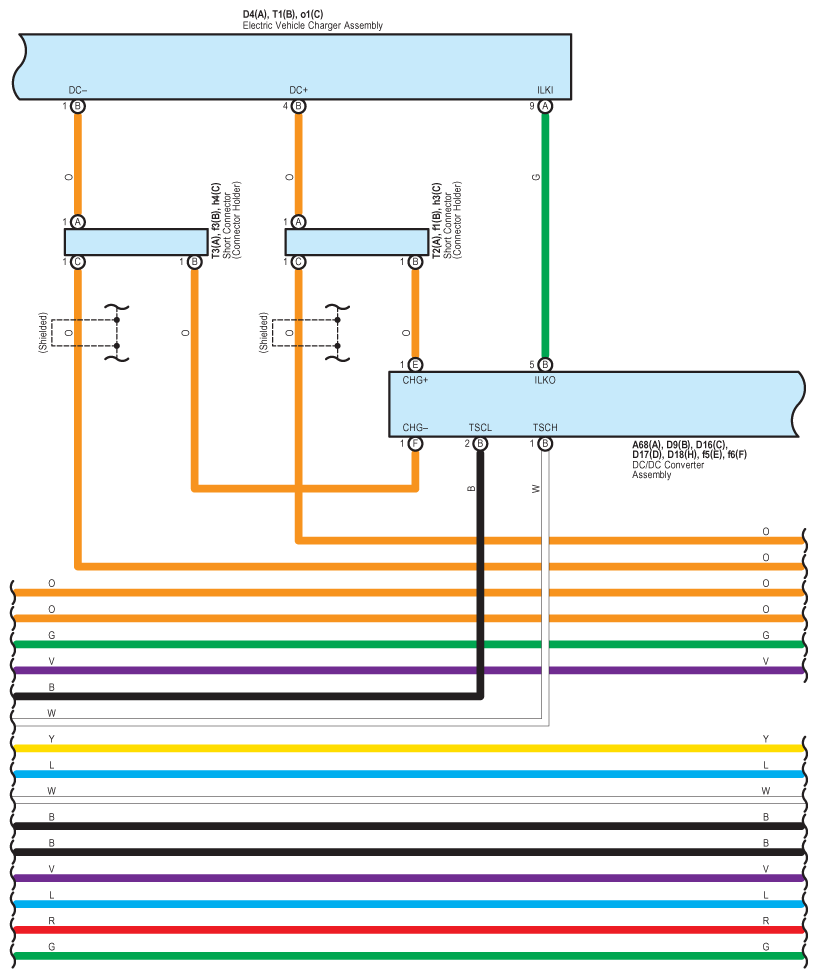

Fig 29: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (29 Of 33)

G09110520

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

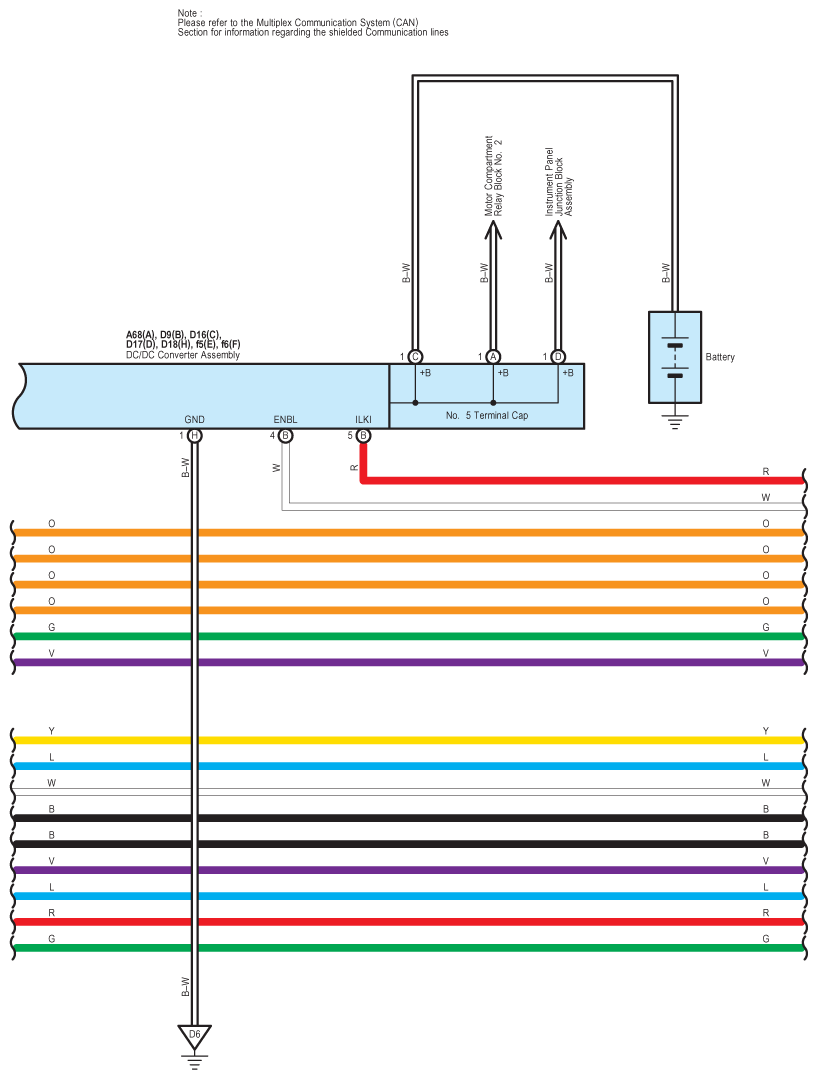

Fig 30: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (30 Of 33)

G09110521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

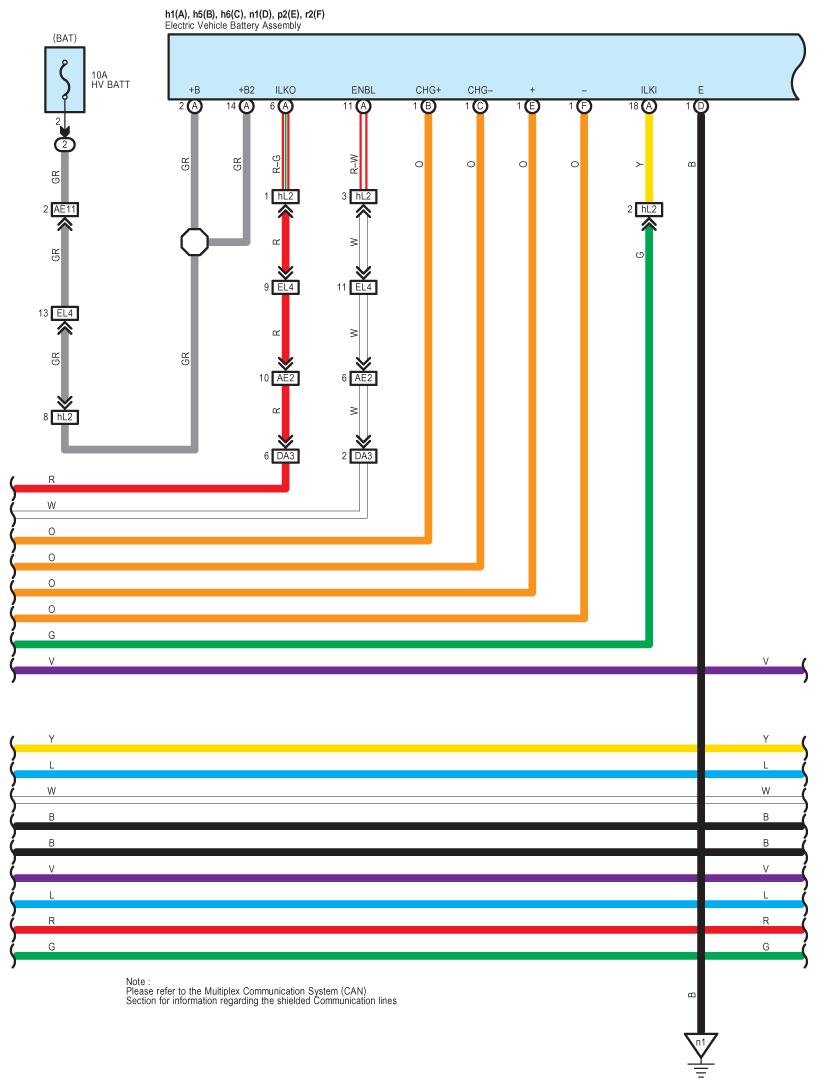

Fig 31: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (31 Of 33)

G09110522

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

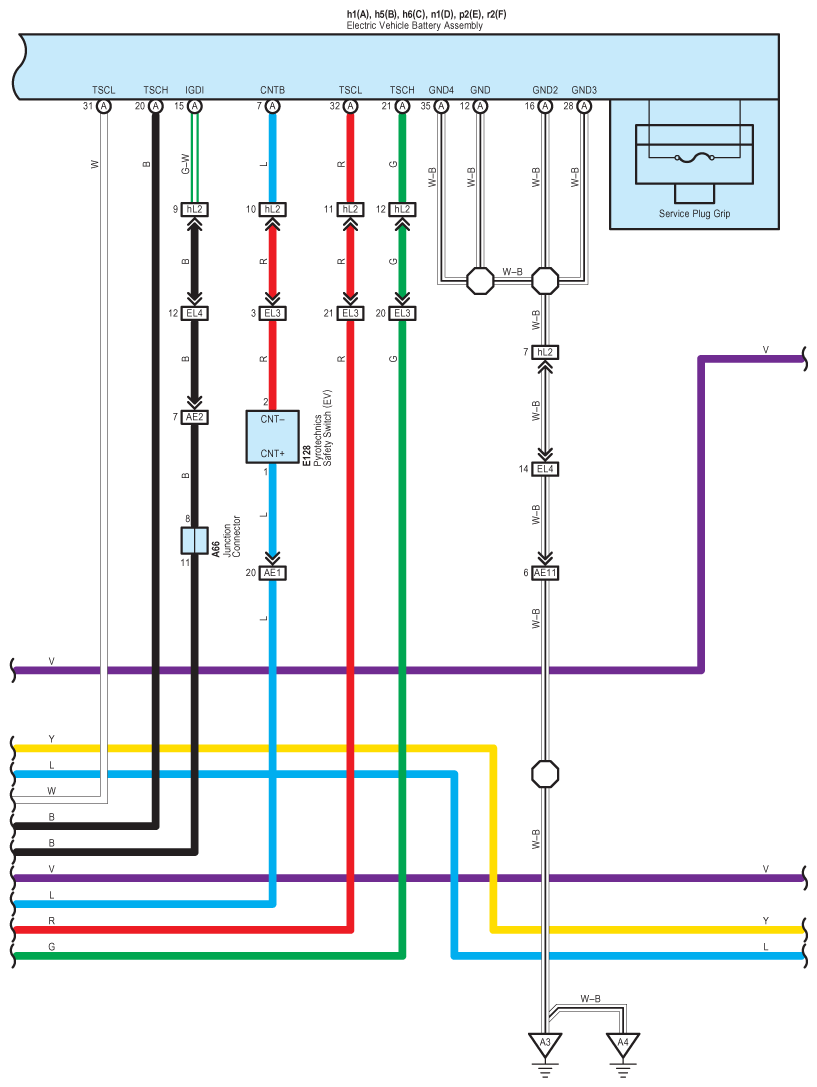

Fig 32: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (32 Of 33)

G09110523

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

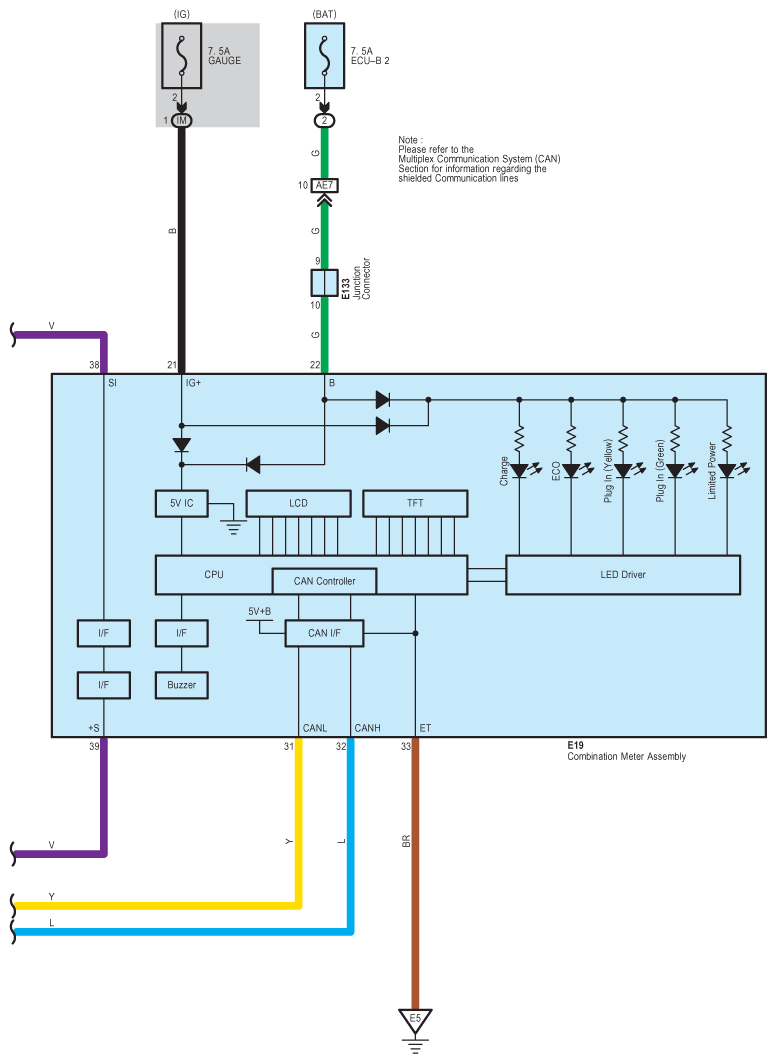

Fig 33: Cruise Control, Hybrid Control System And Shift Control Wiring Diagram (33 Of 33)

G09110524
