Safety Connect: Notes

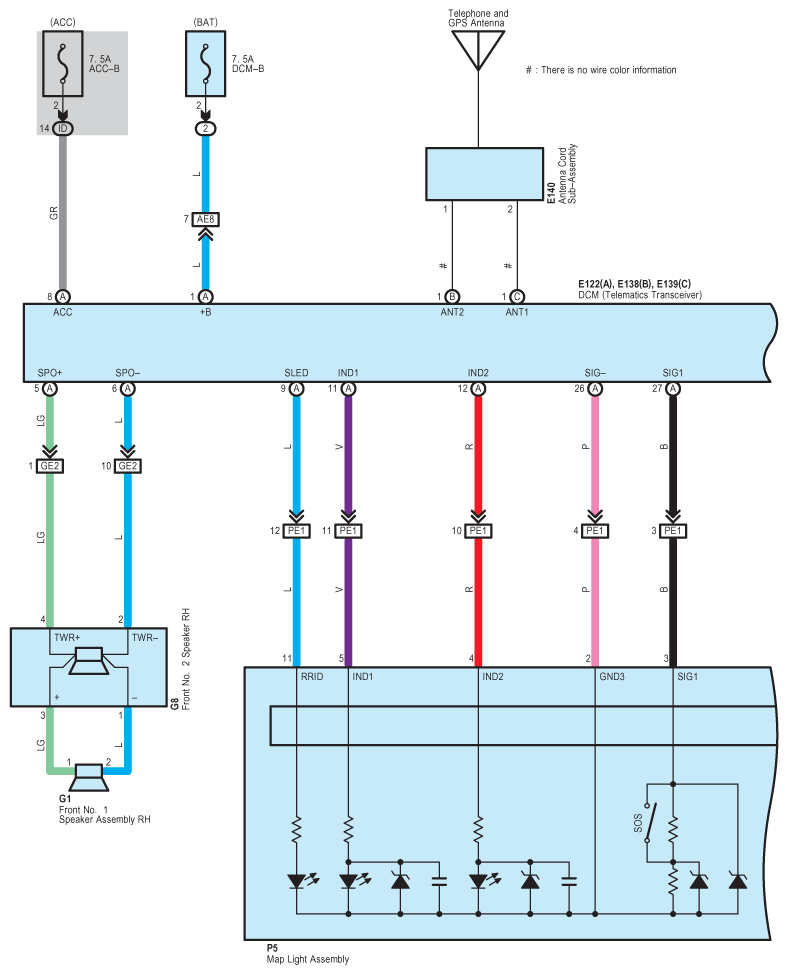

Fig 1: Safety Connect System Wiring Diagram (1 Of 4)
G09110607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

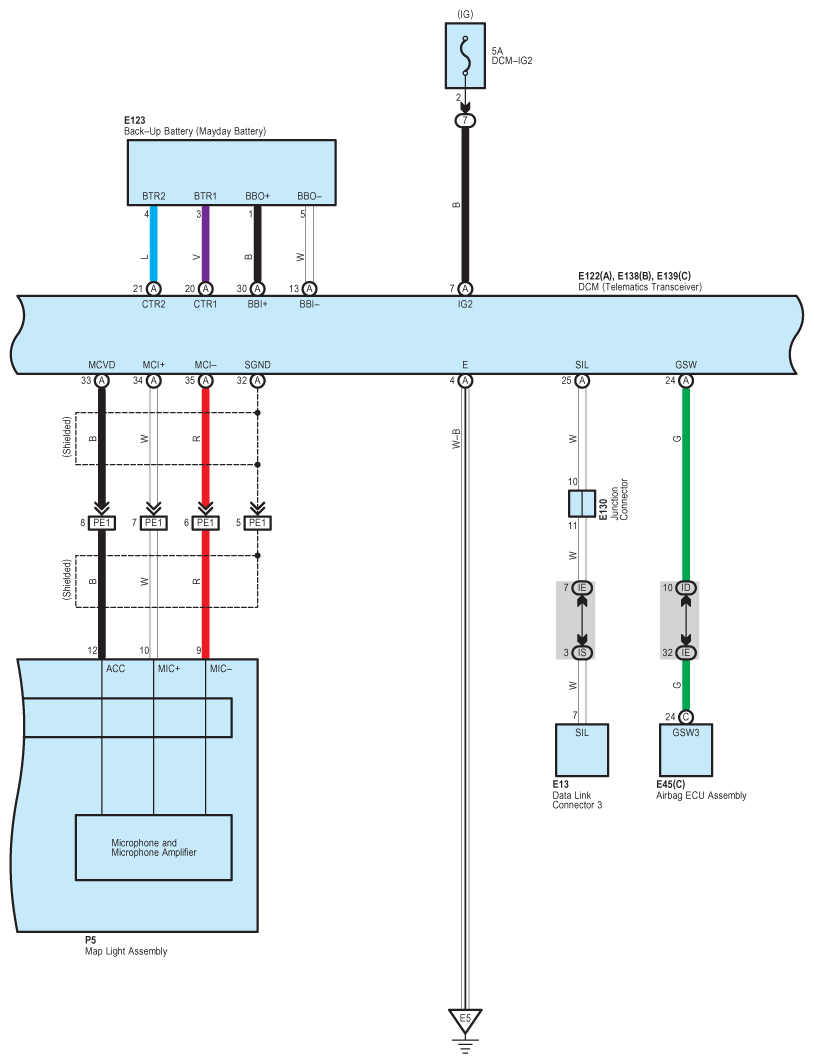

Fig 2: Safety Connect System Wiring Diagram (2 Of 4)
G09110608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

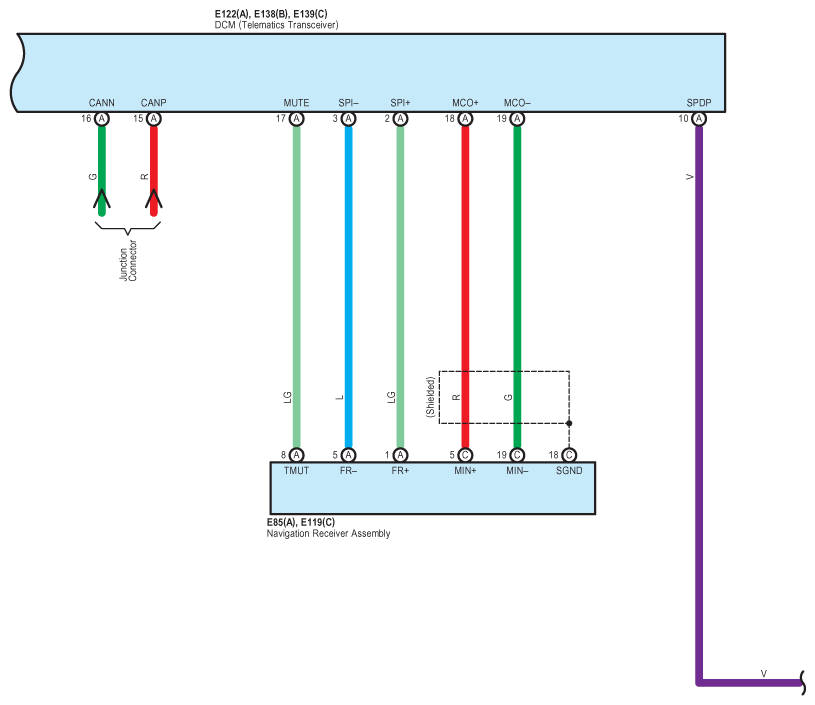

Fig 3: Safety Connect System Wiring Diagram (3 Of 4)
G09110609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

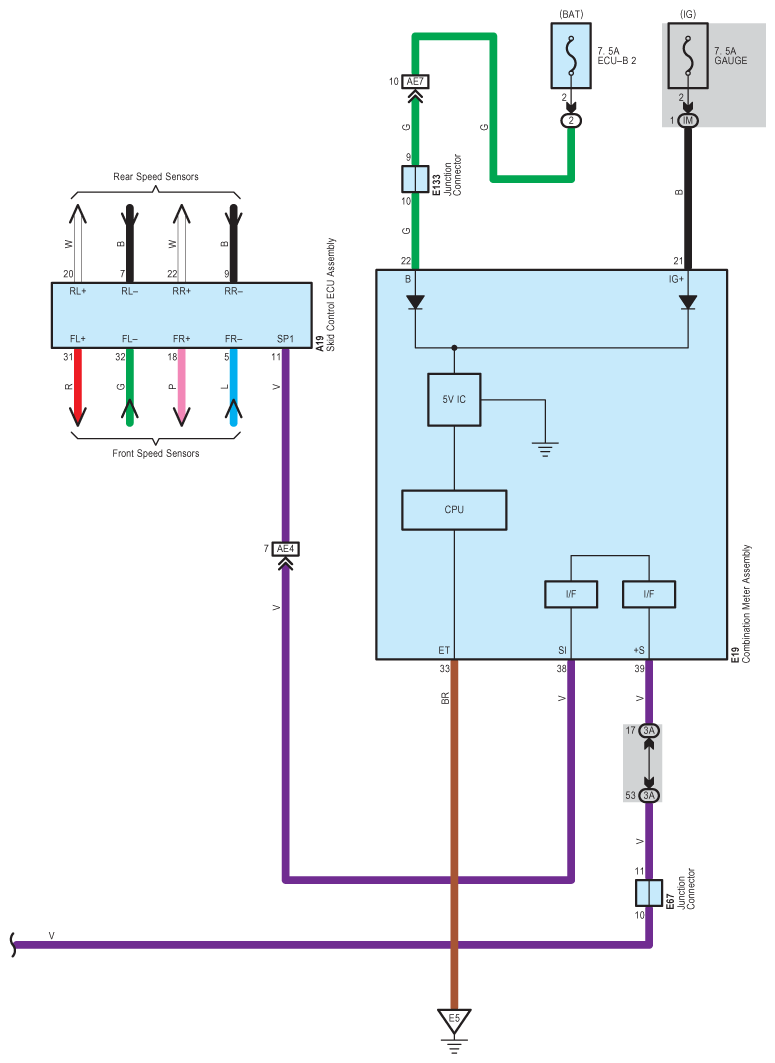

Fig 4: Safety Connect System Wiring Diagram (4 Of 4)
G09110610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
