Stop Light: Notes

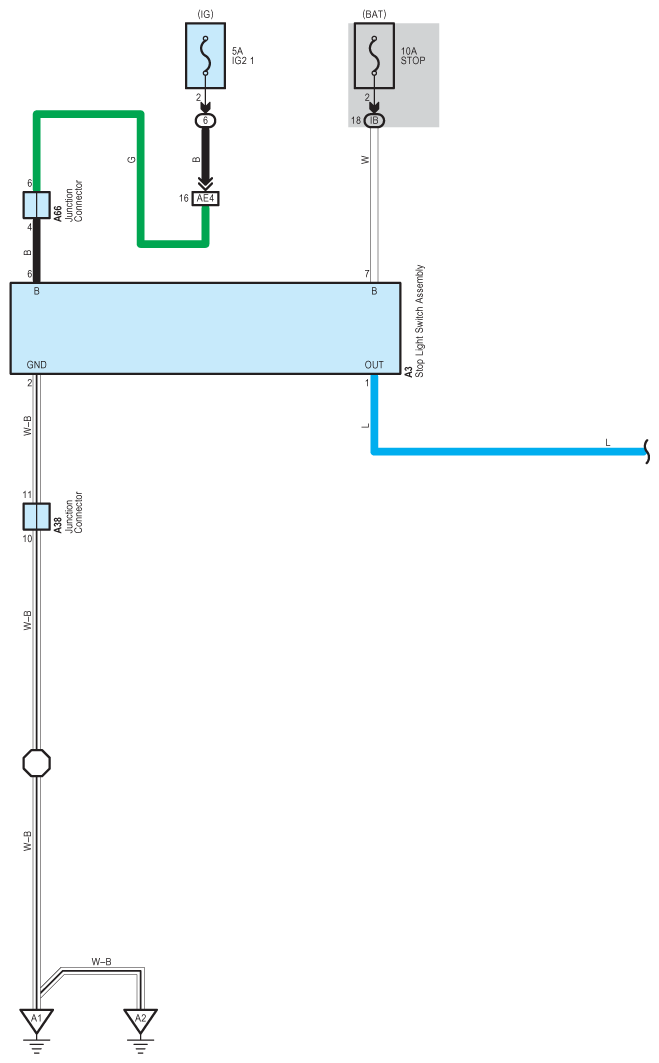

Fig 1: Stop Light Wiring Diagram (1 Of 2)
G09110549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

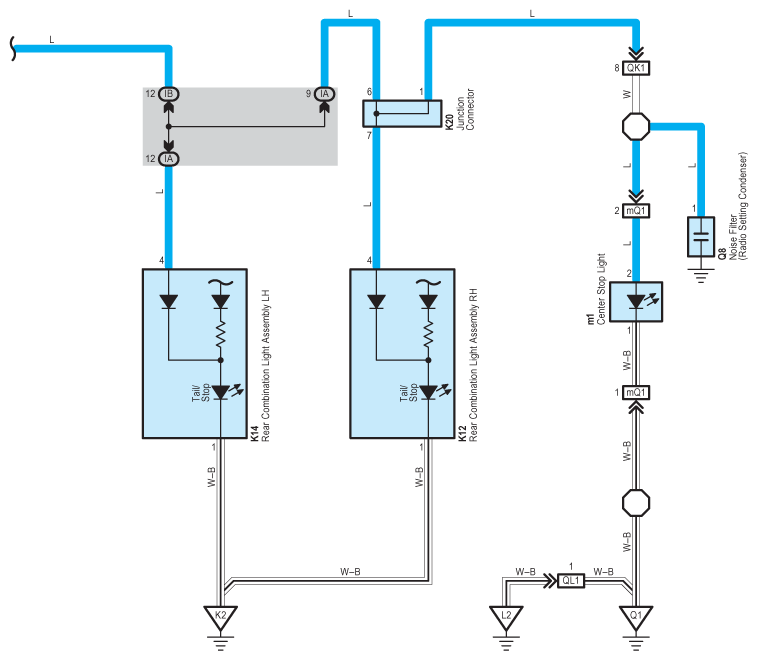

Fig 2: Stop Light Wiring Diagram (2 Of 2)
G09110550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
