Relay Block Assembly No. 5 Cowl Side Left

WARNING: This page is about a different variant/trim than selected.

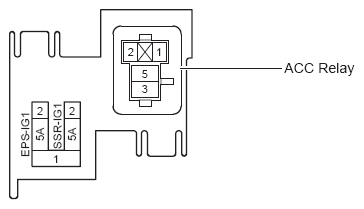

Fig 1: Relay Block Assembly No. 5 Fuse & Relay Location
G09110421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Relay Block No. 5 Relay Identification

RELAY DESCRIPTION
ACC Relay
Relay Block Assembly No. 5 Fuse Identification Legend

Fuse System
5A EPS-IG1 EPS
5A SSR-IG1 ABS, Brake Assist, Brake Override System, Hill-Start Assist Control, TRAC and VSC
