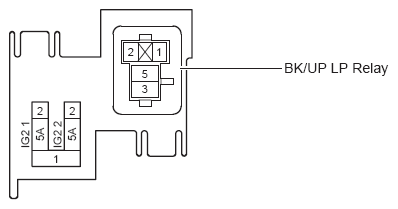

Relay Block Assembly No. 6 Cowl Side Left
WARNING: This page is about a different variant/trim than selected.
Relay Block No. 6 Relay Identification
| RELAY DESCRIPTION |
|---|
| BK/UP LP Relay |
Relay Block Assembly No. 6 Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 5A | IG2 1 | ABS, Brake Assist, Brake Override System, Hill-Start Assist Control, TRAC and VSC |
| Cruise Control, Hybrid Control System and Shift Control | ||
| Immobilizer System, Smart Key System, Starting, Steering Lock and Wireless Door Lock Control | ||
| Stop Light | ||
| Vehicle Proximity Notification System | ||
| 5A | IG2 2 | Cruise Control, Hybrid Control System and Shift Control |
| Immobilizer System, Smart Key System, Starting, Steering Lock and Wireless Door Lock Control | ||
