Relay Block Assembly No. 7 Cowl Side Left
WARNING: This page is about a different variant/trim than selected.

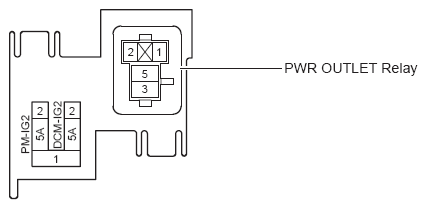

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 Relay Block No. 7 Relay Identification
| RELAY DESCRIPTION |
| PWR Outlet Relay |
Relay Block Assembly No. 7 Fuse Identification Legend
| Fuse |
System |
| 5A |
DCM-IG2 |
Safety Connect |
| 5A |
PM-IG2 |
Cruise Control, Hybrid Control System and Shift Control |
