Id Code Box: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL ID CODE BOX
1. Install the ID code box with the bolt.

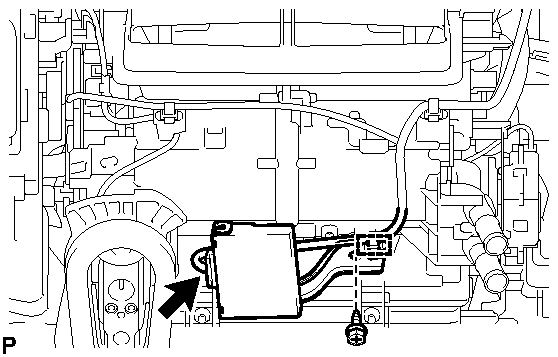

  Fig 1: Identifying Bolt And Transponder Key ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the clamp.
3. Connect the connector.
INSTALL AIR CONDITIONER UNIT ASSEMBLY
1. Install the air conditioner unit assembly. Refer to INSTALLATION .
CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REGISTER ECU CODE
1. Register the ECU code. Refer to REGISTRATION .
