PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work. Refer to PRECAUTION .
DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL . Refer to REMOVAL - Step 6
REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL . Refer to REMOVAL - Step 7
REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET
1. Remove the 4 bolts.

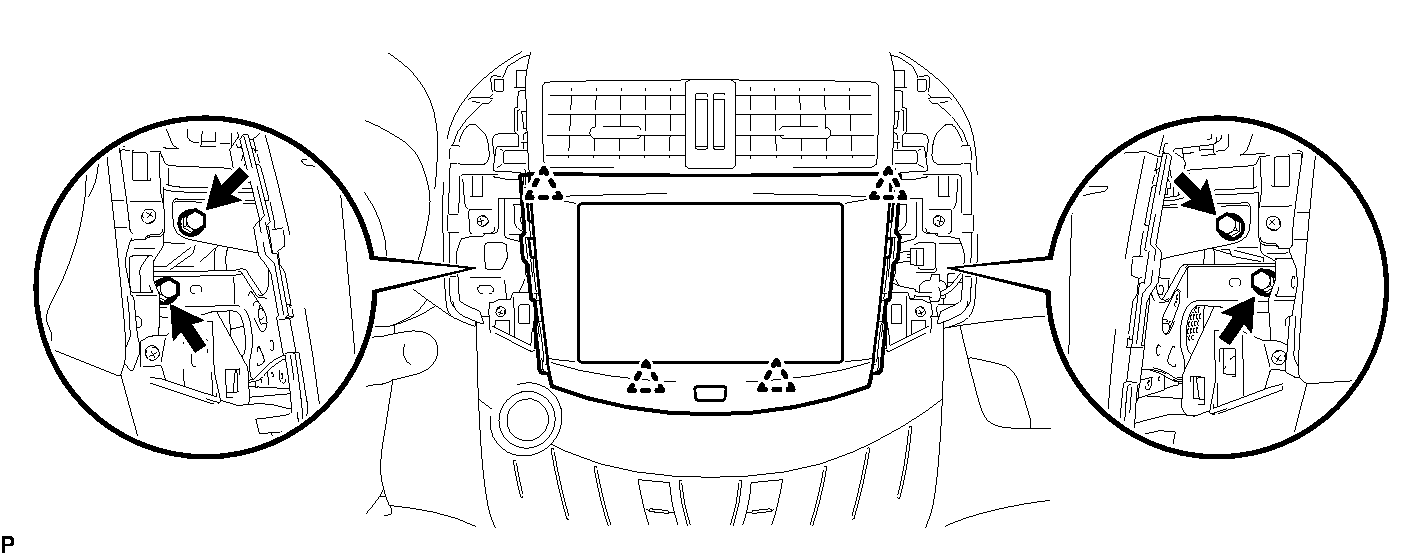

  Fig 1: Identifying Navigation Receiver Bracket Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull the navigation receiver to detach the 4 clips on the backside of the navigation receiver.
3. Disconnect all the connectors and remove the navigation receiver.
REMOVE NO. 1 RADIO BRACKET
1. Remove the 3 screws and No. 1 radio bracket from the navigation receiver.

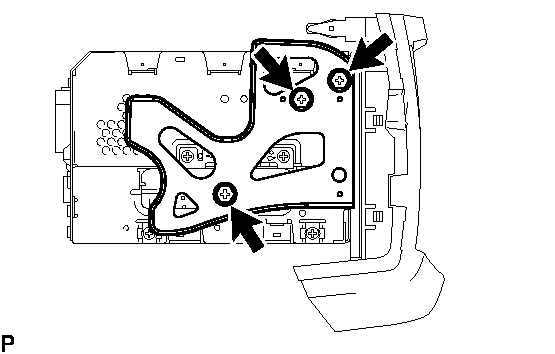

  Fig 2: Identifying No. 1 Radio Bracket Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 RADIO BRACKET
1. Remove the 3 screws and No. 2 radio bracket from the navigation receiver.

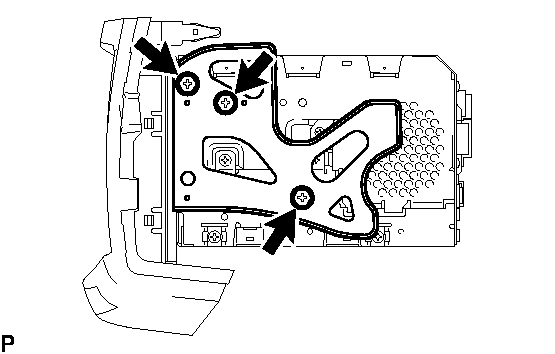

  Fig 3: Identifying No. 2 Radio Bracket Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
