Power Window Control System (W/ Jam Protection) - Diagnostics - Introduction - (Except Hybrid)
>>
POWER WINDOW CONTROL SYSTEM (W/ Jam Protection Function)
>>
System Diagram [12/2012 - ]
>>
System Diagram [12/2012 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [12/2012 - ]

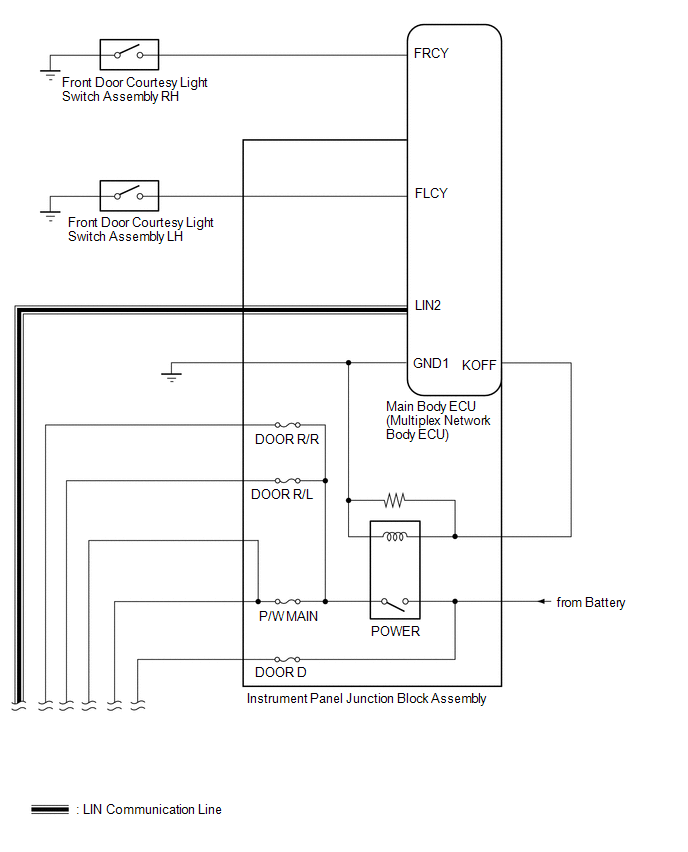

Fig 1: Power Window Control System Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

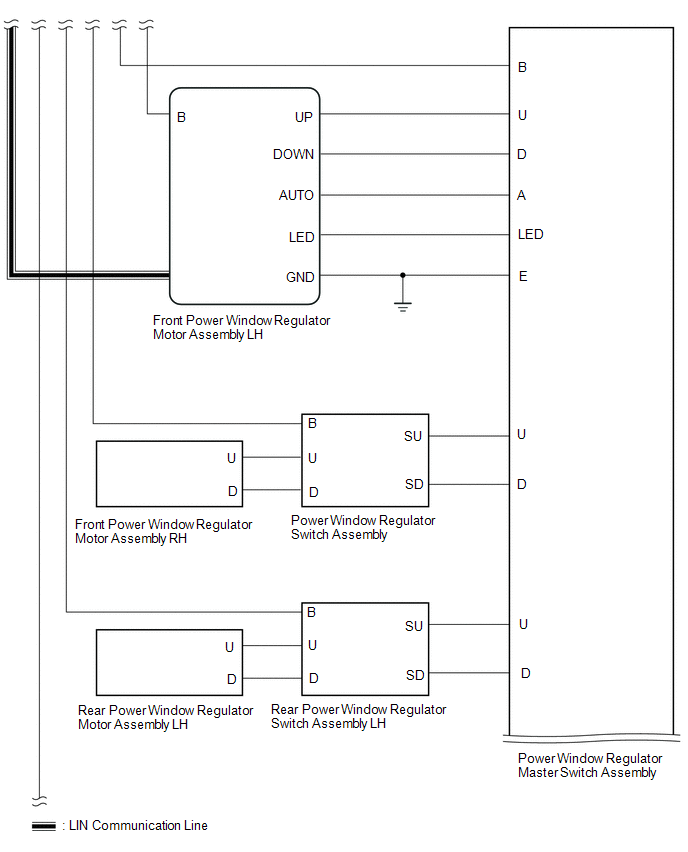

Fig 2: Power Window Control System Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

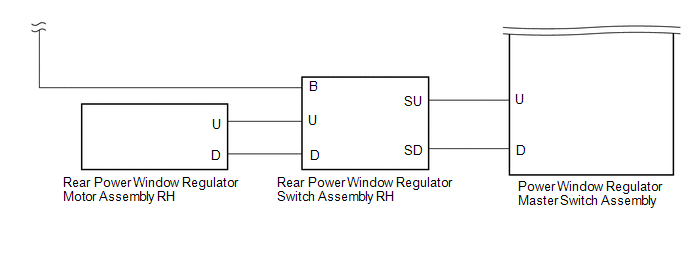

Fig 3: Power Window Control System Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE
Transmitting ECU
Receiving ECU
Signal
Communication Method
Main body ECU (multiplex network body ECU)
Front power window regulator motor assembly LH
Power window operation permission signal
LIN
