Operation Check

HINT:

Before performing the window lock switch operation check, make sure that the window lock switch is off (the switch is not pushed in).

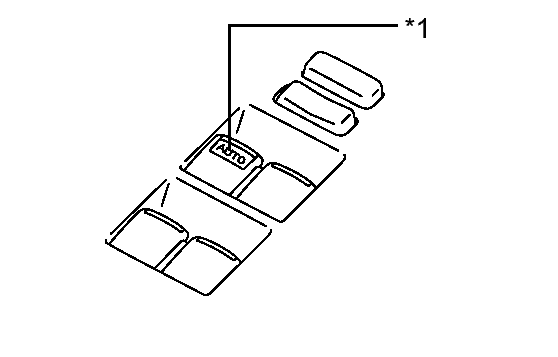

Fig 1: Identifying Window Lock Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the front passenger and rear windows cannot be operated when the window lock switch of the power window regulator master switch assembly is pushed in.

   OK

   Front passenger and rear windows are disabled.

2. Check that the front passenger and rear windows can be operated when the window lock switch of the power window regulator master switch assembly is pushed in again.

   OK

   Front passenger and rear windows operate normally.

1. Check that the driver side power window operates as follows:
   OK



   Condition	Power Window Regulator Master Switch	Switch Operation	Power Window Operation
   Power switch on (IG)	Driver side	Pulled halfway up	Up (Closes)
   		Pushed halfway down	Down (Opens)

2. Check that the front passenger side window and rear power windows operate as follows:
   OK



   Condition	Power Window Regulator Switch	Switch Operation	Power Window Operation
   Power switch on (IG) Window lock switch off	Front passenger side	Pulled halfway up	Up (Closes)
   		Pushed halfway down	Down (Opens)
   	Rear LH side	Pulled halfway up	Up (Closes)
   		Pushed halfway down	Down (Opens)
   	Rear RH side	Pulled halfway up	Up (Closes)
   		Pushed halfway down	Down (Opens)

1. Check that the driver side power window operates as follows:
   OK



   Condition	Power Window Regulator Master Switch	Switch Operation	Power Window Operation
   Power switch on (IG)	Driver side	Pulled up (One touch operation)	Auto up (Closes)
   		Pushed down (One touch operation)	Auto down (Opens)

1. Check that the front passenger side window and rear power windows operate as follows:
   OK



   Condition	Power Window Regulator Master Switch	Switch Operation	Power Window Operation
   Power switch on (IG) Window lock switch off	Front passenger side	Pulled halfway up	Up (Closes)
   		Pushed halfway down	Down (Opens)
   	Rear LH side	Pulled halfway up	Up (Closes)
   		Pushed halfway down	Down (Opens)
   	Rear RH side	Pulled halfway up	Up (Closes)
   		Pushed halfway down	Down (Opens)

1. Check that all the power windows can be operated with the power window regulator master switch assembly and power window regulator switch assemblies (for front passenger door, rear LH and RH doors) after the power switch is turned off.

   HINT:

   If the window lock switch is on, the power windows cannot be operated at the same time as the driver side power window. Therefore, turn the window lock switch off before checking the window operation.

2. Check that the key-off operation function does not operate after the driver side or front passenger door is opened immediately.

   HINT:

   If the driver door or front passenger door is opened during automatic window operation while the key-off operation function is on, the window will stop operating.

3. Check that all the power windows cannot be operated after more than approximately 45 seconds have elapsed since the power switch was turned off.

1. Check the basic function.
   WARNING:

   • The jam protection function is operative during both the auto up and manual up operation.
   • Do not put your fingers between the door frame and door glass to check functions. Also, prevent any parts of your body from being caught during inspection.

   HINT:

   The jam protection function operates during both the auto up and manual up operations while the power switch is on (IG), and also for 45 seconds after the power switch was turned off.

   1. Fully open the driver side power window.
   2. Set a check jig wrapped with a piece of cloth near the window fully closed position.
      Fig 2: Checking Jam Protection Function

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	Check Jig
      *2	Cloth

   3. Operate the auto up or manual up function to check that the power window goes down before the check jig is caught between the window and door frame, and stops when the opening reaches approximately 200 mm (7.87 in.).

      HINT:

      The power window moves down approximately 50 mm (1.97 in.). However, when the opening does not reach 200 mm (7.87 in.), the power window continues to go down until the opening reaches 200 mm (7.87 in.) or until approximately 5 seconds have elapsed.

   4. While the power window is moving down, check that the door glass cannot be moved up even when the power window regulator master switch is used.

1. Check the LED illumination (power window regulator master switch assembly).
   Fig 3: Identifying Power Window Regulator Master Switch LED

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1

   LED

   1. Check that the LED located on the power window regulator master switch assembly illuminates when the power switch is turned on (IG).
