Rear Power Window LH Auto Up / Down Function does not Operate with Rear Power Window Switch LH: Wiring Diagram

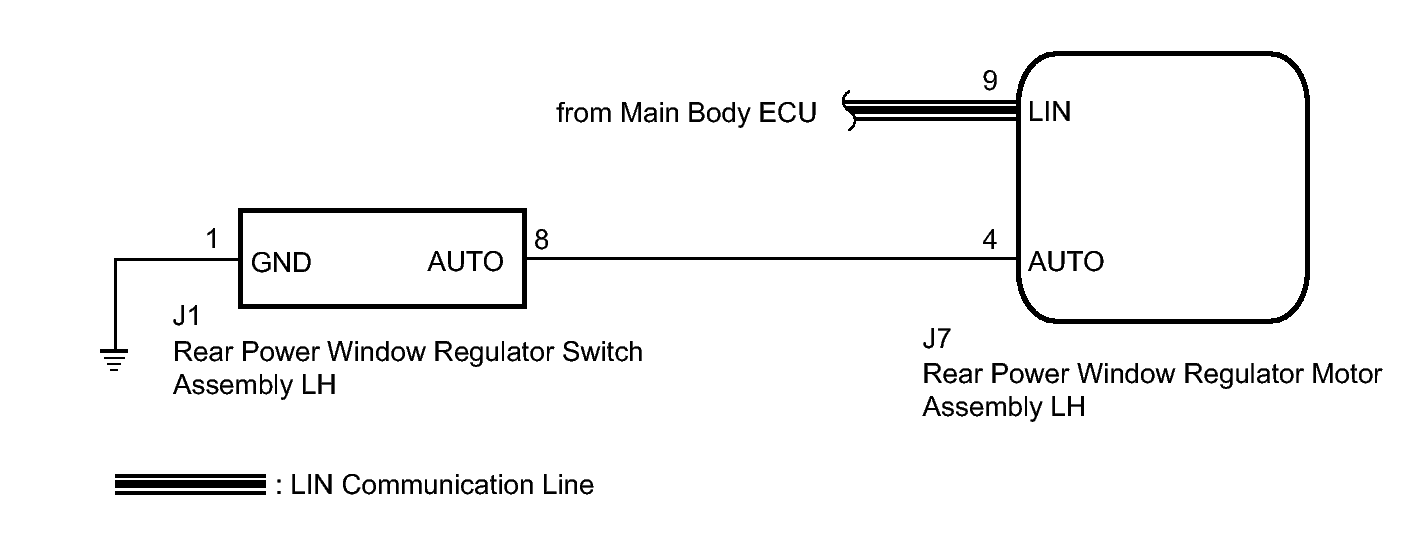

Fig 1: Rear Power Window Regulator Motor Assembly LH - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
