Power Source Circuit: Procedure

CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - BATTERY AND BODY GROUND)

Disconnect the D78 windshield wiper relay assembly connector.

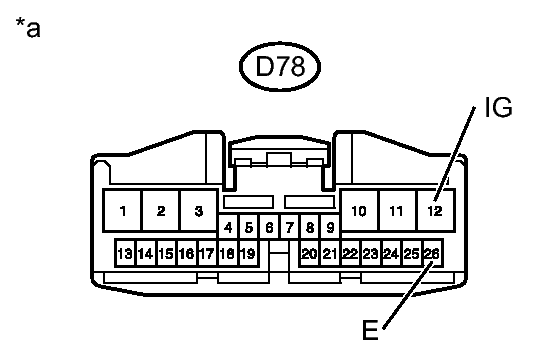

Fig 1: Checking D78 Windshield Wiper Relay Assembly Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the voltage according to the value(s) in the table below.

Standard Voltage

Tester Connection	Switch Condition	Specified Condition
D78-12 (IG) - Body ground	Ignition switch ON	11 to 14 V

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
D78-26 (E) - Body ground	Always	Below 1 Ω

TEXT IN ILLUSTRATION

*a	Front view of wire harness connector (to Windshield Wiper Relay Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step 2

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
